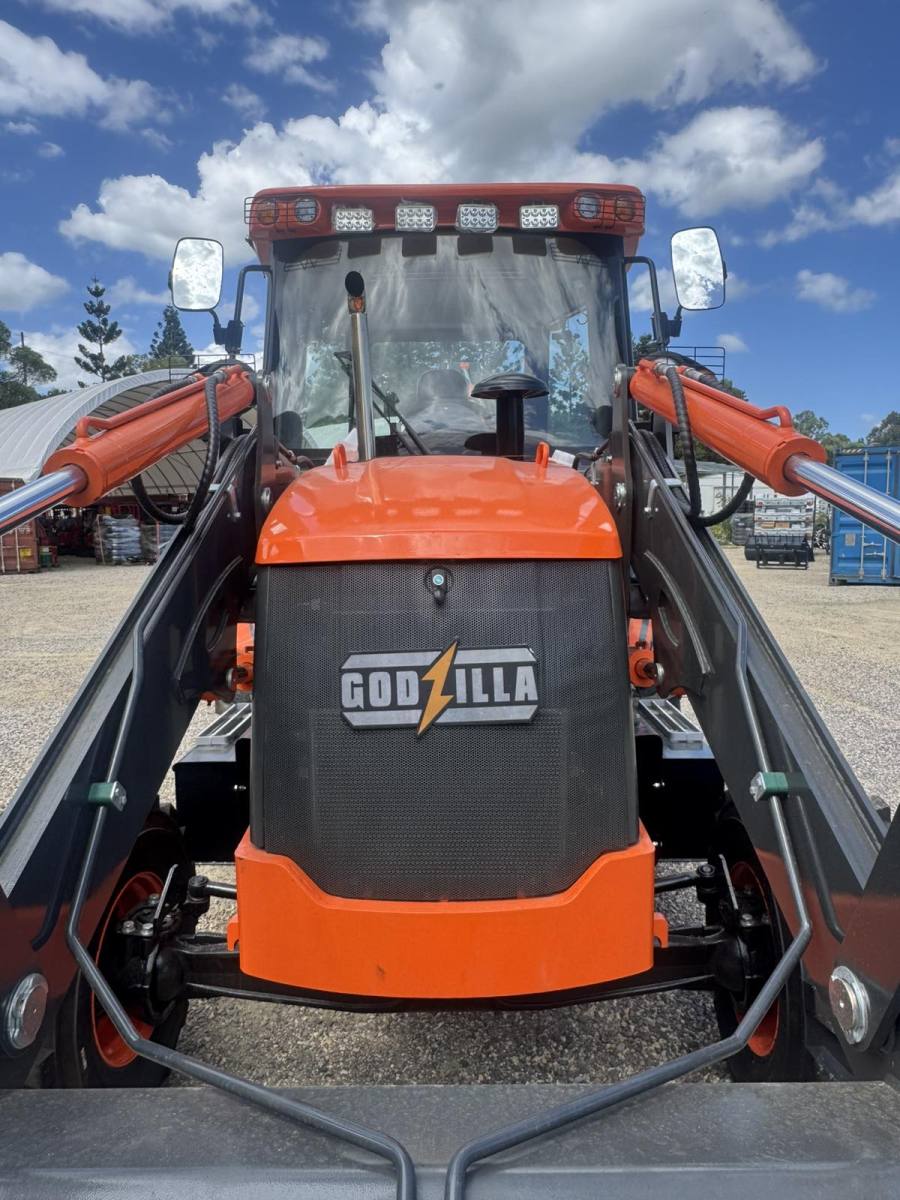

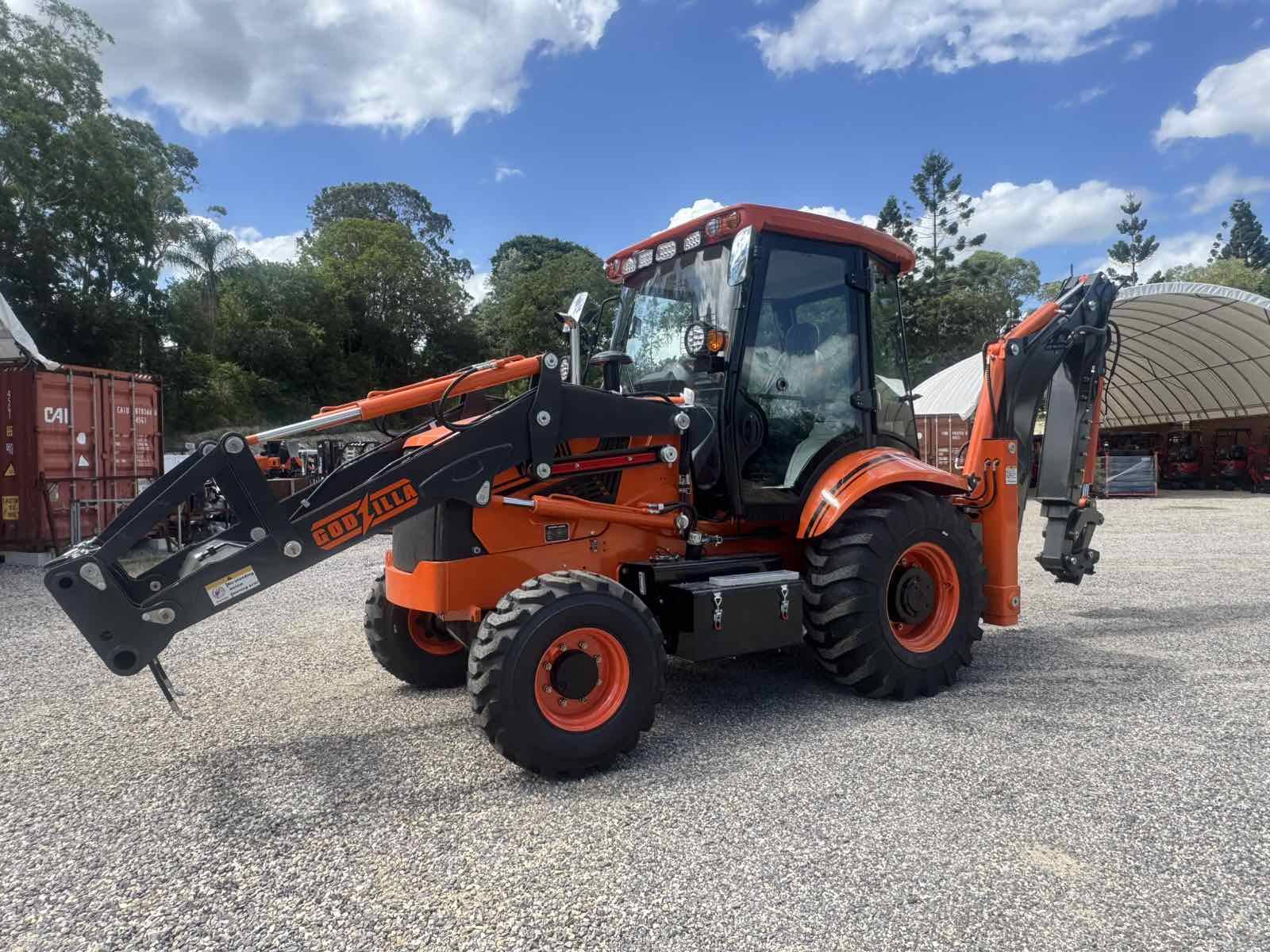

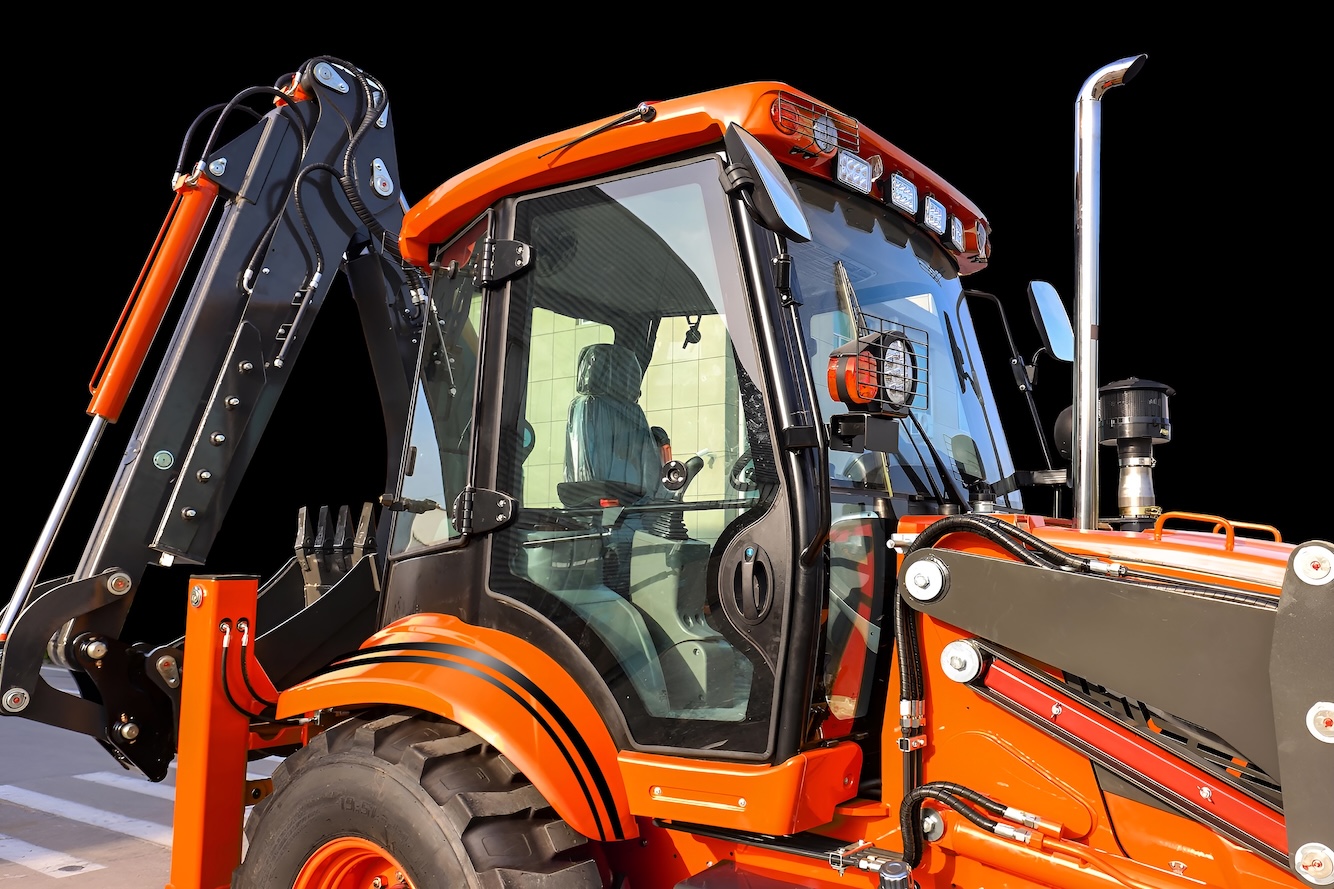

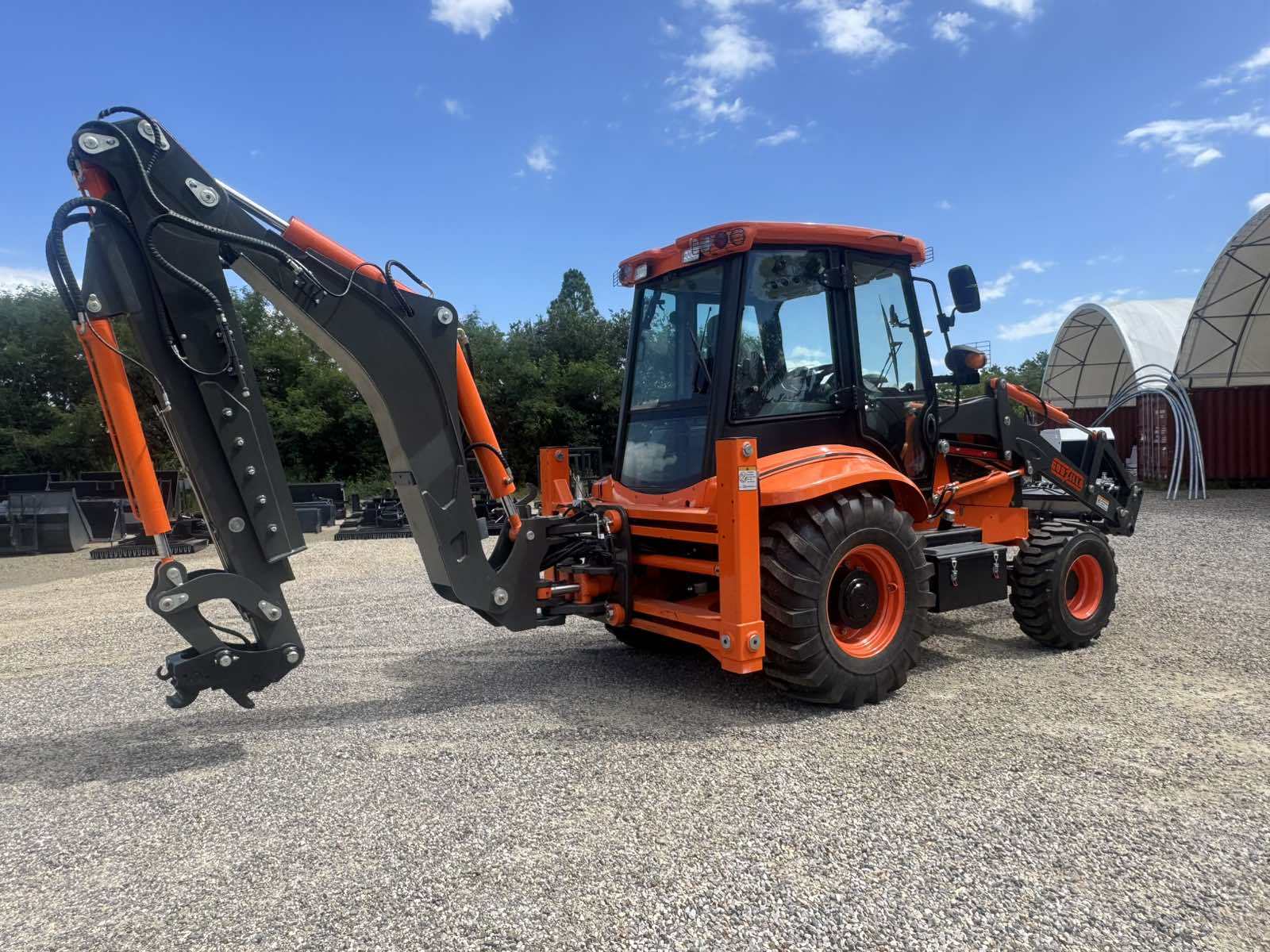

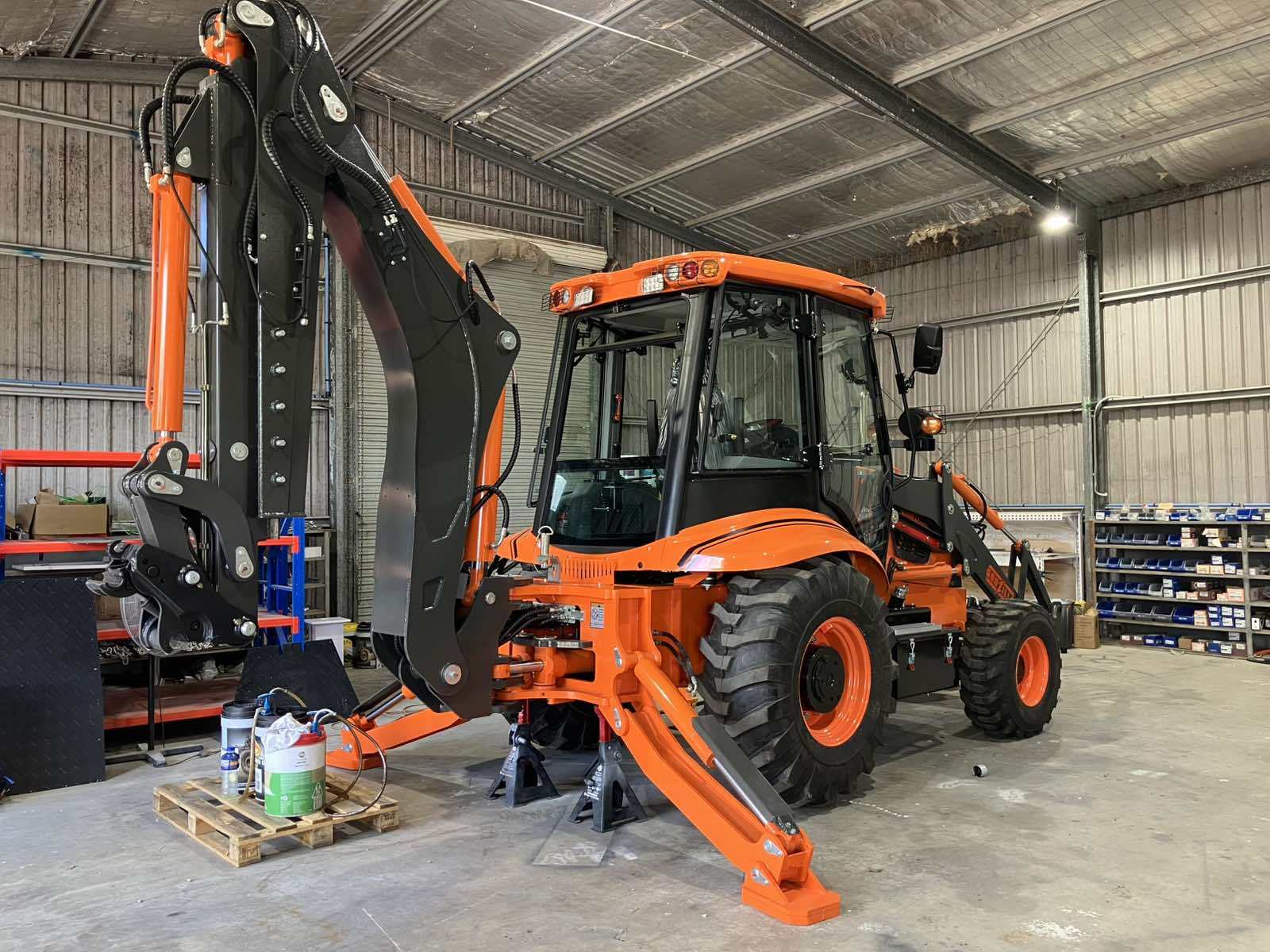

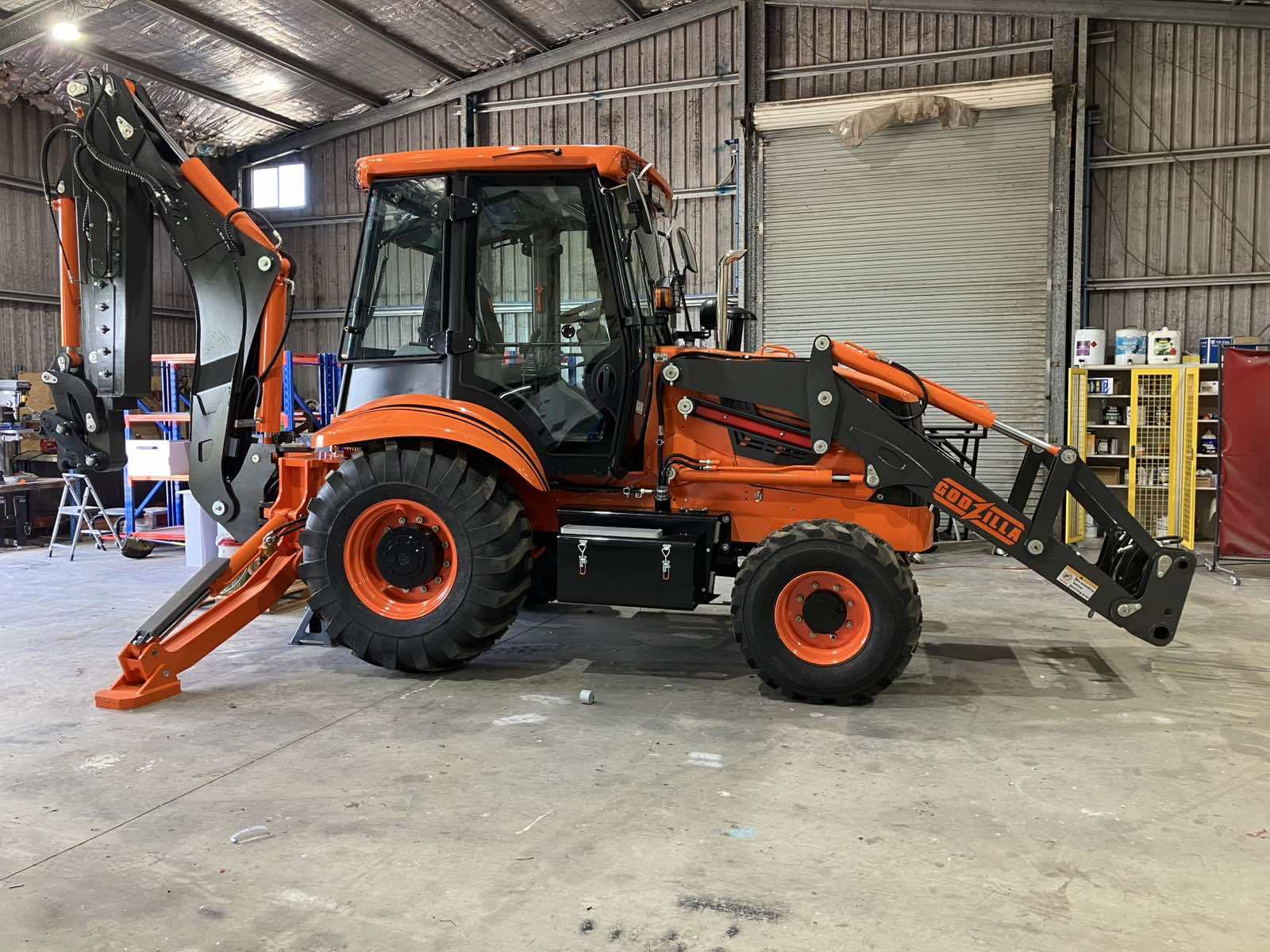

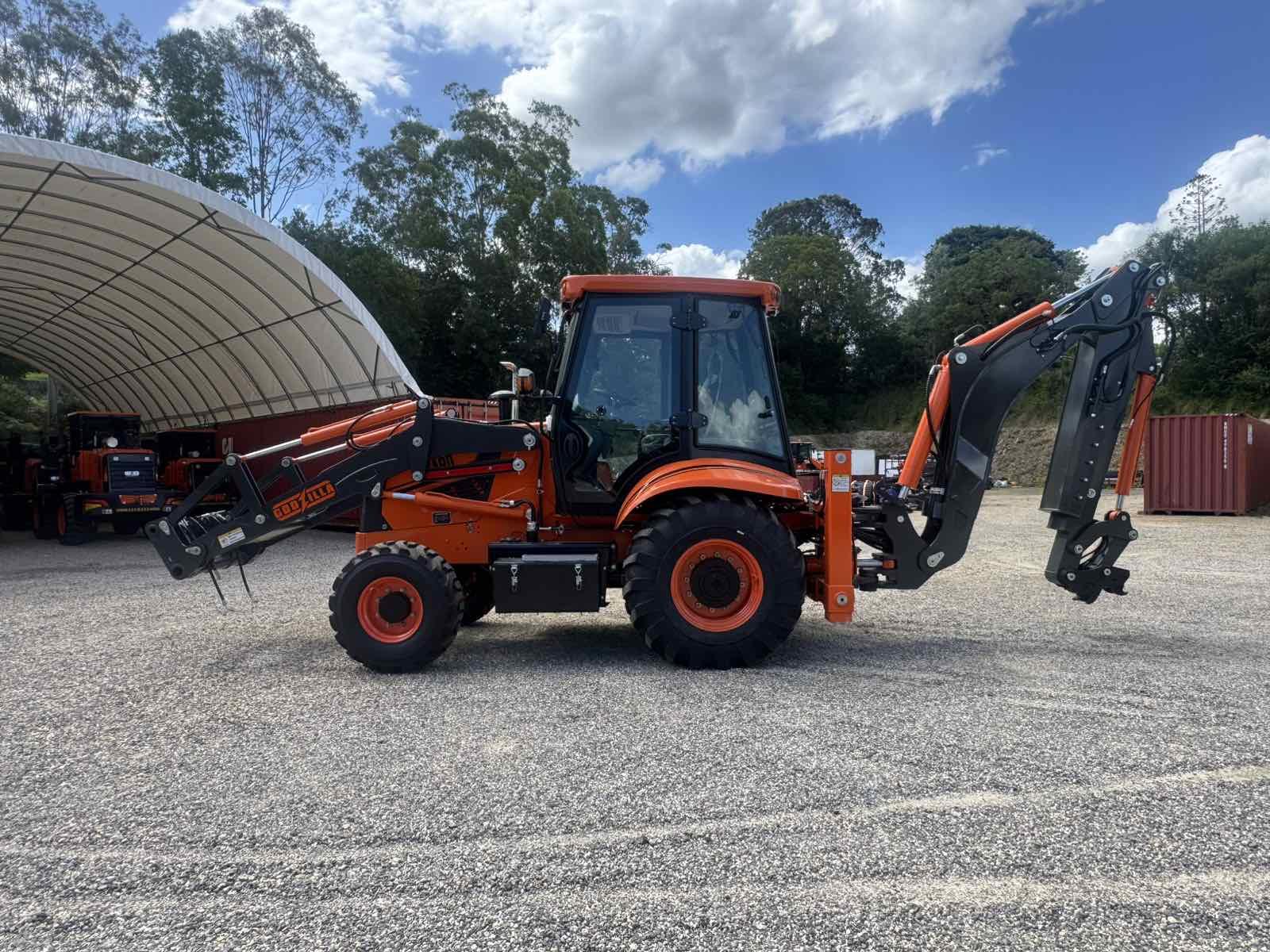

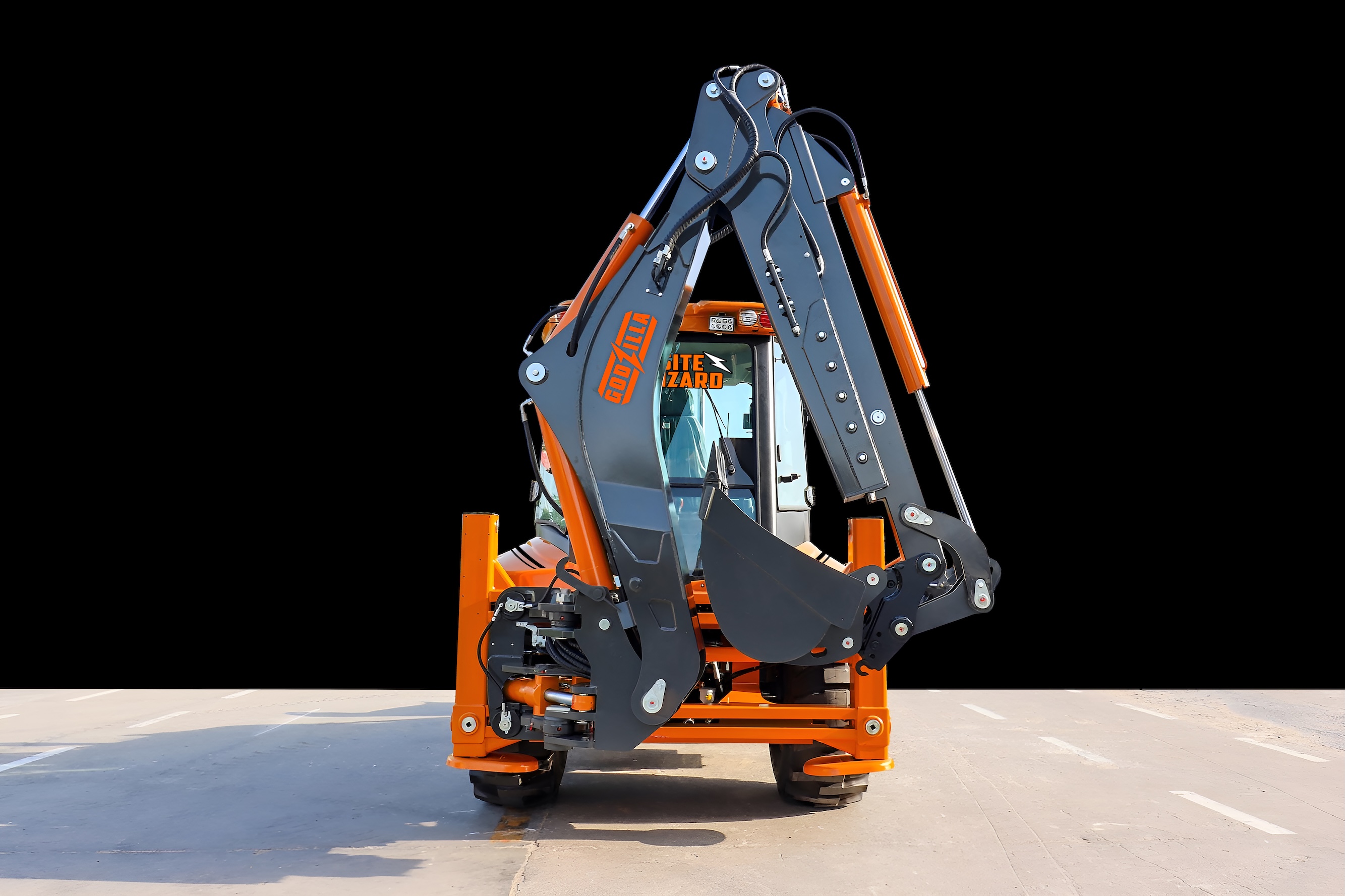

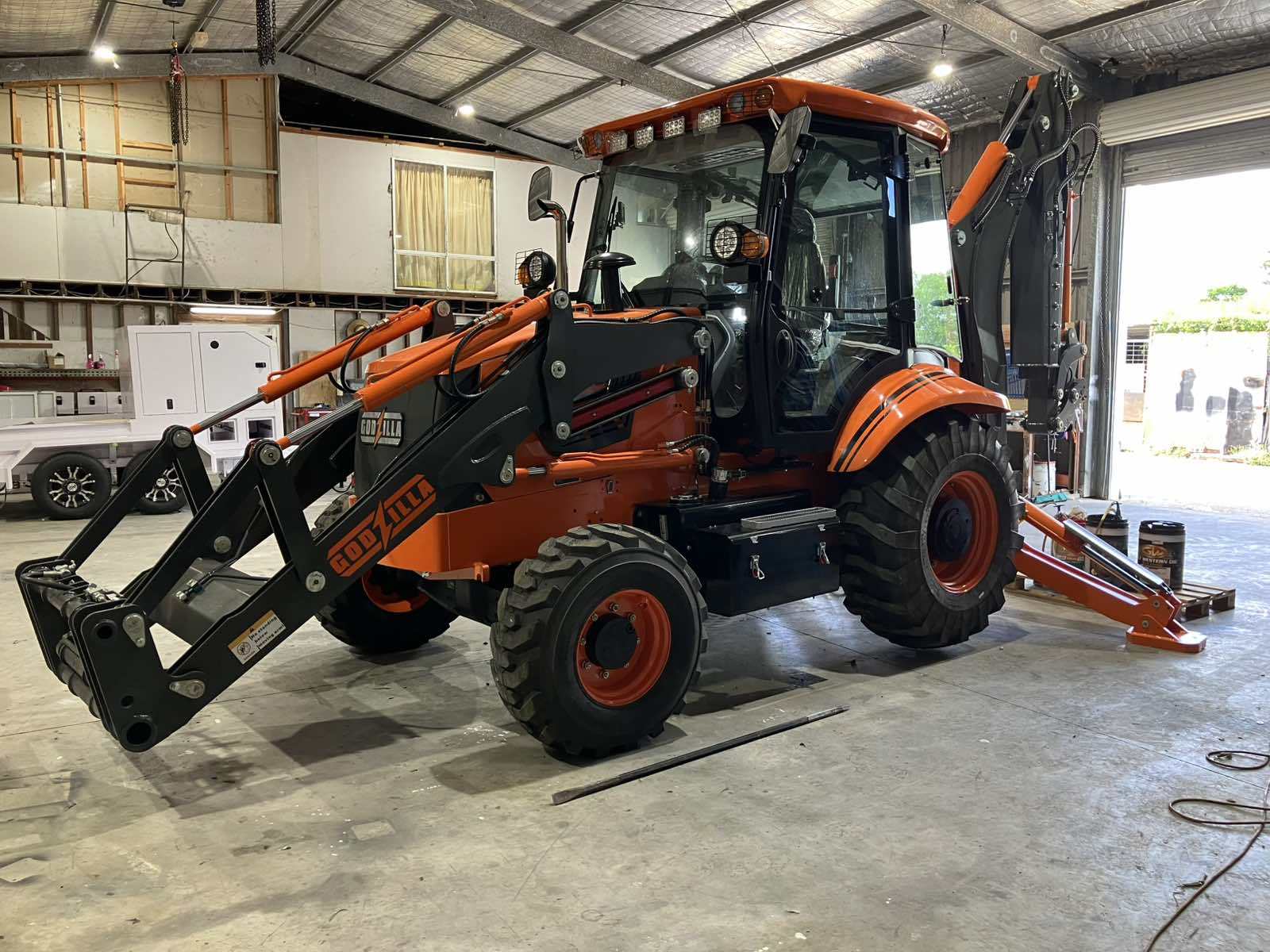

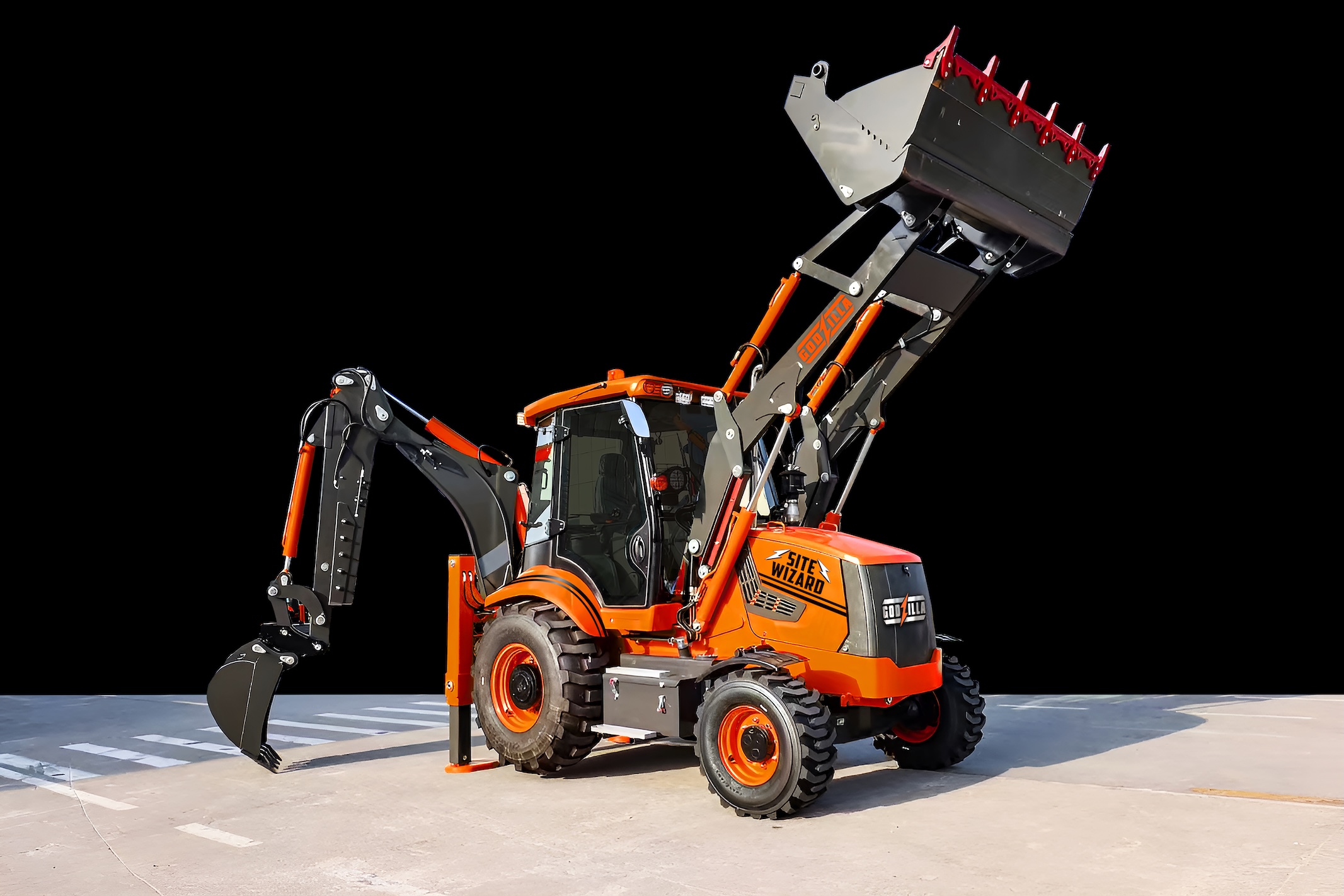

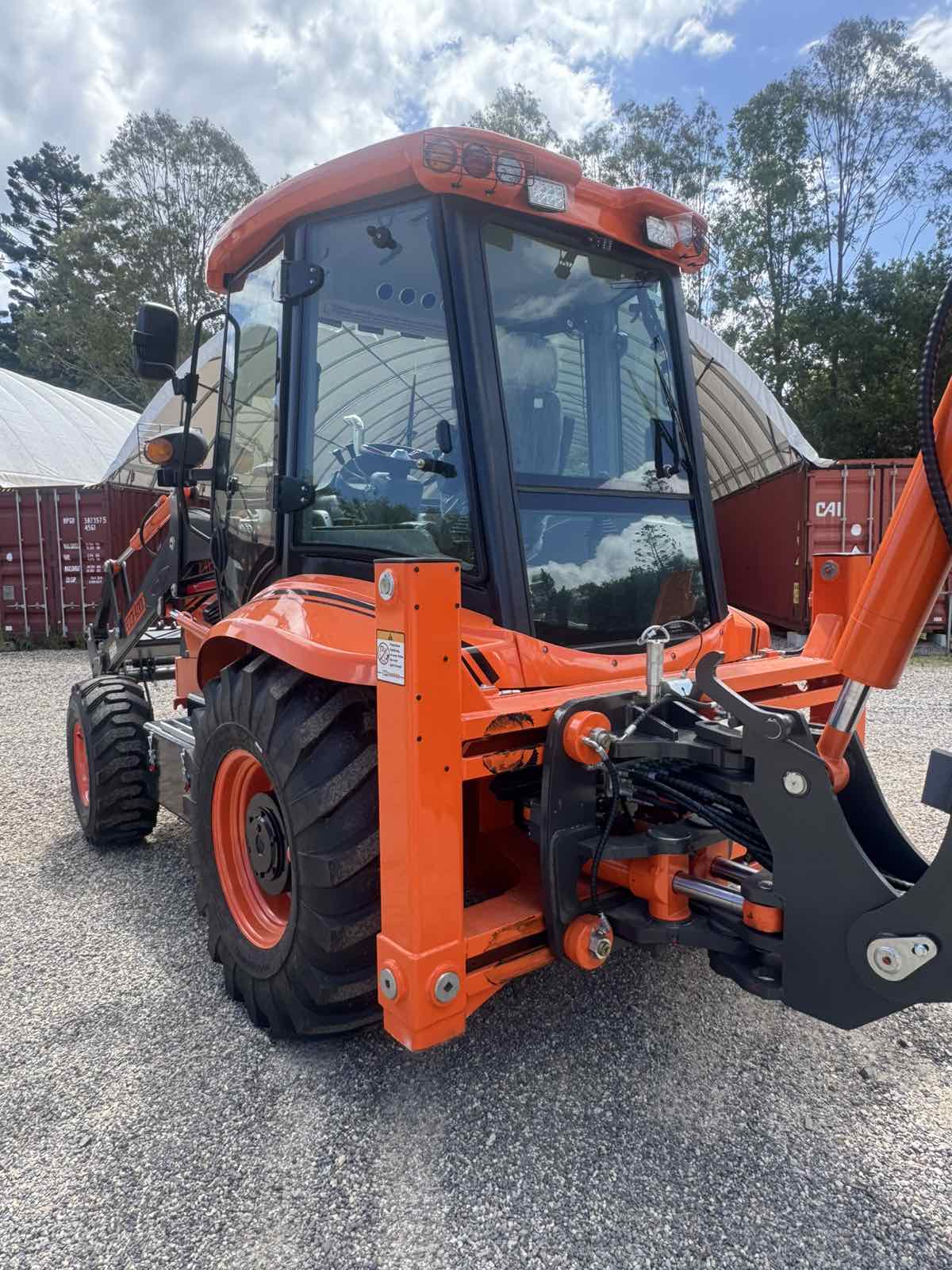

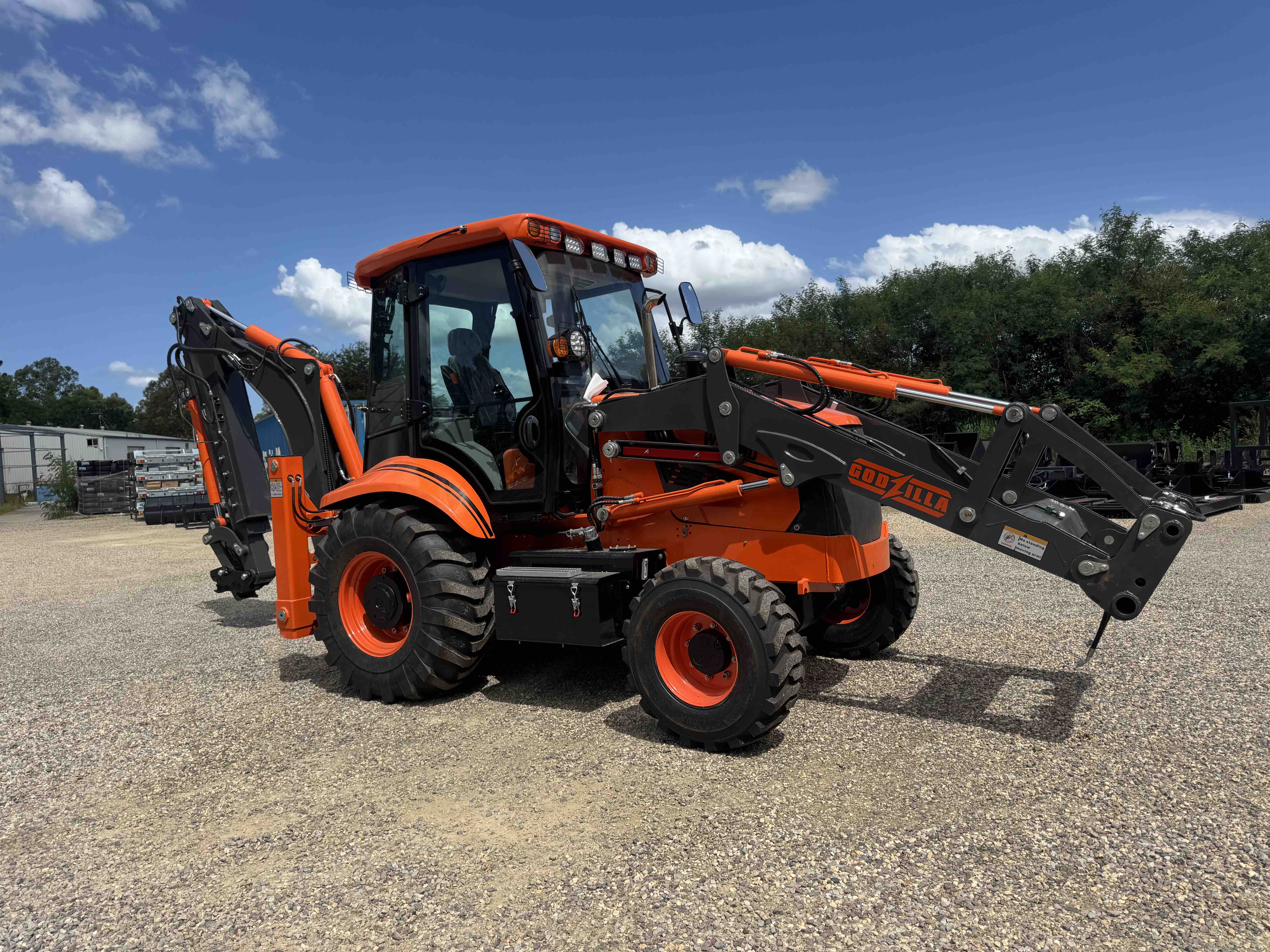

The Godzilla Site Wizard is a heavy-duty 8.2 tonne backhoe loader designed for serious earthmoving, trenching and material handling applications. Combining a powerful front loader with a high-performance rear excavator arm, it delivers the versatility contractors expect — without the premium brand price tag.
Ideal For Civil contractors, Drainage and trenching, Rural property development, Construction site support, Earthmoving and loading applications

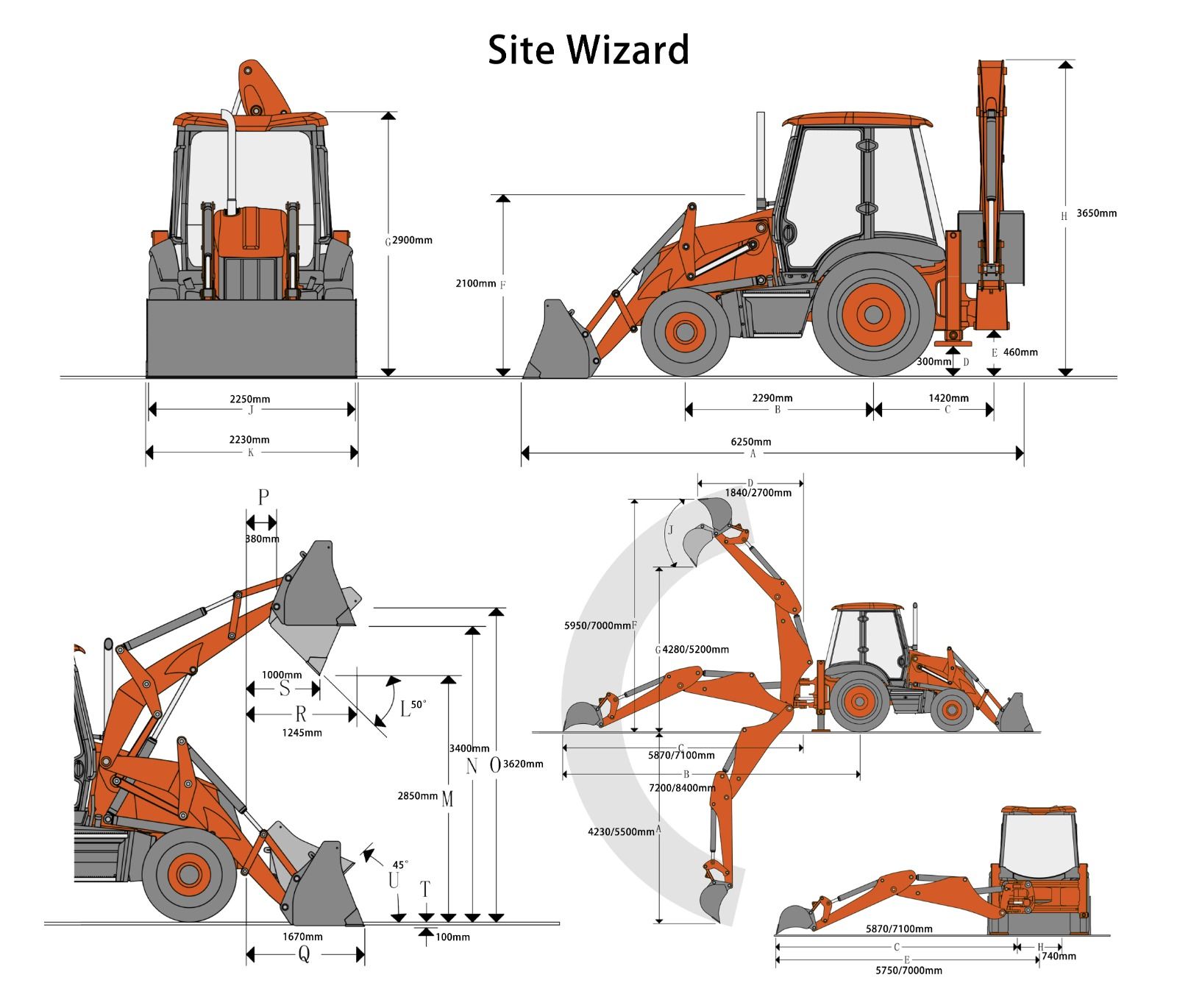

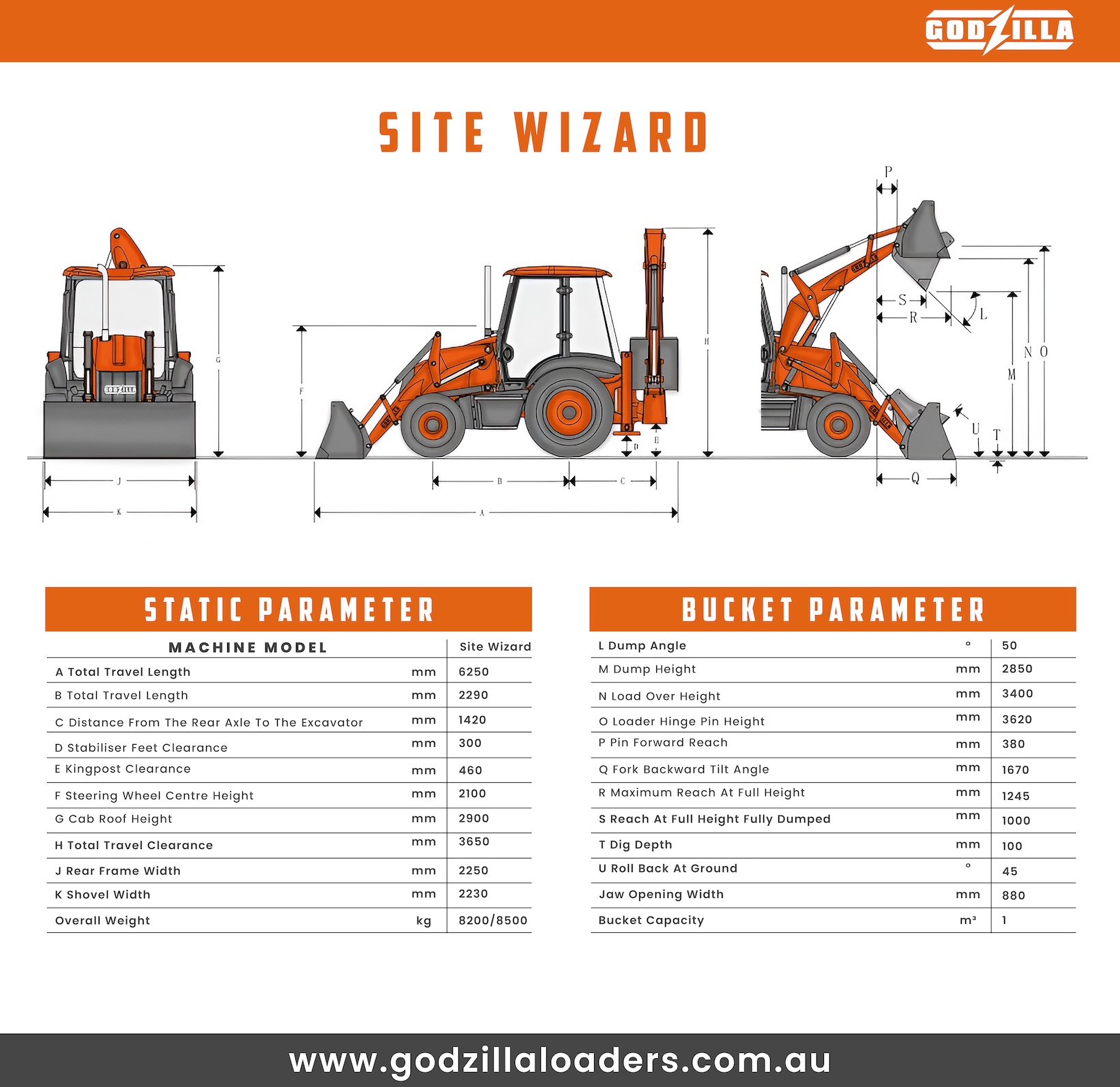

Bucket capacity: 1.0 m³
Rated loader load: 2,500 kg
Loader hinge pin height: 3,620 mm
Dump height: 2,850 mm
Dump reach: 1,062 mm
Dump angle: 50°
Rollback angle at ground: 45°
*Rated load based on bucket at ground level configuration. Capacity decreases at height.

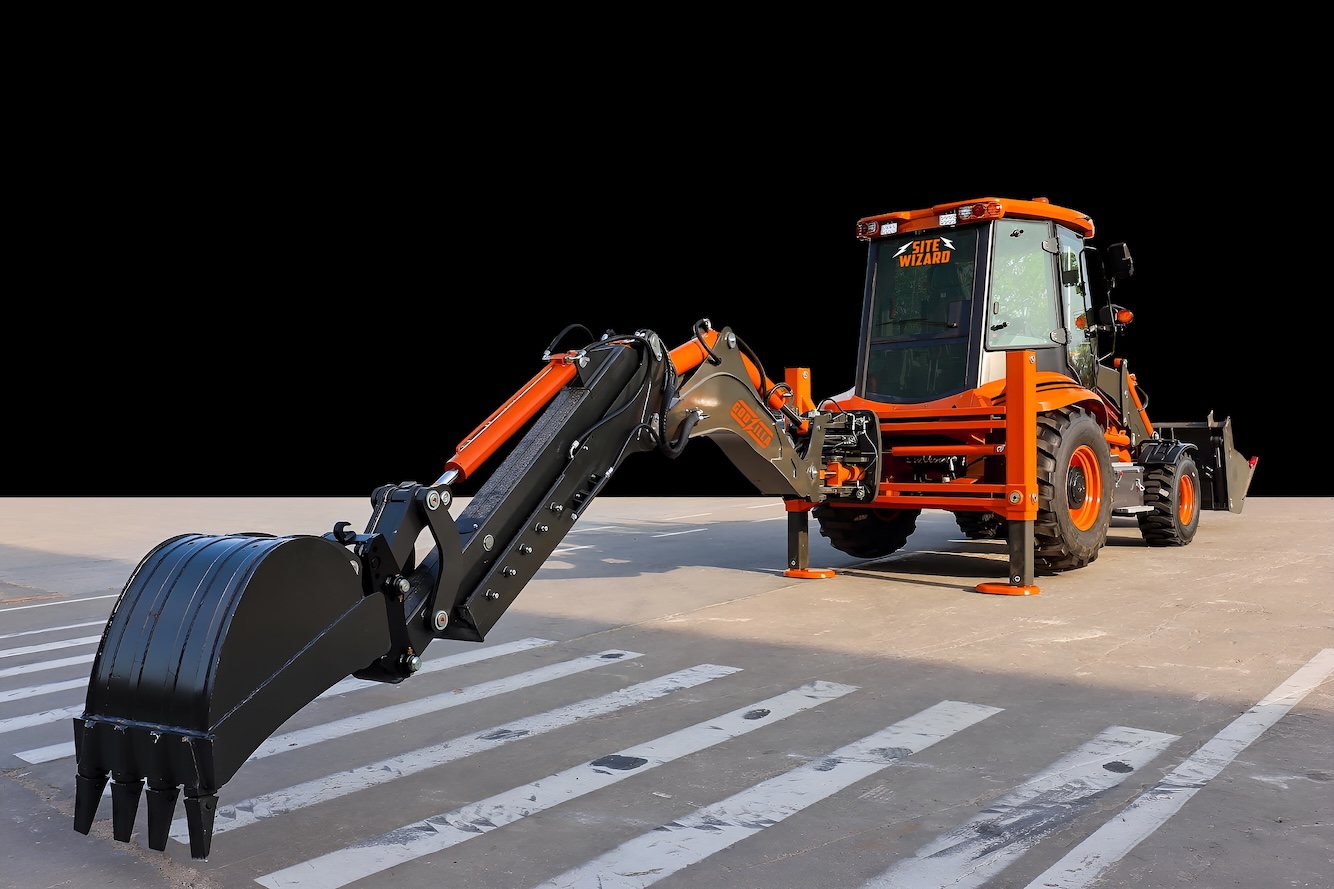

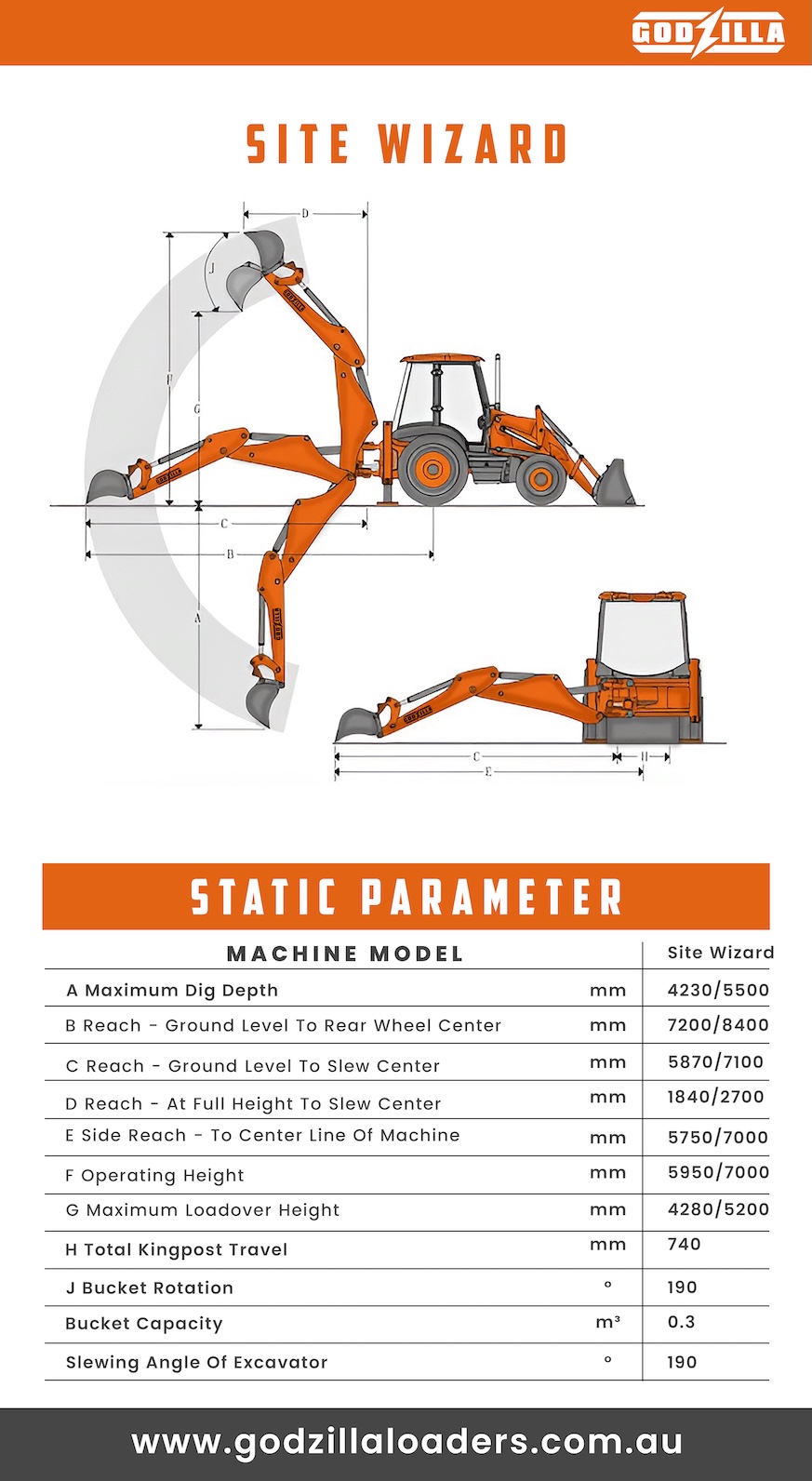

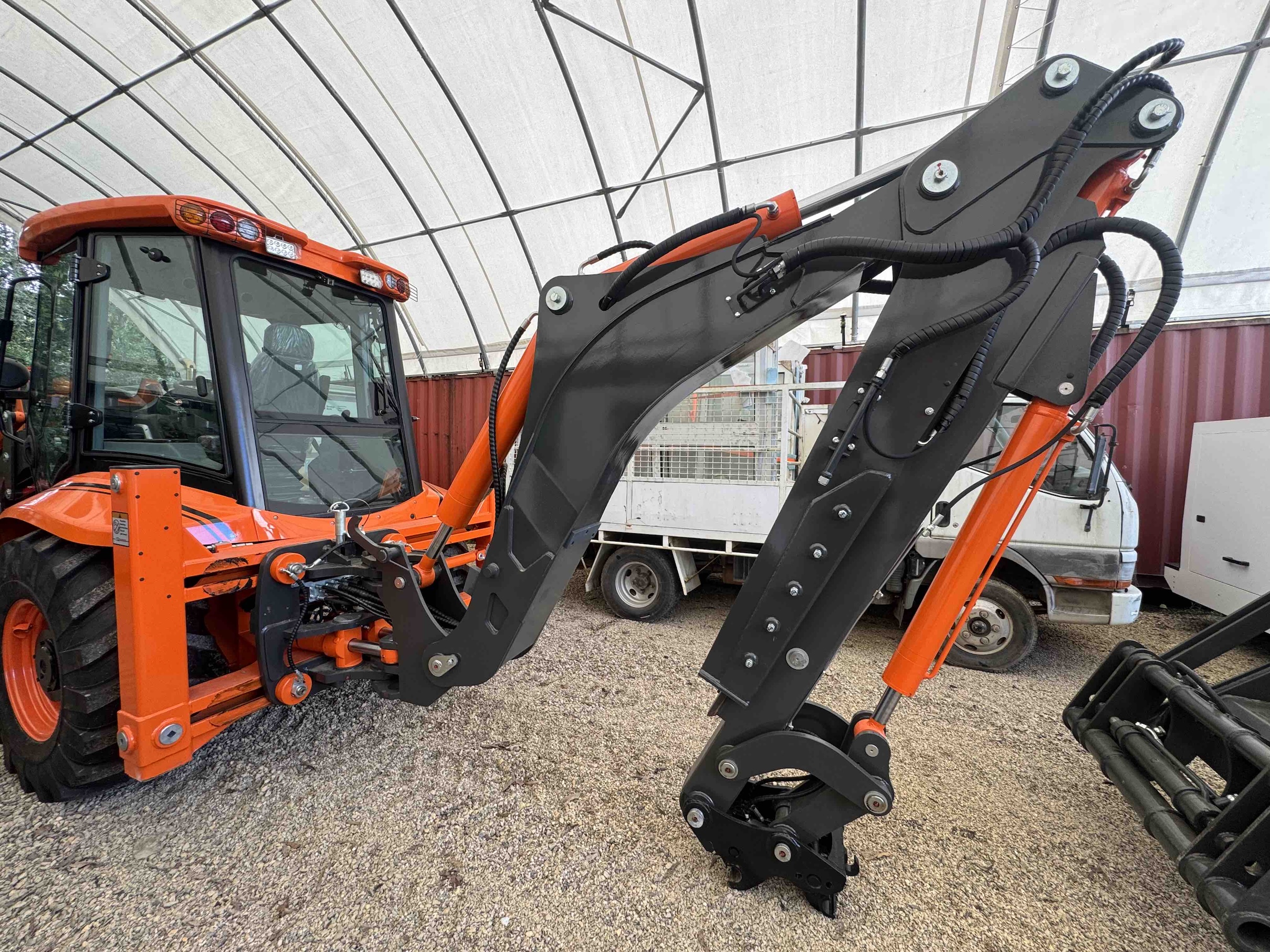

Bucket capacity: 0.3 m³
Maximum digging depth:
4,230 mm (standard)
5,500 mm (tele extension)
Maximum reach:
7,200 mm (standard)
8,400 mm (tele extension)
Operating height:
5,950 mm
7,000 mm (tele extension)
Slew angle: 190°

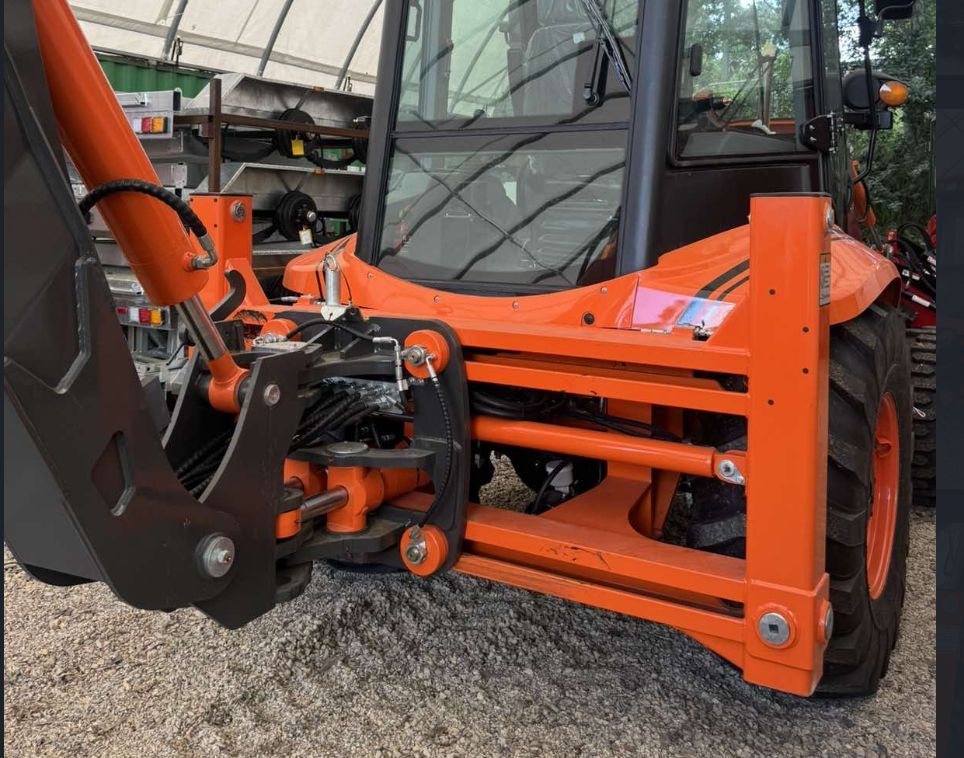

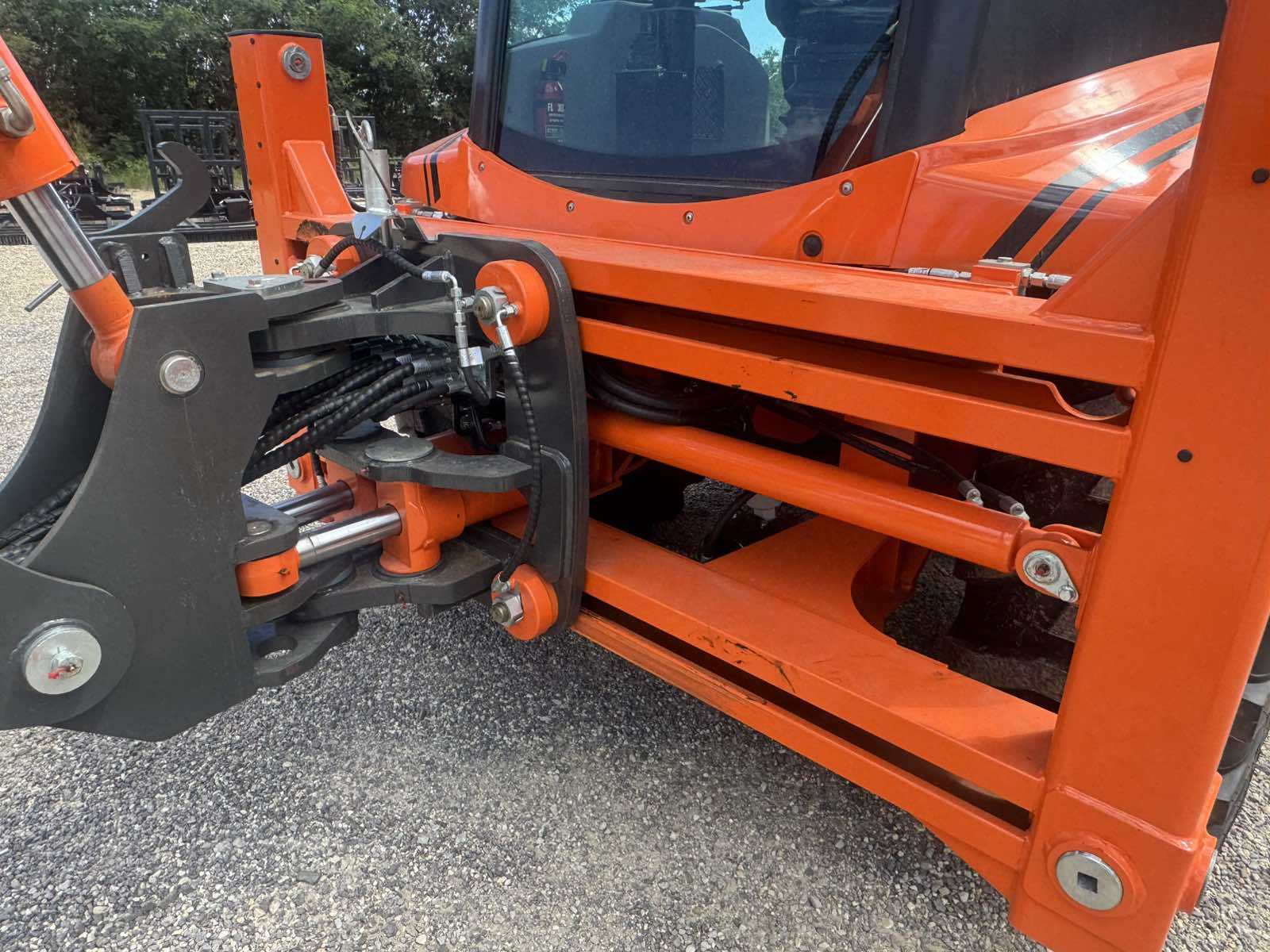

Kingpost travel: 740 mm
Rear lifting capacity: 1,000 kg (typical at reduced reach)
Rear lifting capacity varies depending on boom position, reach and stabiliser deployment.
| Engine Make | Yuchai Power 4105T |
| Type | Turbocharger |
| Rated power (KW) | 85 (114 hp) |
| Rated speed (r/min) | 2400 |
| Cylinders | 4 |
| System pressure (Mpa) | 28 |
| Drive type | Four-wheel drive |
| Speed type | Hydraulic power shift |
| Travel speed (km/h) | 28/38 |
| Maximum climbing ability ( ° ) | 35 |
| Gearbox | Hydraulic shift |
| Number of gears | 2 forward, 2 reverse |
| Torque converter | YJ280 |
| Maximum telescopic digging depth (mm) | 4230/5500 |
| Maximum digging radius (mm) | 4800/6000 |
| Maximum lifting height (mm) | 5200/5950 |
| Bucket capacity (m3) | 0.3 |
| Excavator rotation angle ( ° ) | 190 |
| Maximum dumping height (mm) | 2850 |
| Maximum dumping distance (mm) | 1062 |
| Bucket capacity (m3) | 1 |
| Fuel tank (L) | 100 |
| Hydraulic oil tank (L) | 100 |
