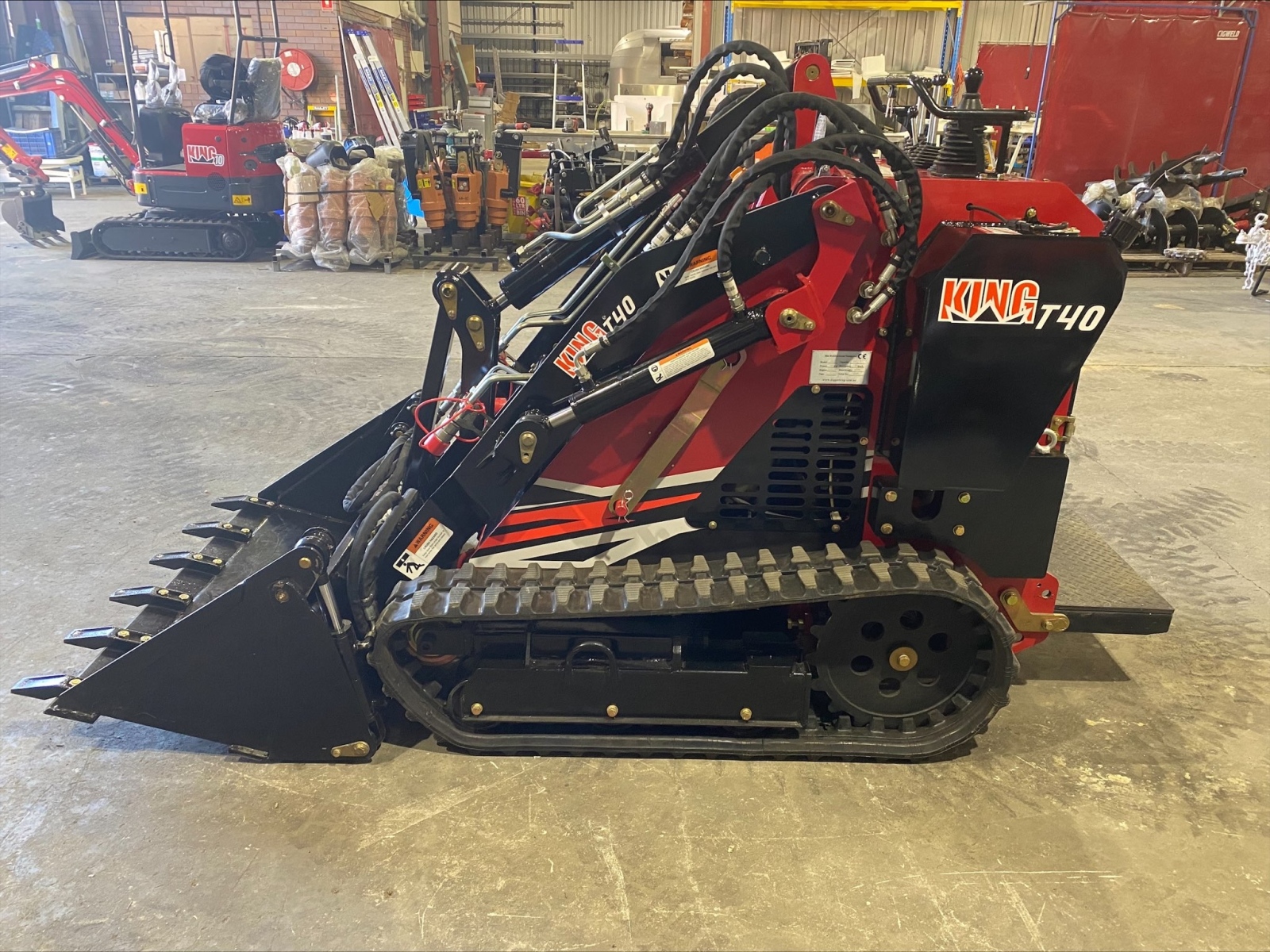

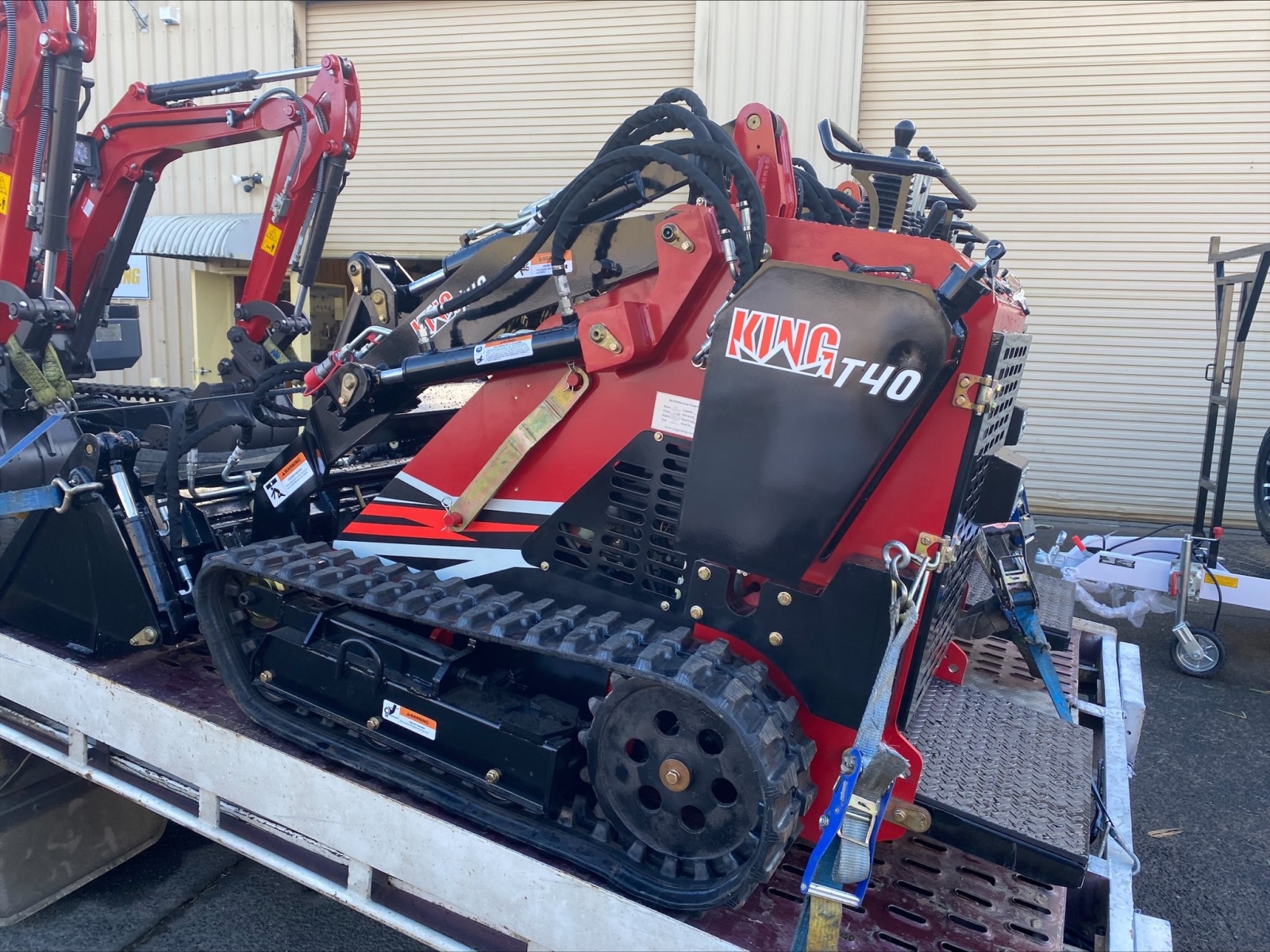

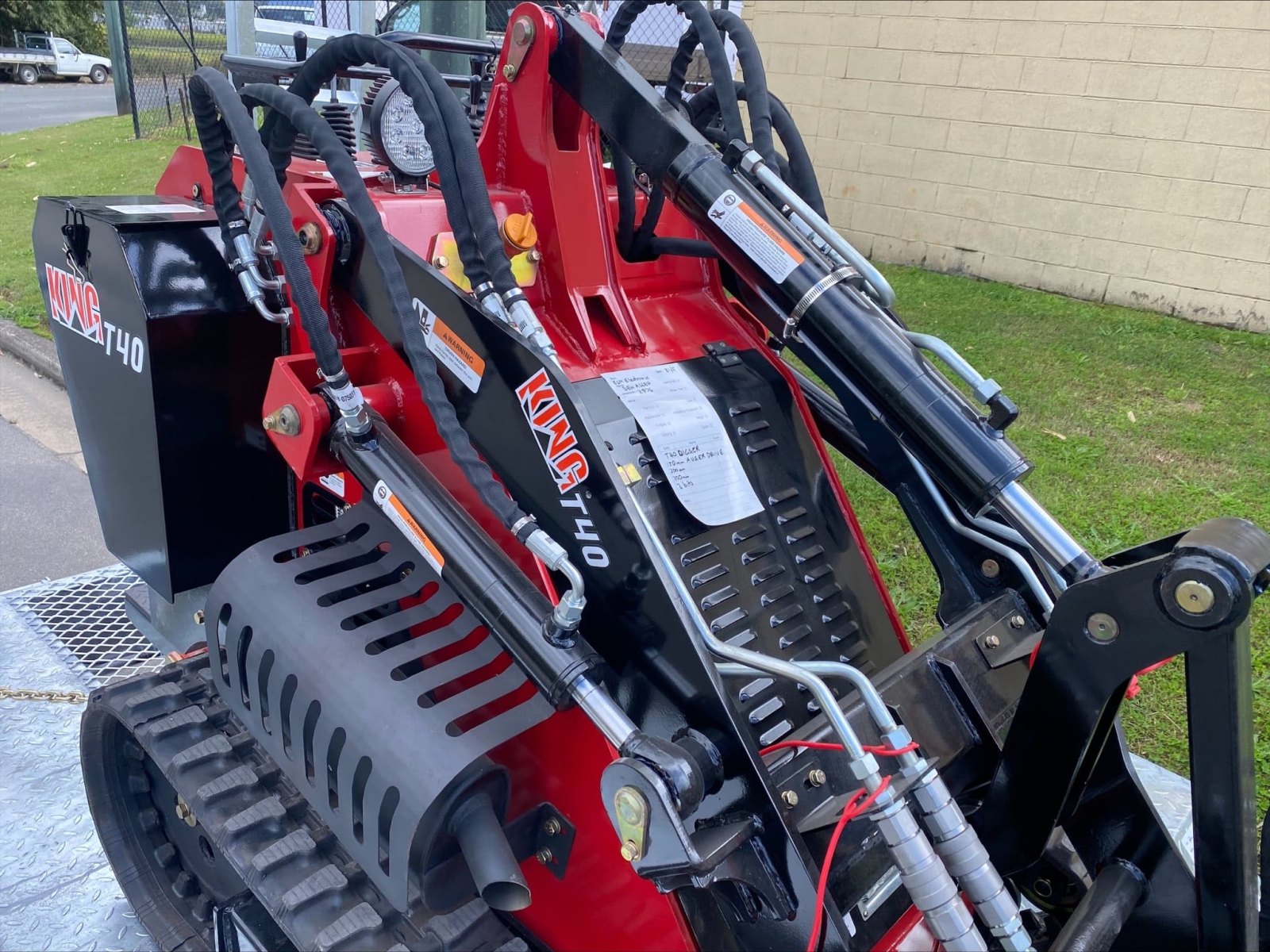

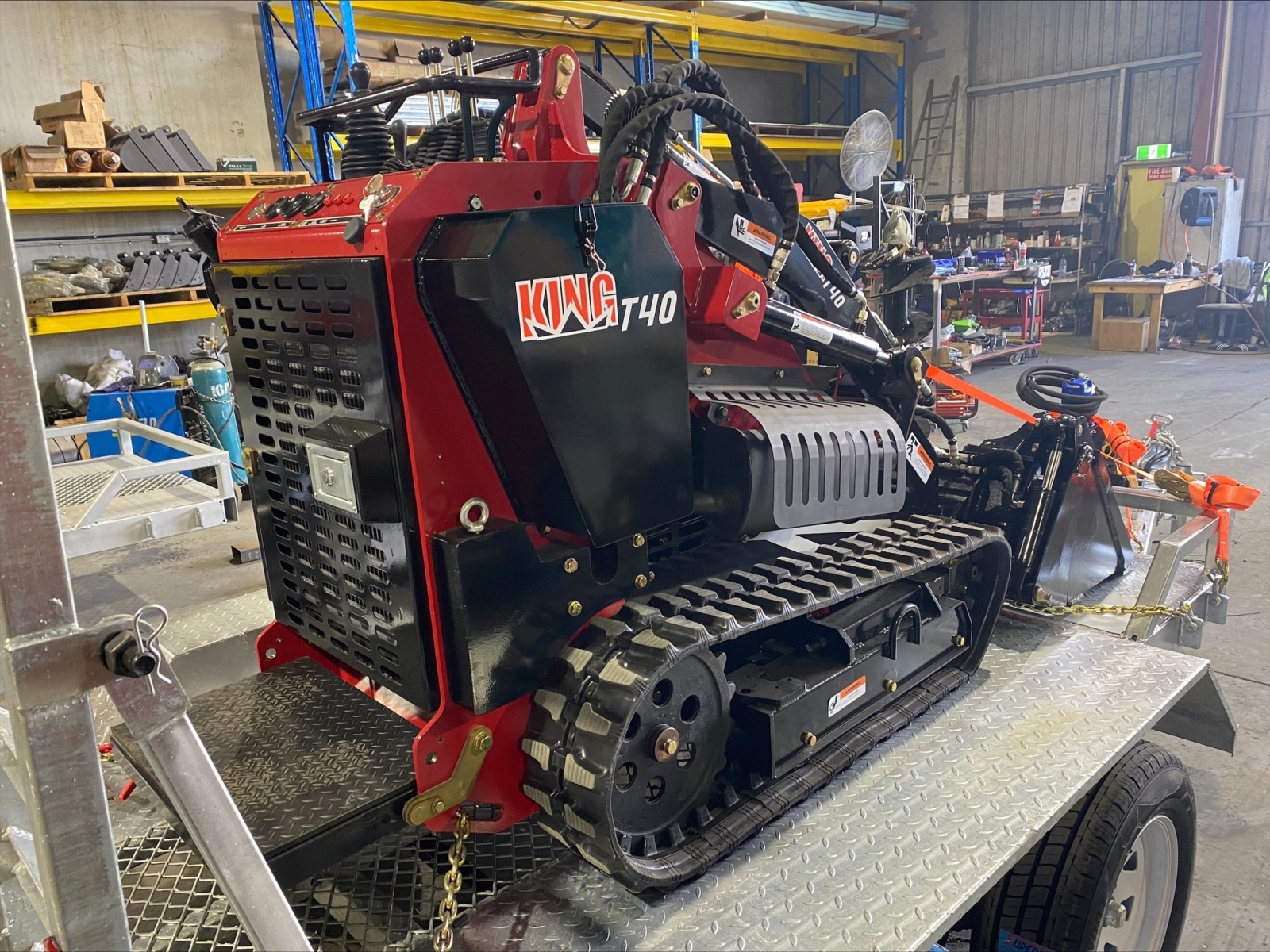

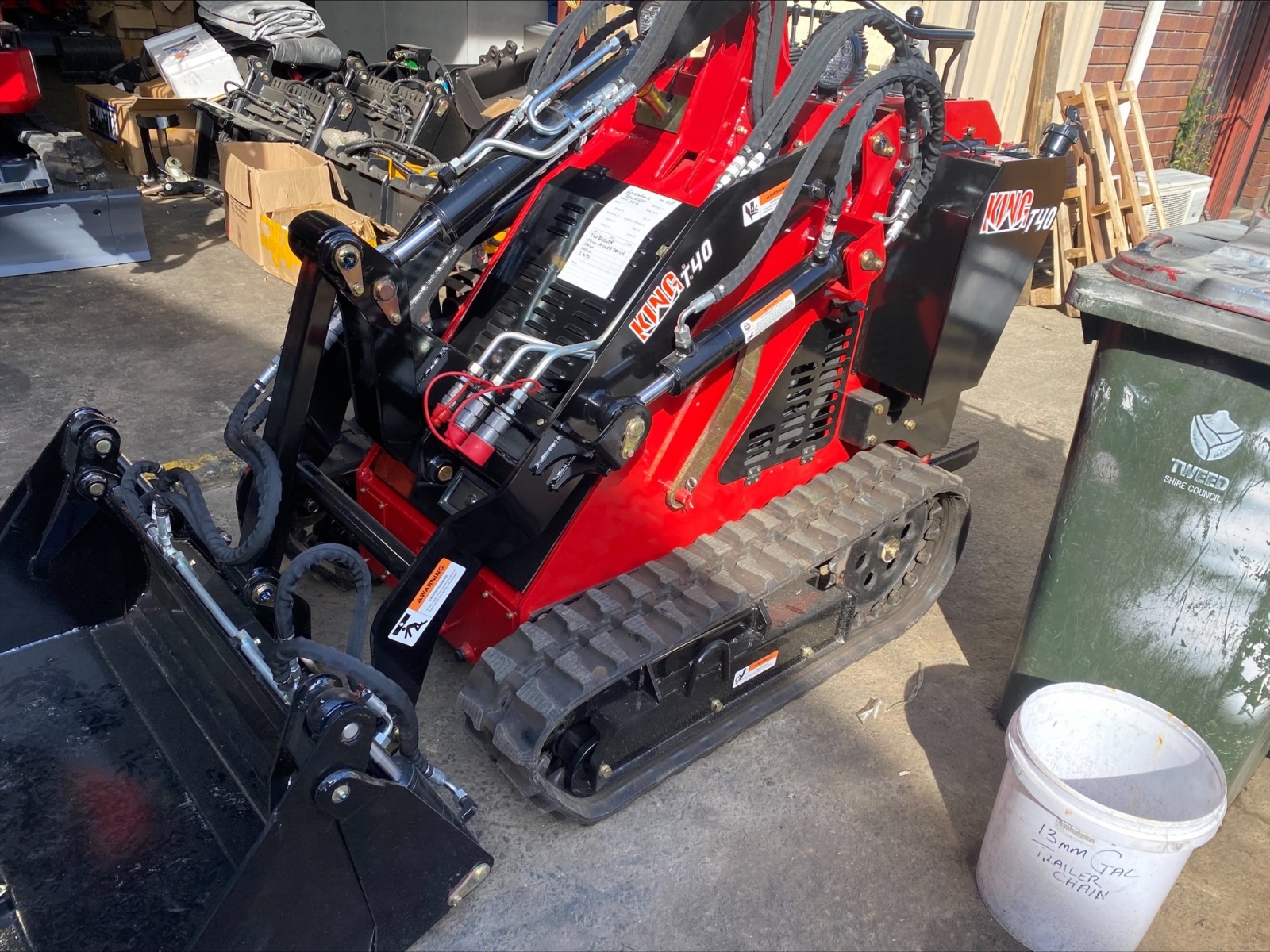

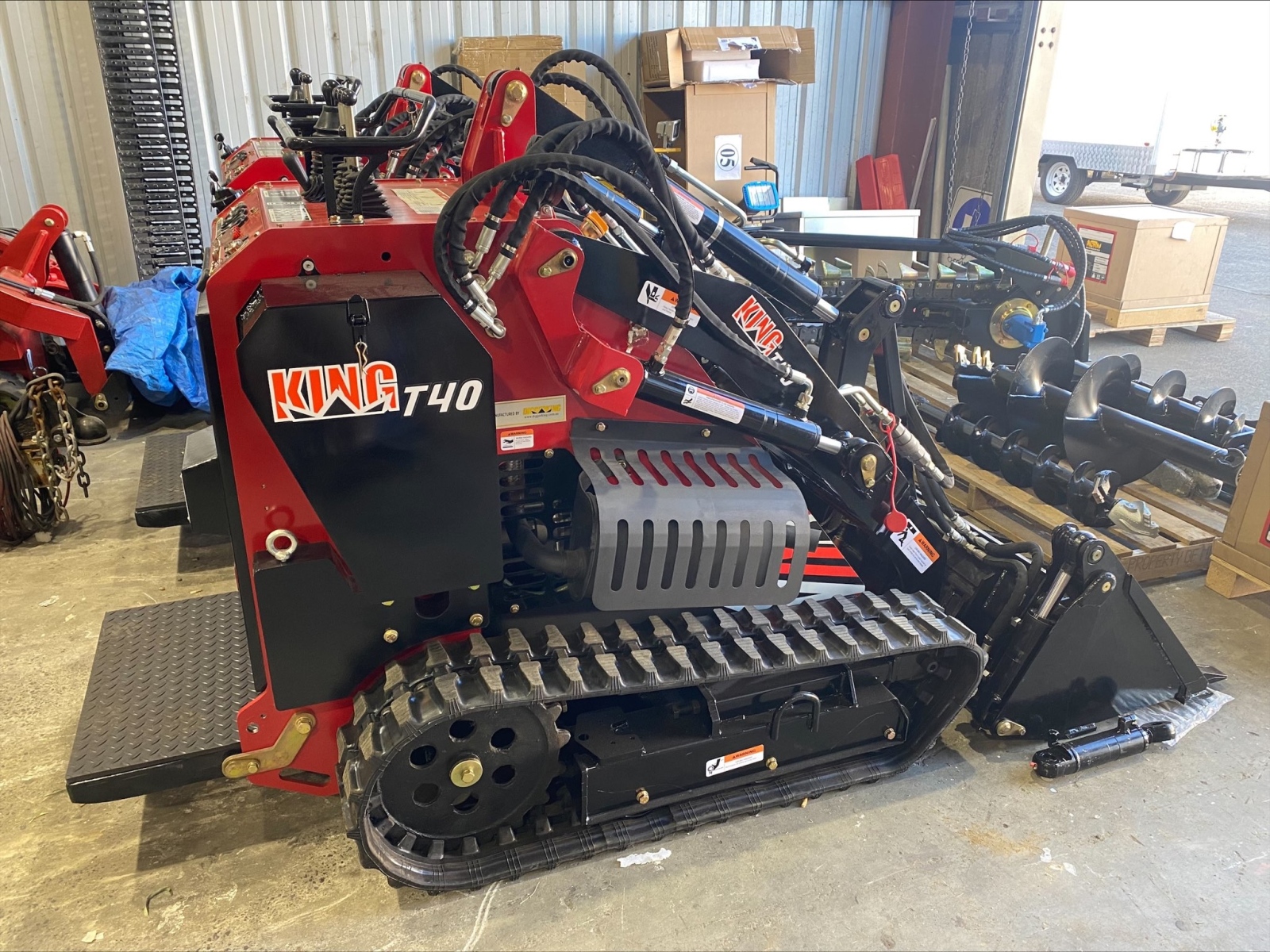

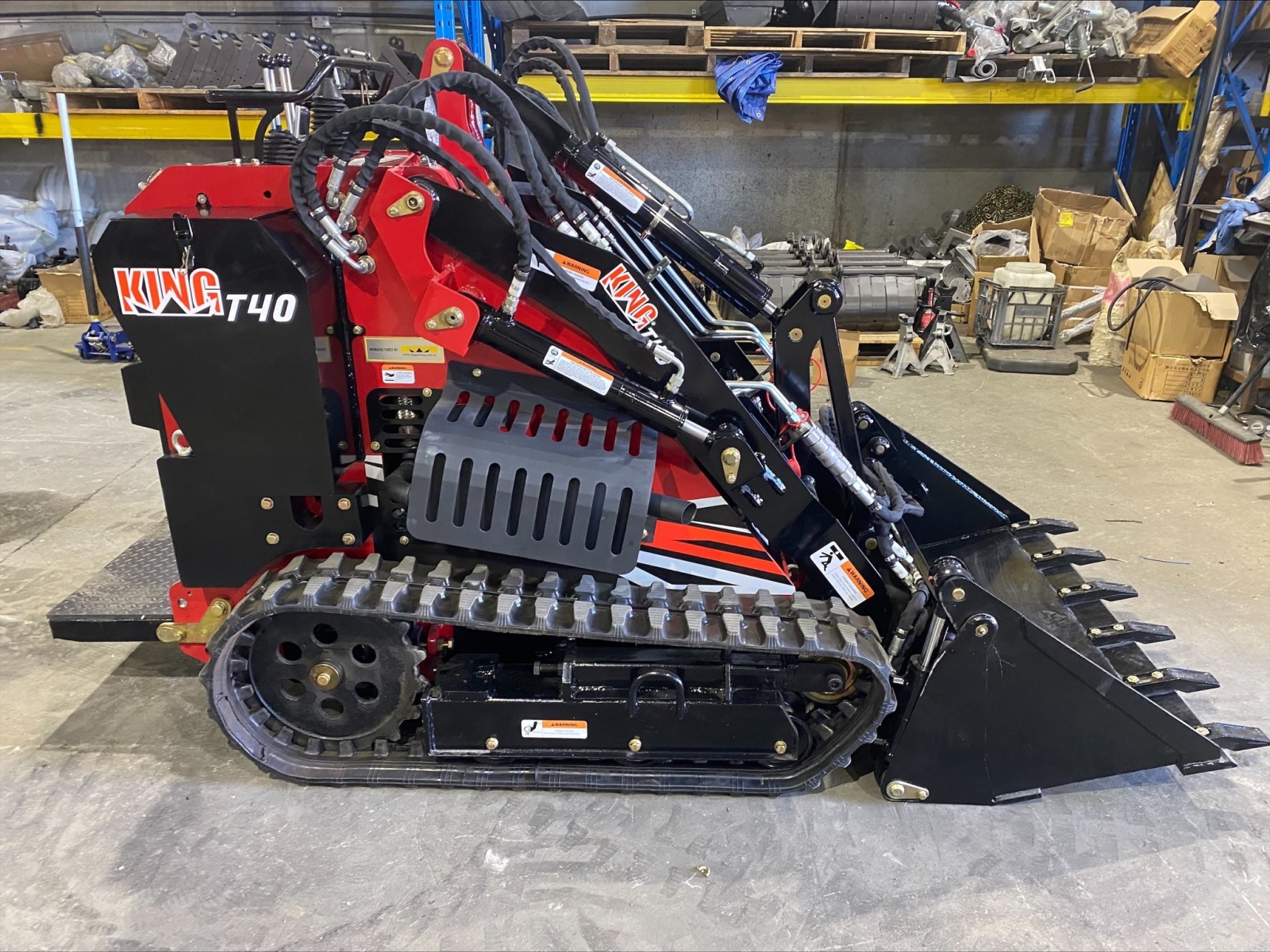

Digger King Tracked 40 Mini Loader – 1084mm Wide Mini Skid Steer Loader

At only $34,990 + GST including 4 in 1 bucket or around $169* per week, scroll down for all inclusions

Click the quick link buttons below to take you directly to the information you need:


Are you a contractor looking to speed your jobs up? Perhaps you already own another King product such as the King 1.0 or King 1.7 and you want your own mini combo set up.

Well maybe the King Tracked 40 Mini Loader is just right for you; priced affordably and available with the option of a trailer, it is compliable with the digger range of attachments, meaning the jobs this machine can be used for is endless.

The King Tracked 40 Mini Loader looks great – this machine is a modern design and eye catching, you will be the envy of everyone who sees it plus it puts your business in a new professional light.



It includes all of our standard features, plus everything you need to get started with your Tracked 40 HP Mini Loader with 4 in 1 bucket

  •  Load capacity – 450 kg
  •  Weight – 1016 kg
  •  Dimensions (inc bucket) – 2519 mm (L) x 1110mm (W) x 1415 mm (H)
  •  Warranty – 12 month parts and labour, 36 month parts warranty



Video Tour of Tracked 40 Machine and Implements

Time: 9min 47sec




Tracked 40 HP Mini Loader Package Total Price Only $34,990 + GST or around $169 per week on finance

Tracked 40 Mini Loader Package Inclusions:

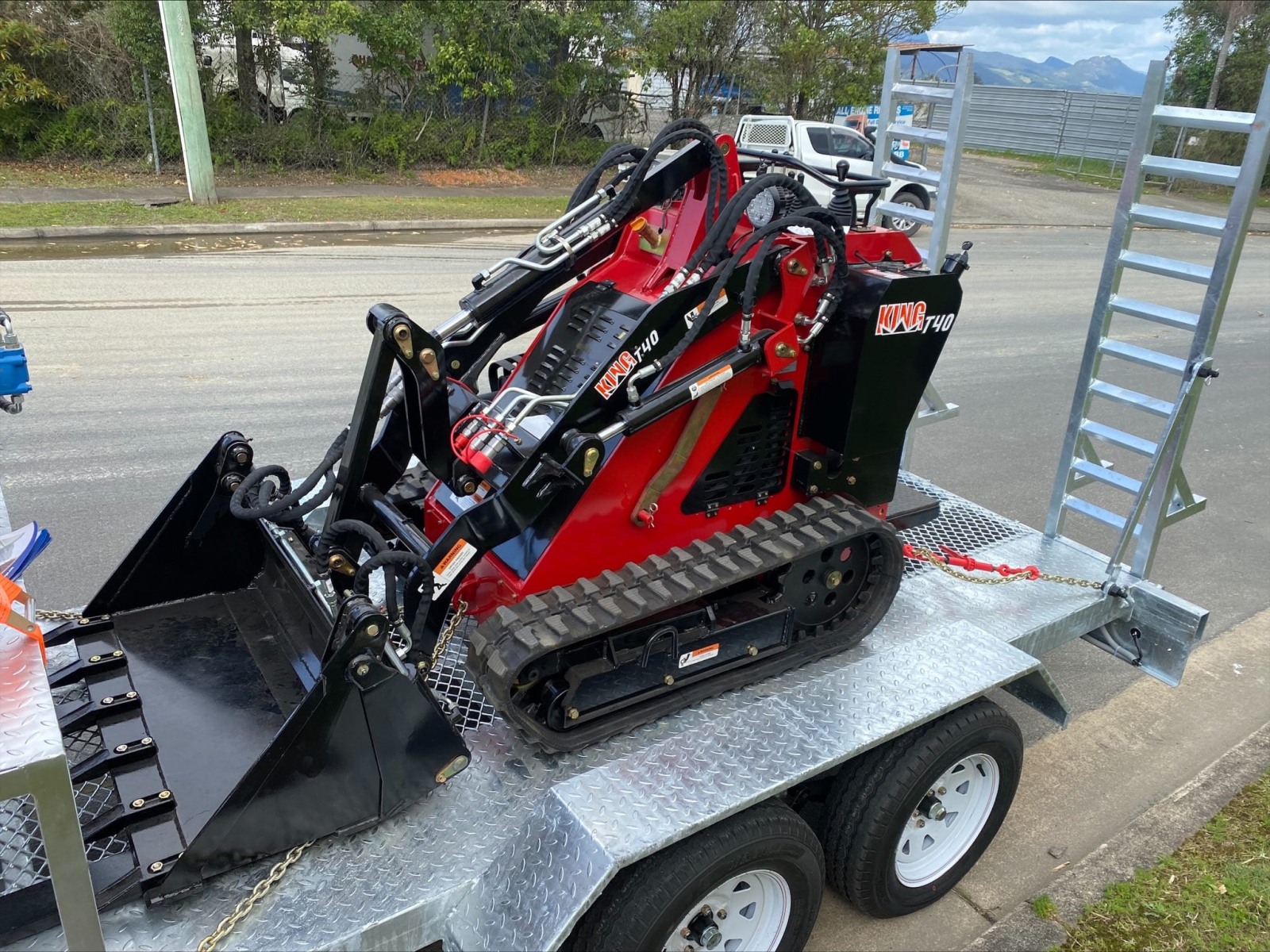

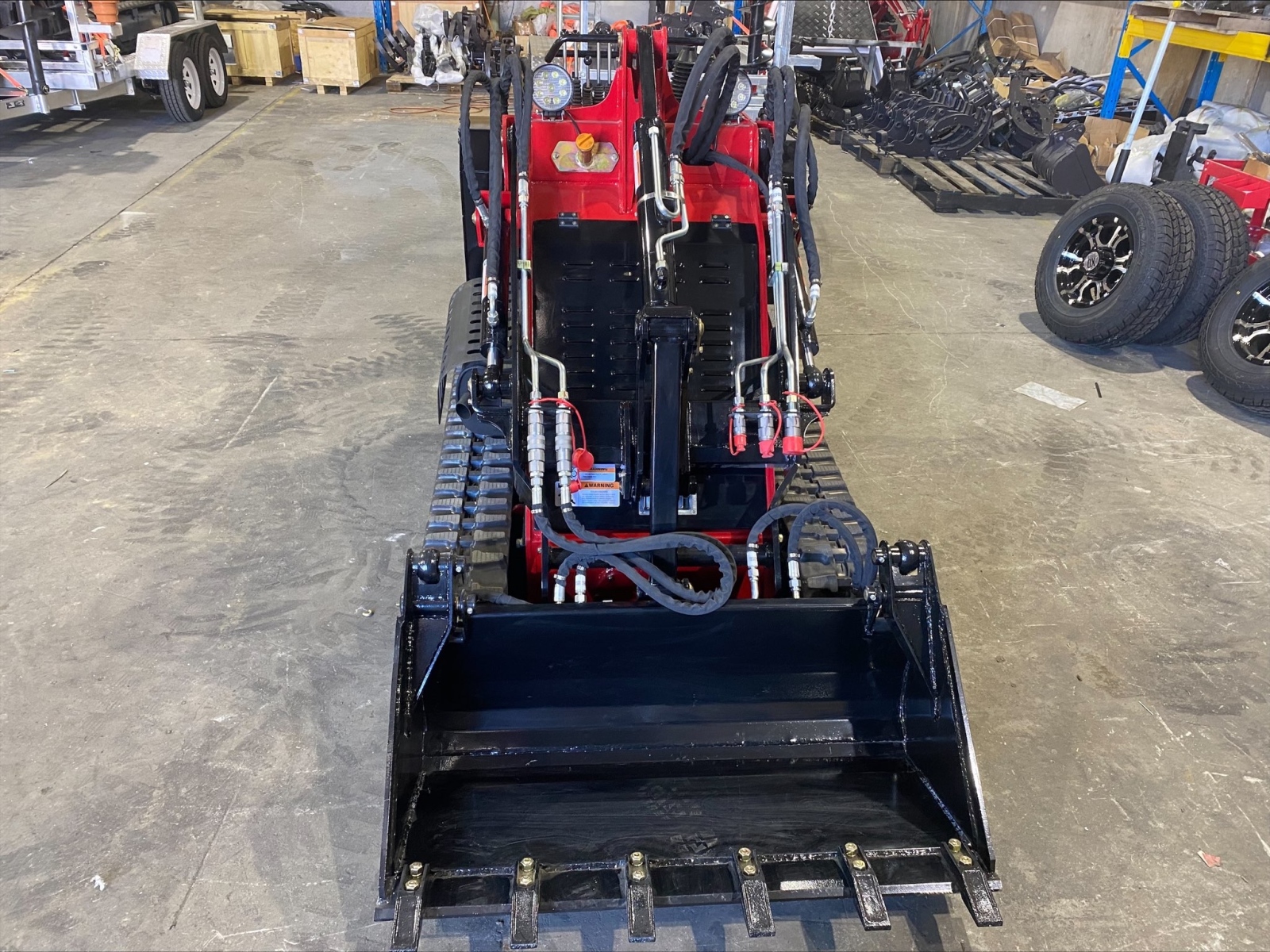

  •  4 in 1 Bucket – this allows your King Tracked 40 Mini Loader to doze, dig, dump, carry, clamp, grab, optional teeth
  •  Lift Arm Float Control – this allows you to use your King Tracked 40 Mini Loader to spread soil easily by back blading

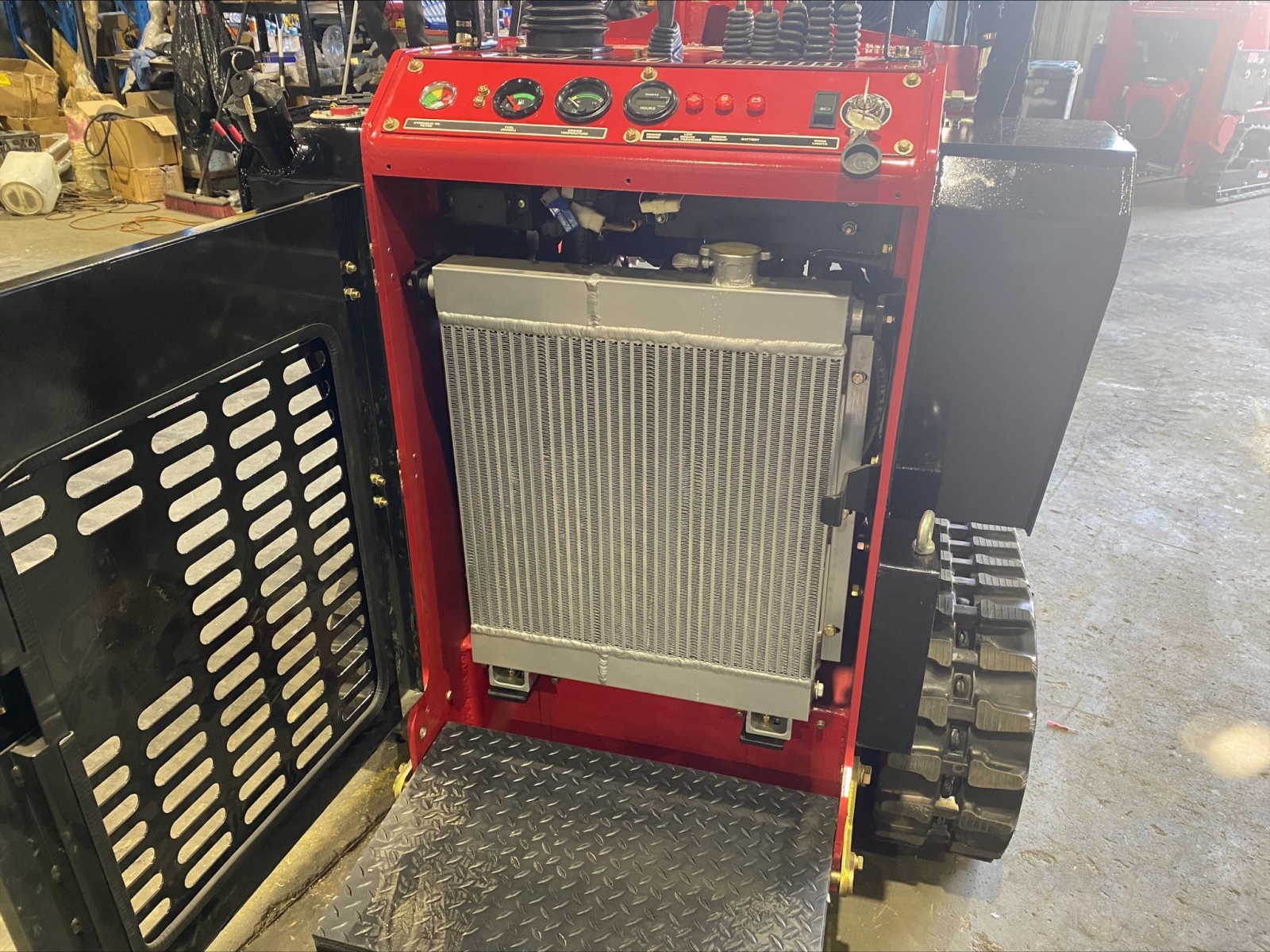

  •  Large Alloy Radiator with Cooling Fan – efficient cooling of engine and hydraulic oil

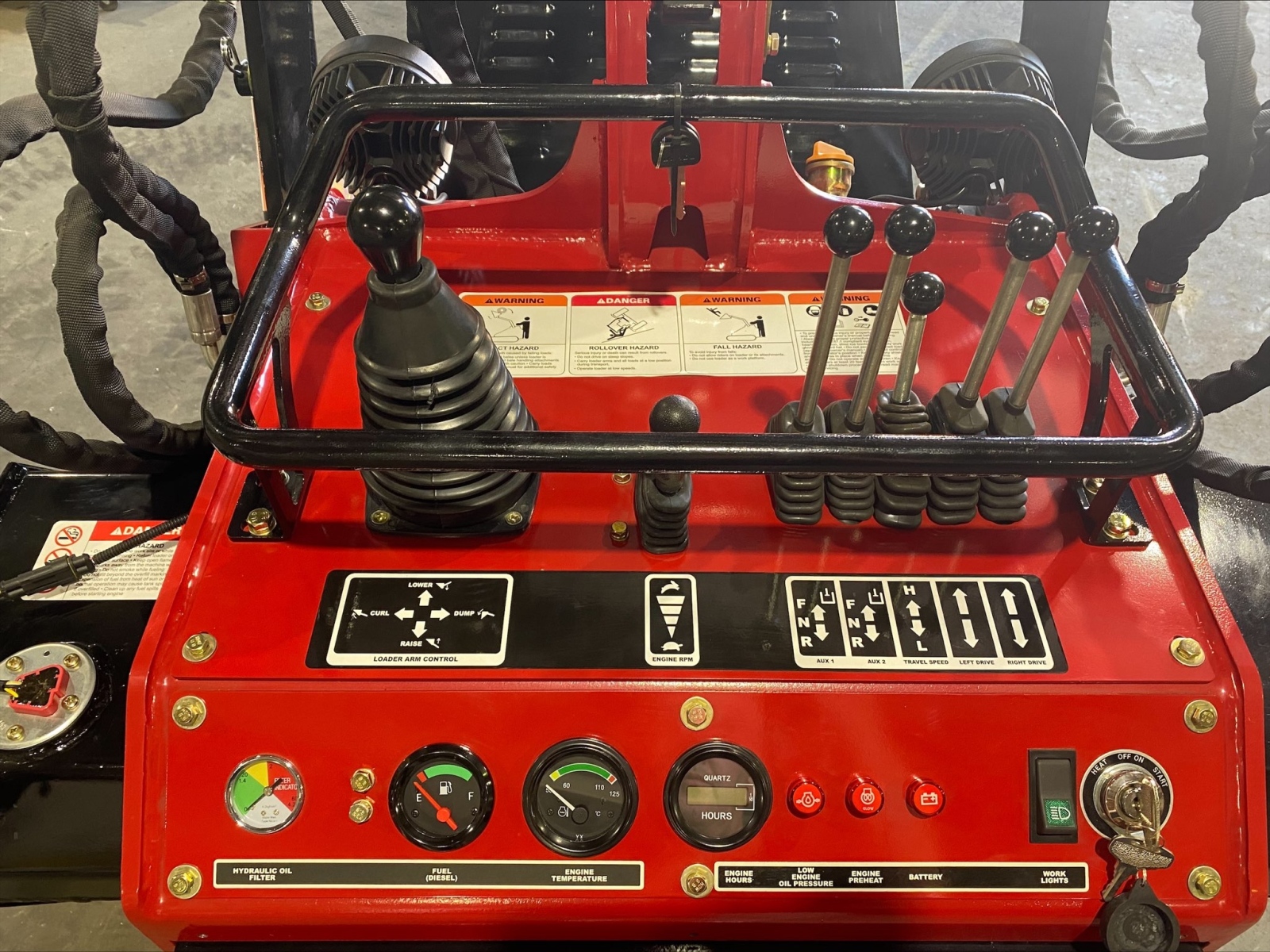

  •  Joystick Steering Control – manual controls means it’s easy to use and manage your King Tracked 40 Mini Loader
  •  Hydraulic Oil Cooler – this means it keeps oil temp lower allowing you to operate longer with no issues

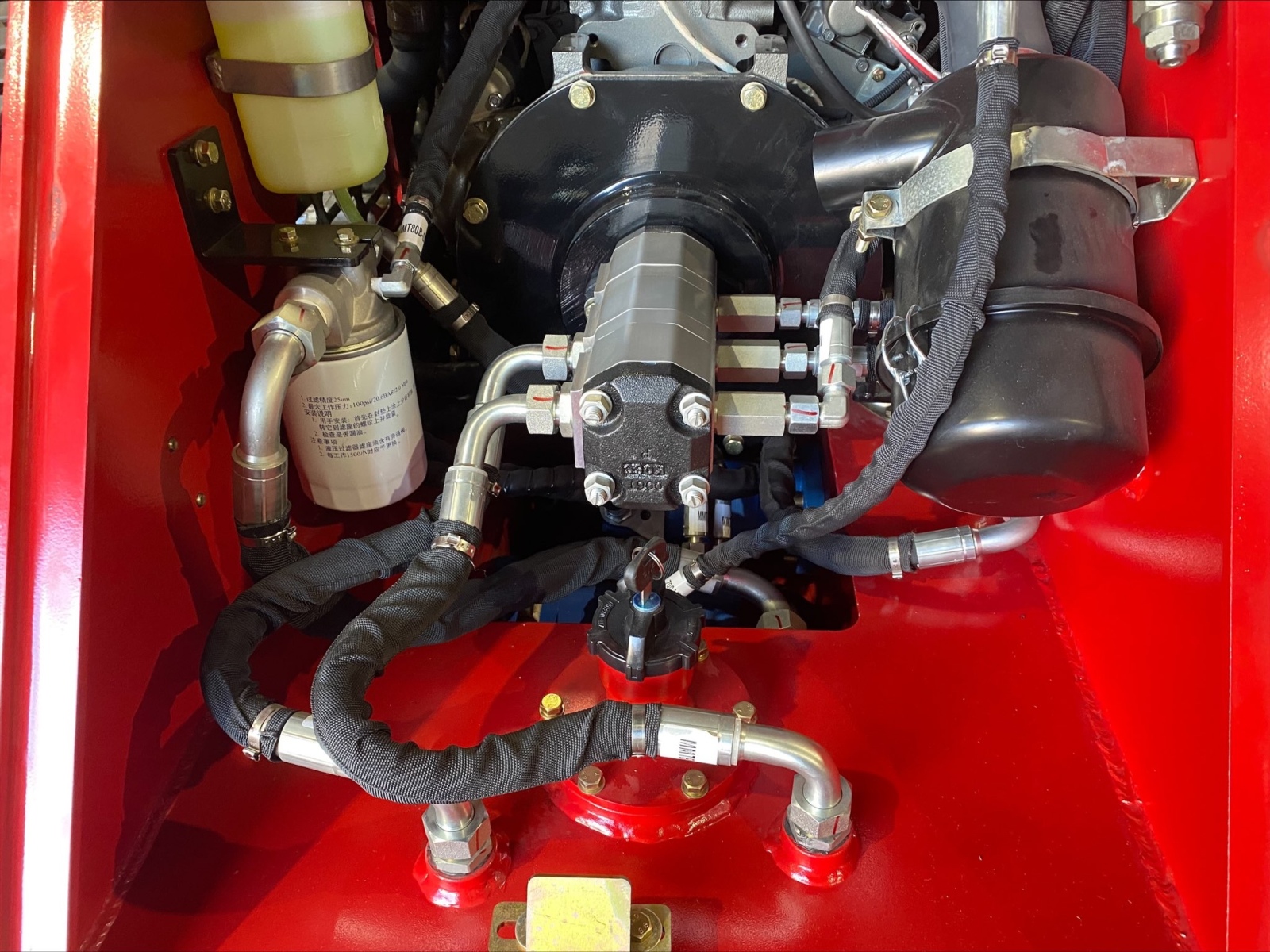

  •  3 x Hydraulic Pump System – this means you have efficient separation of power to attachments, bucket controls, and wheels with your King Tracked 40 Mini Loader
  •  Auxiliary Hydraulic Outputs – this means you can add many options of external accessories to your King Tracked 40 Mini Loader
  •  Hose Quick Coupler Fittings – this means it eliminates the chance of dirt and other foreign objects getting into your King Tracked 40 Mini Loader

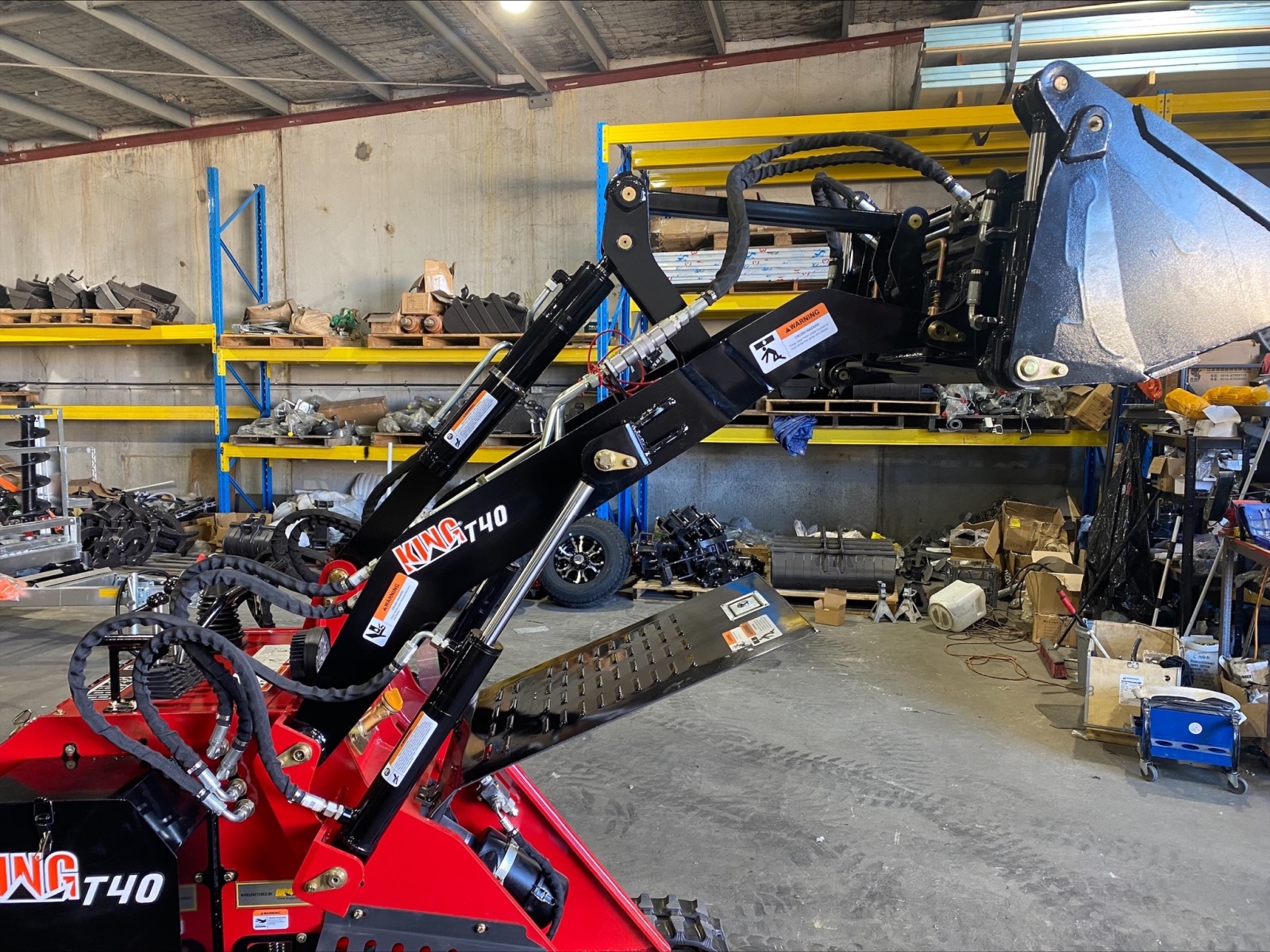

  •  Curved Lift Arms to Facilitate a Radial Lift Pattern – allows your King Tracked 40 Mini Loader attachments to lift ‘up’ and ‘out’ increasing clearance to the front of the machine. Handy when using large augers
  •  CNC Manufacturing and Electrophoresis Paint Process – this gives you the unique King rust protection and excellent finish
  •  Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – you get longer working hours between services of your King Tracked 40 Mini Loader
  •  Muffler Insulation – this allows the engine to operate cooler allowing you to operate longer with your King Tracked 40 Mini Loader
  •  Hydrostatic Drive Train System – this allows you to do jobs with your King Tracked 40 Mini Loader easily as the hydraulic power is doing the work for you
  •  Japanese NSK Bearings and Grade 60H Chains – your King Tracked 40 Mini Loader is a just like Toyota designed to be unbreakable
  •  Standard Attachment Mounting Plate – you can buy attachments anywhere you like for your King Tracked 40 Mini Loader or use ones you may have already
  •  Operator Platform Suspension – when you are working on your King Tracked 40 Mini Loader your comfort is number 1 allowing you to work longer and easier day in, day out

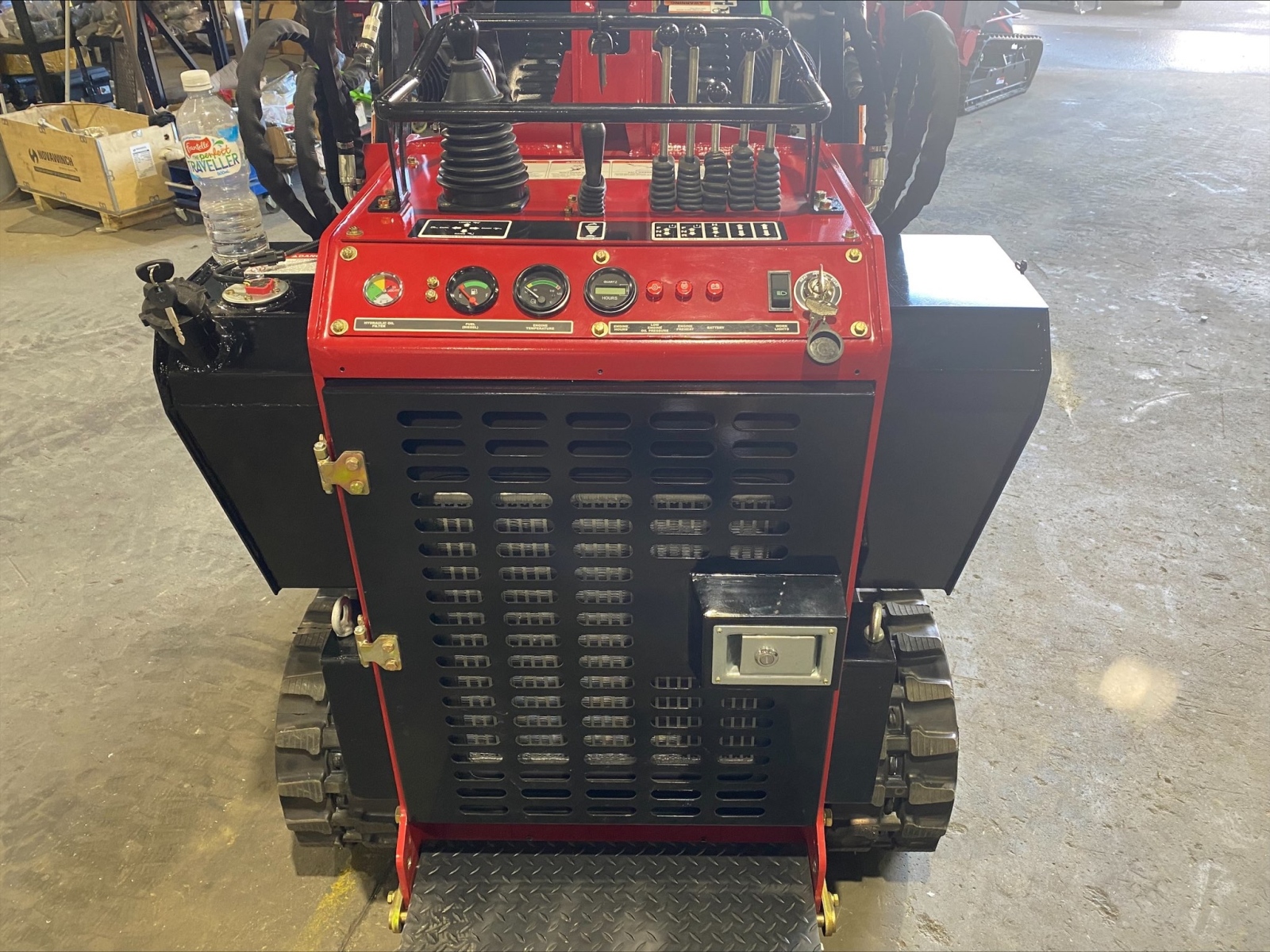

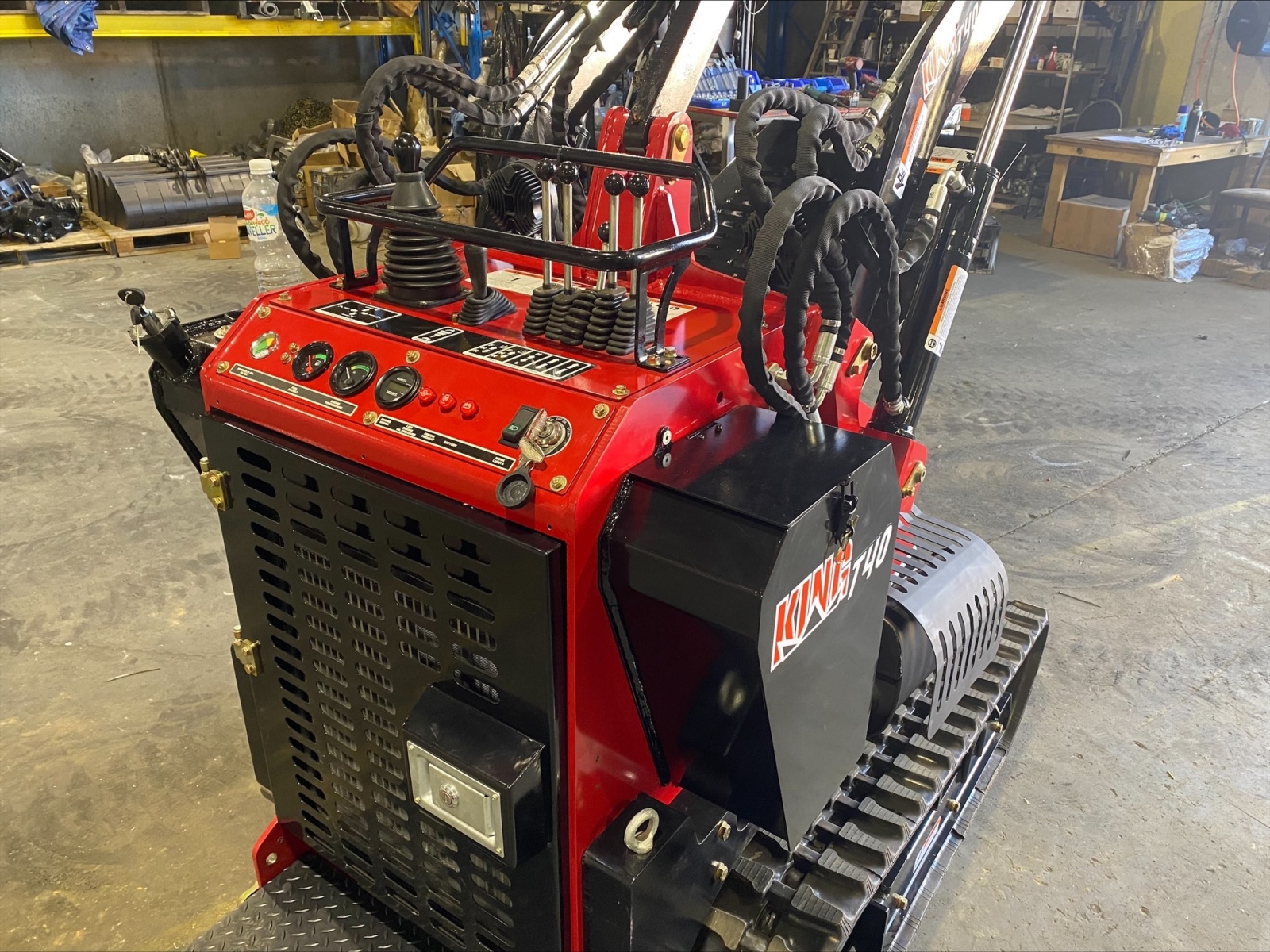

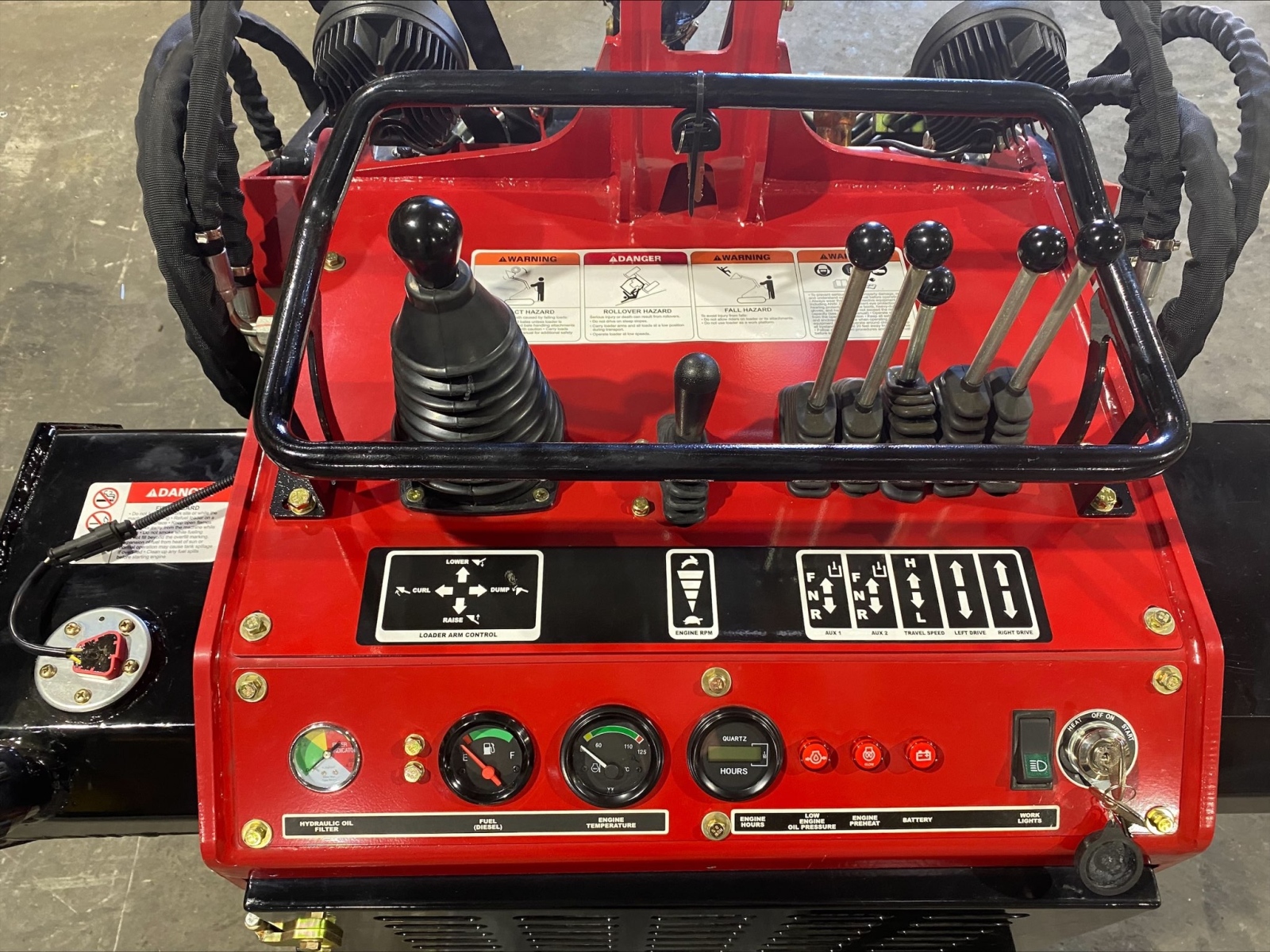

  •  Gauges and Warning Lights – these gauges point out if there are any issues, meaning you can stop the machine and rectify before any damage is caused allowing your King Tracked 40 Mini Loader machine a long and reliable service life.
  •  Service Kit and Tools – included free is a tool box and service kit so you wont have to go digging for tools if you need to service or adjust something on your King Tracked 40 Mini Loader

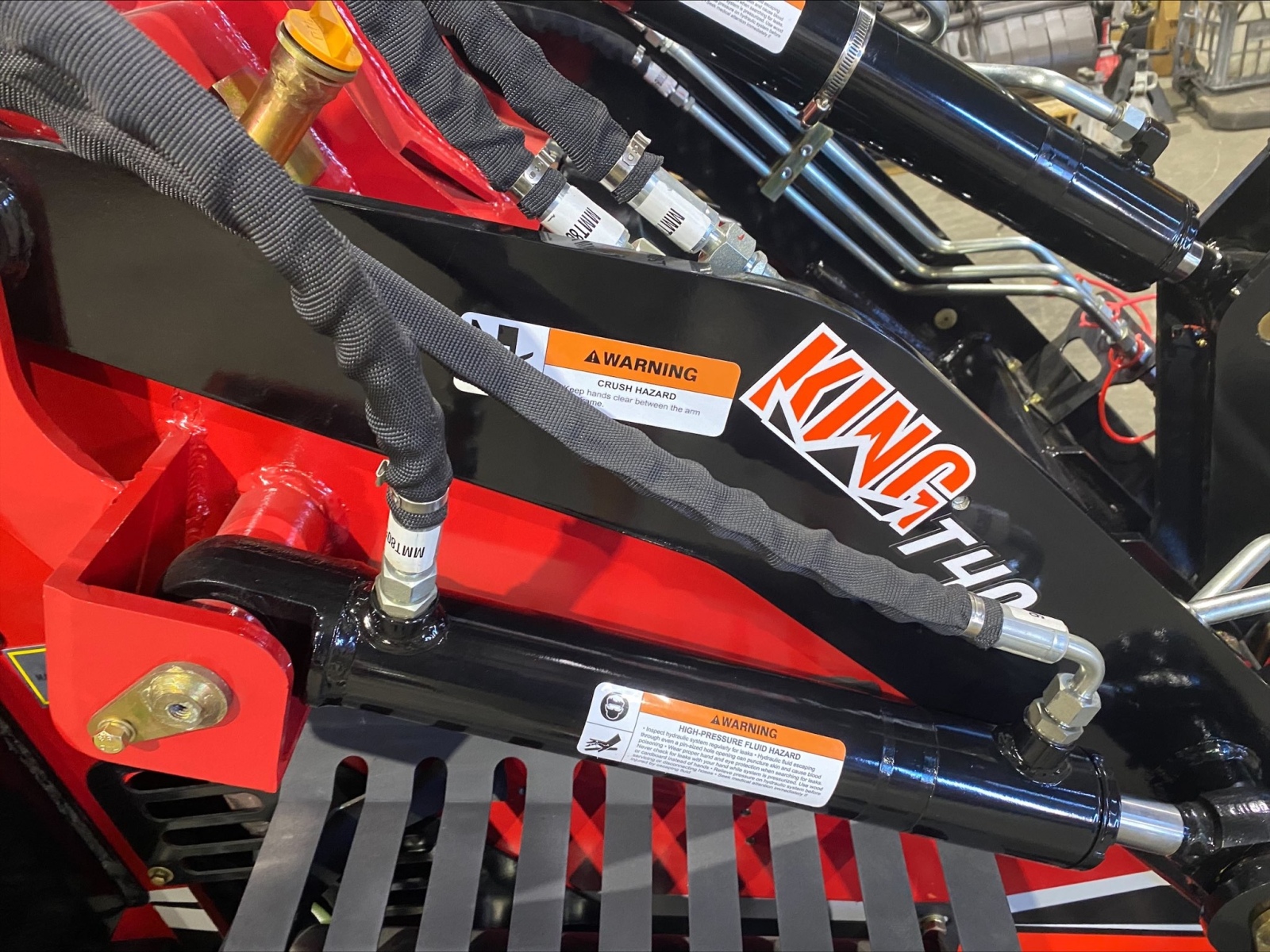

  •  Hose Protection Kevlar Sleeving – prevents burst in the hoses, once again extending the life of your King Tracked 40 Mini Loader

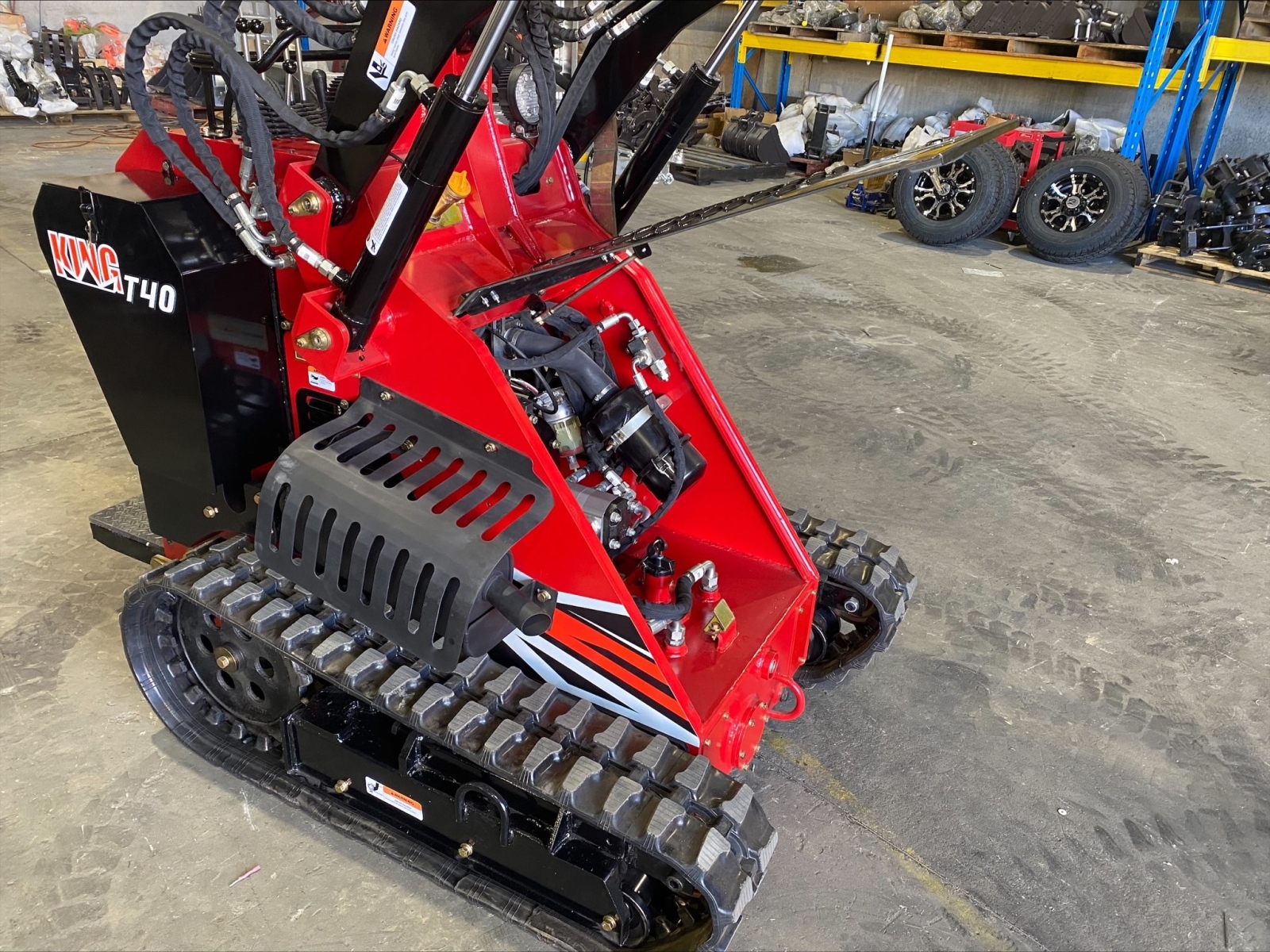

  •  Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – this King Tracked 40 Mini Loader design gives you better traction and a lighter footprint meaning you can go anywhere with almost no trace

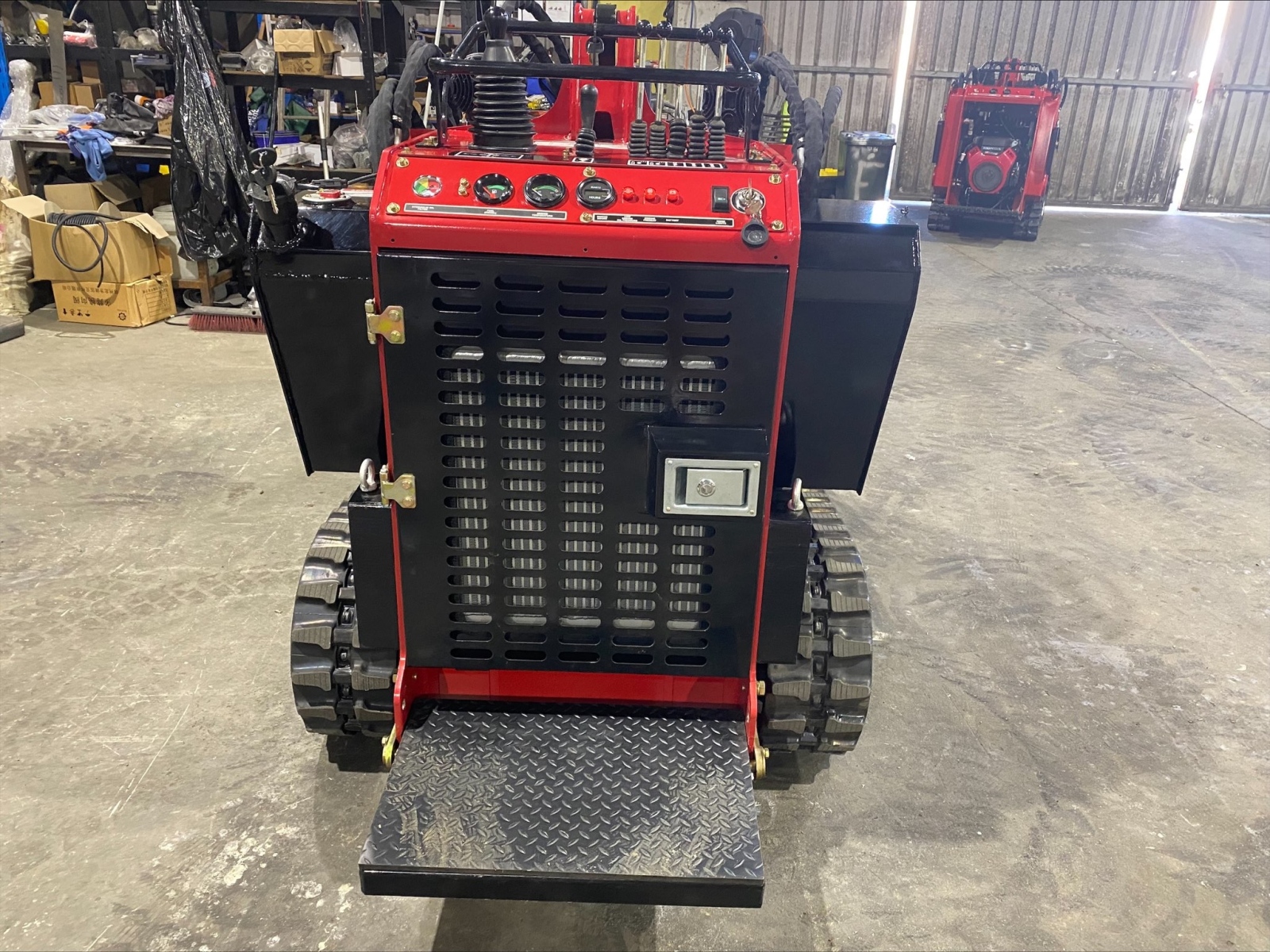

  •  Engine Access Panel Hinged and Lockable – this gives you easy access to all your components of your King Tracked 40 Mini Loader
  •  Heat-Treated Pins and Greaseable Bronze Bushes – this gives you longer life for your King Tracked 40 Mini Loader
  •  Tie Down Locations – safe security for transporting for your King Tracked 40 Mini Loader
  •  Emergency Stop Switch – quick and easy to hit in case of any issues while operating the machine; all standard on the King Tracked 40 Mini Loader
  •  Lift Hook Locations – if you have to lift your machine on to a site via a crane etc it can be done easily without any risk to your King Tracked 40 Mini Loader
  •  Lift Arm Safety Support – this means you are safe when using your King Tracked 40 Mini Loader

Tracked 40 Mini Loader Package Total Price Only $34,990 + GST or around $169 per week on finance

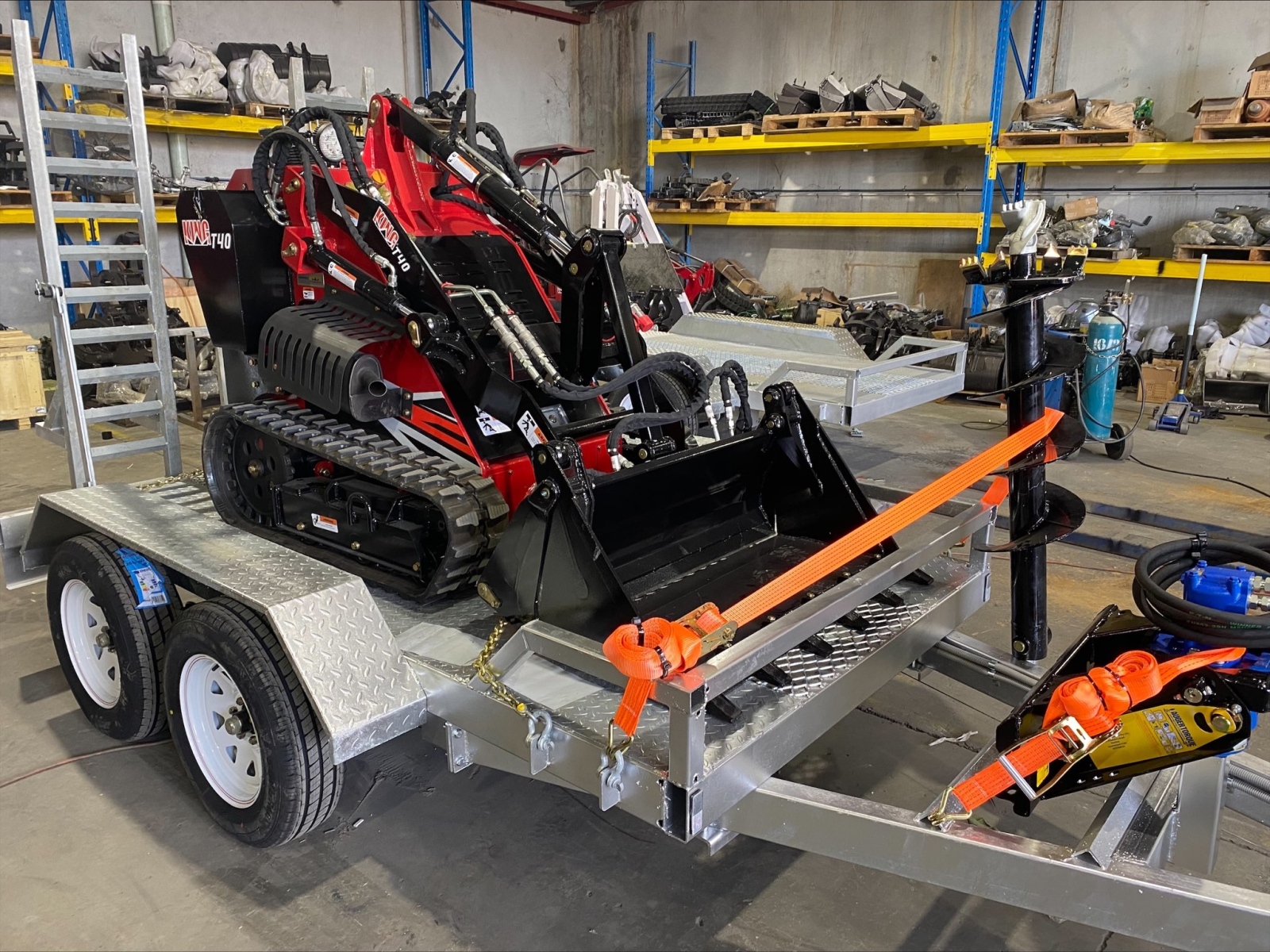

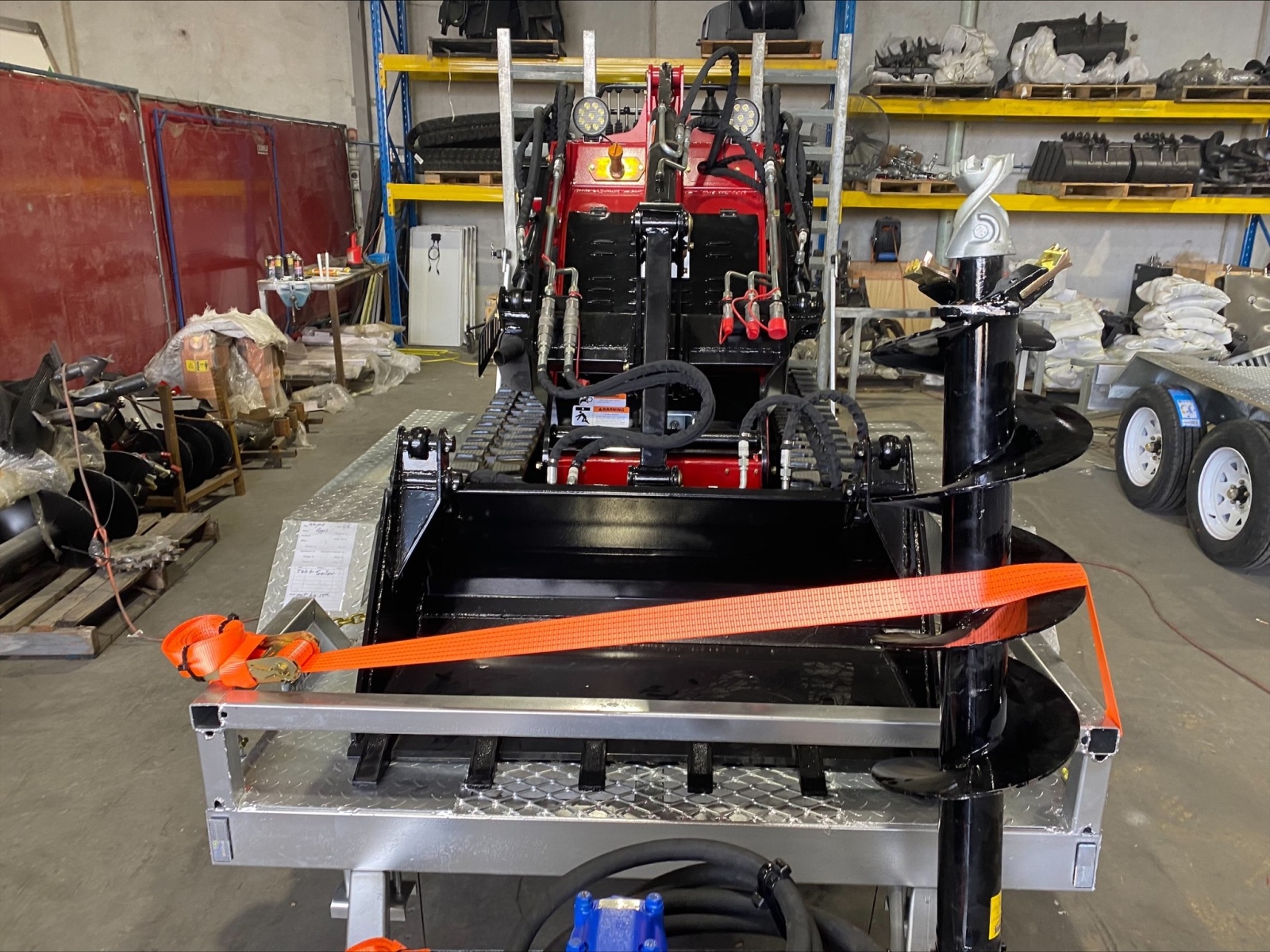

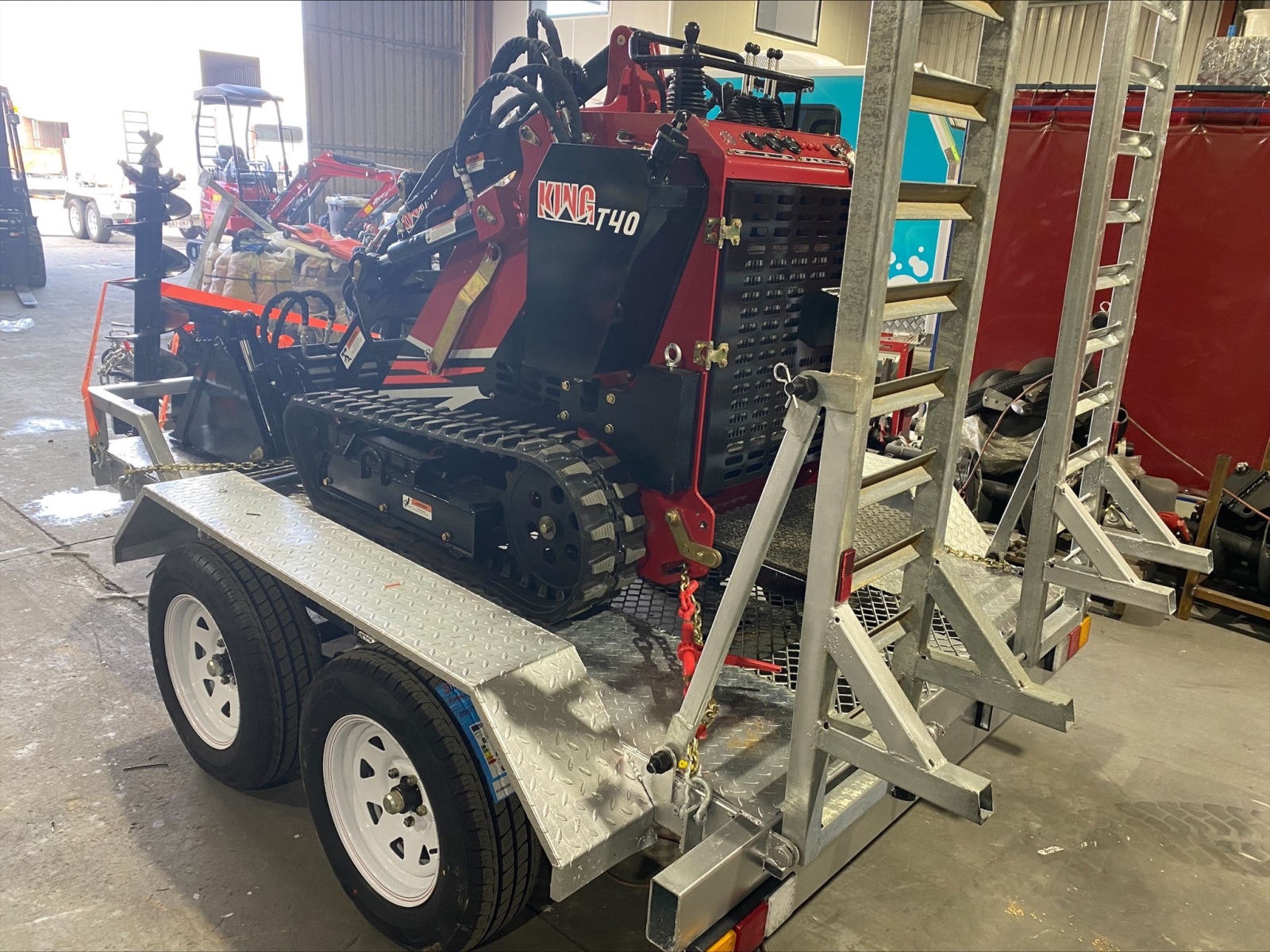

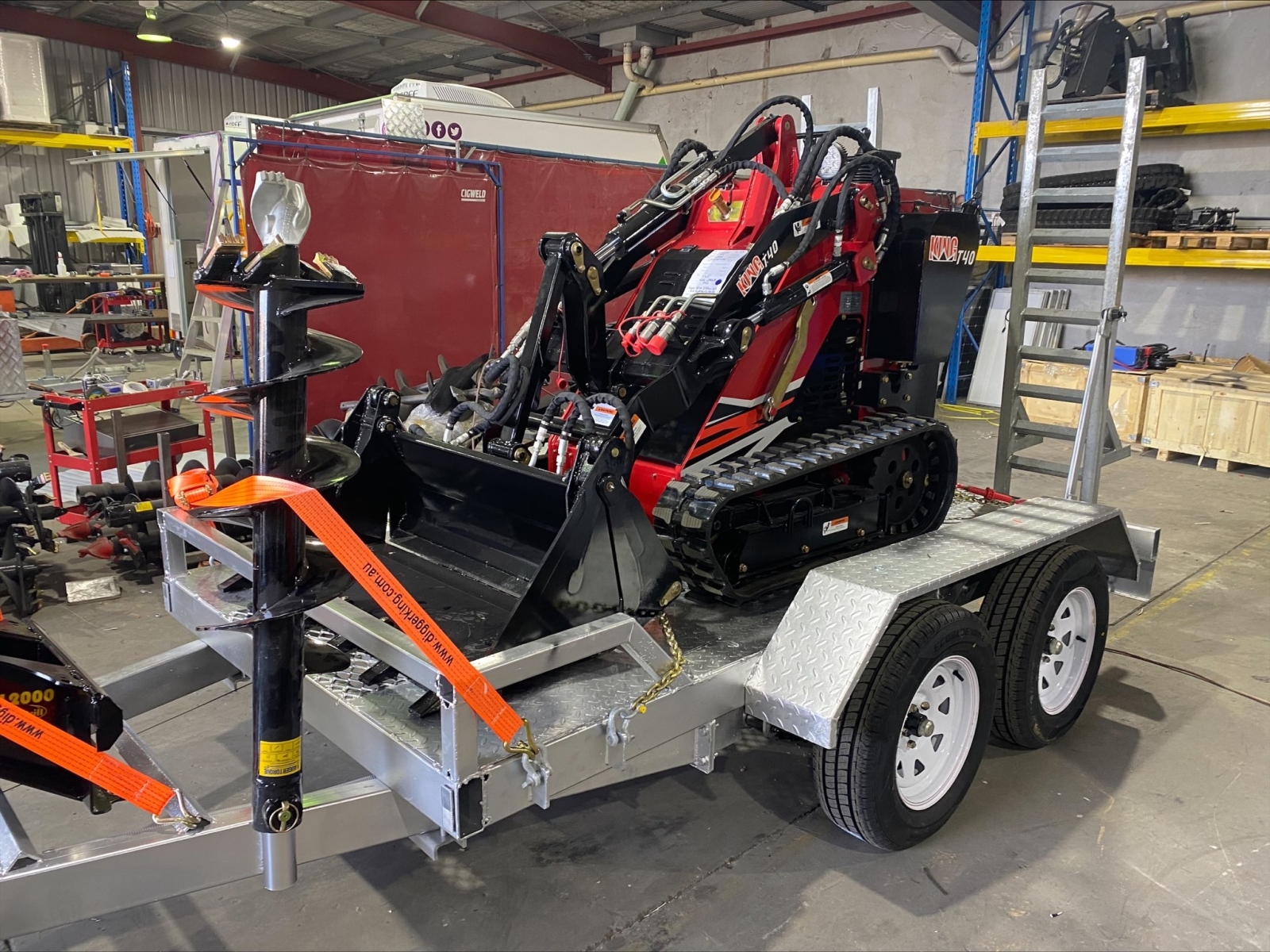

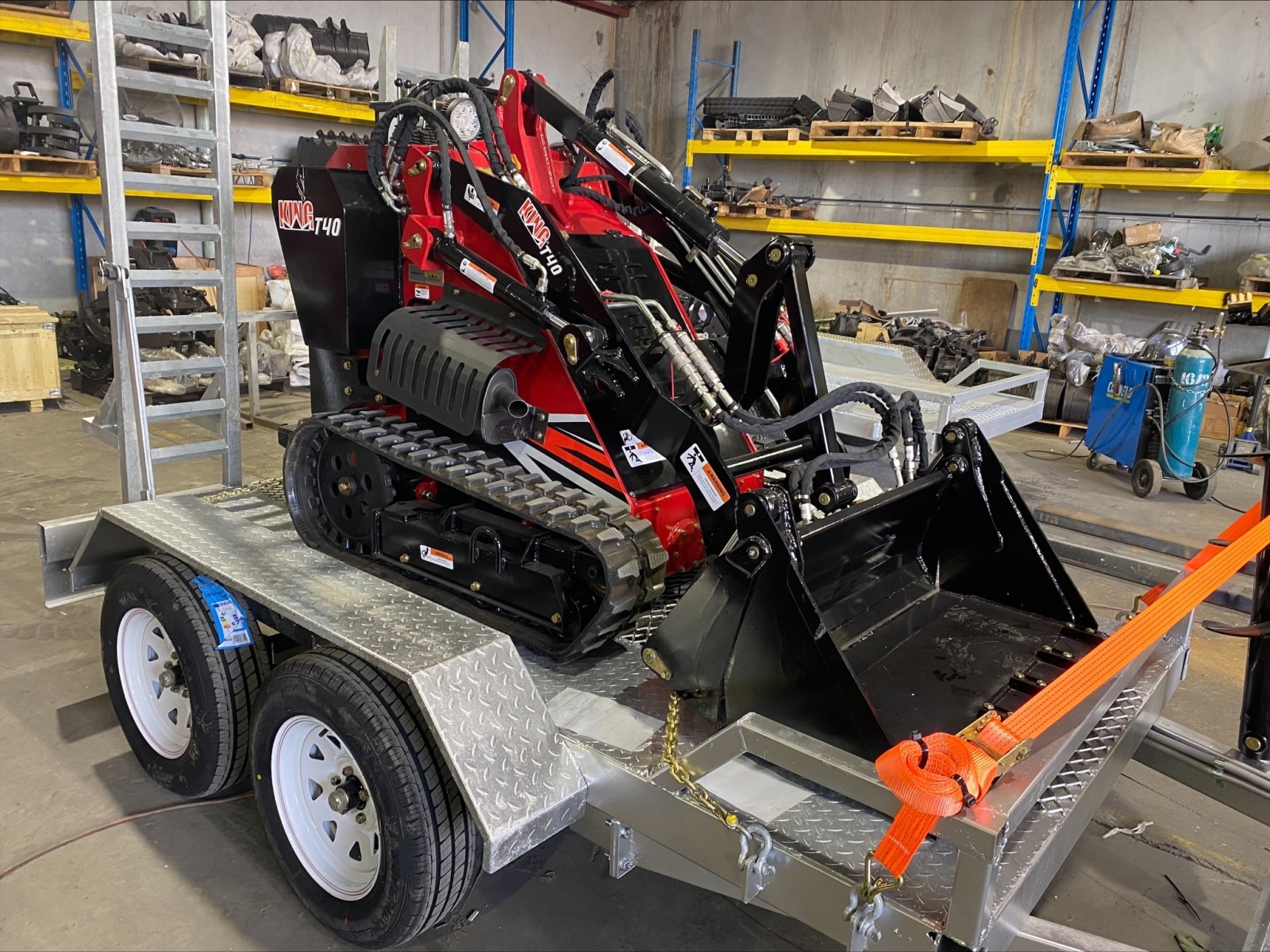

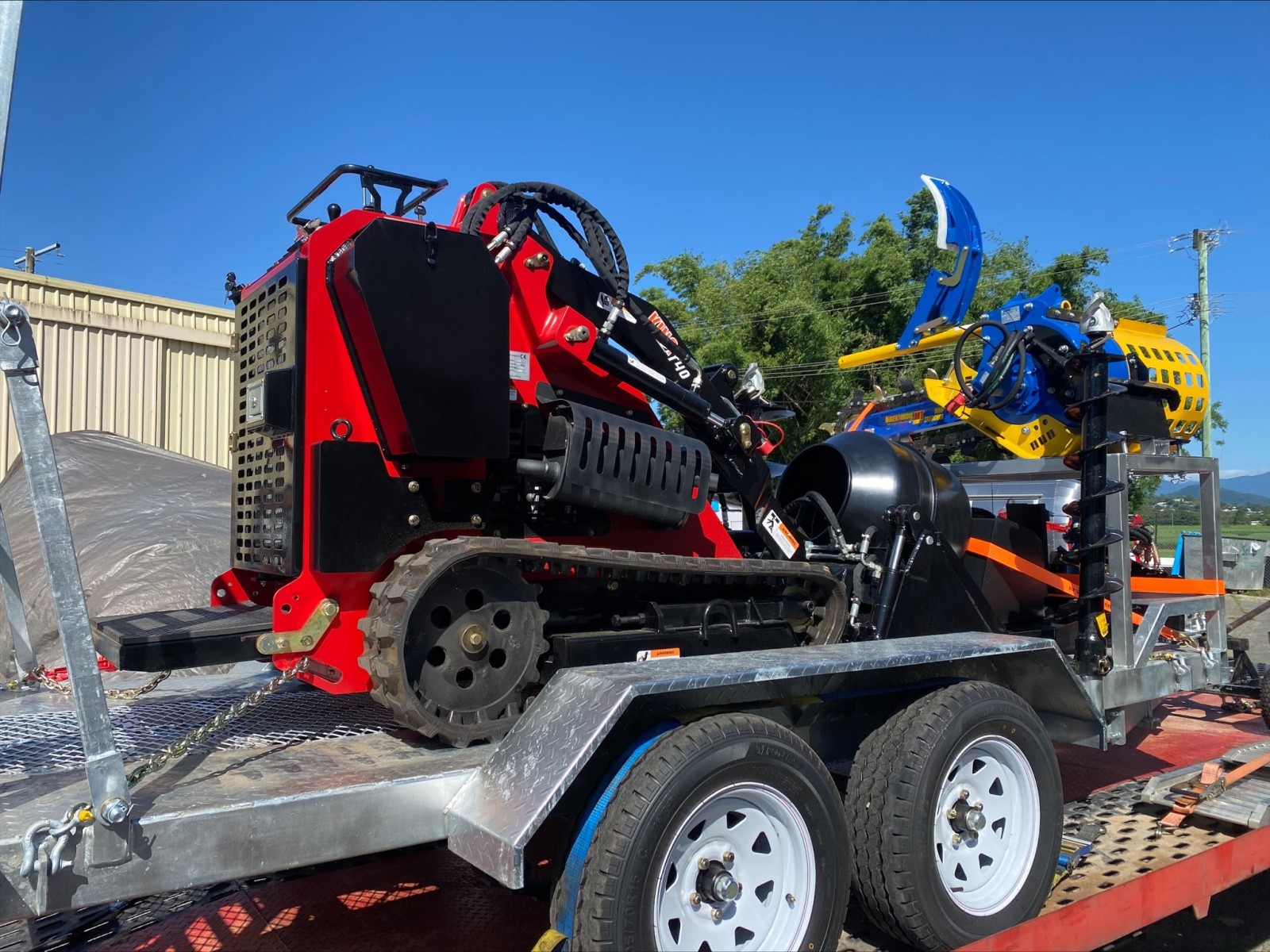

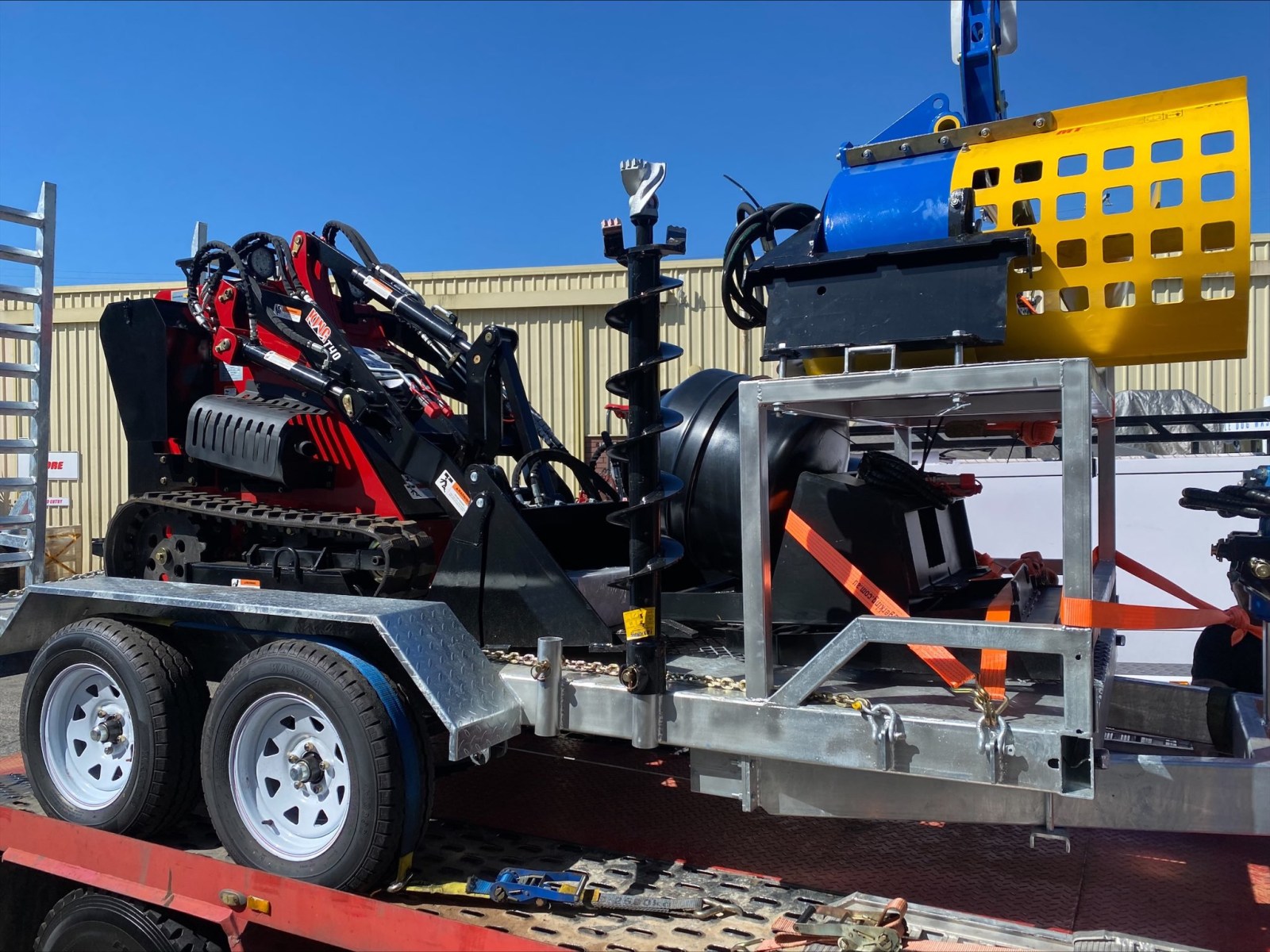

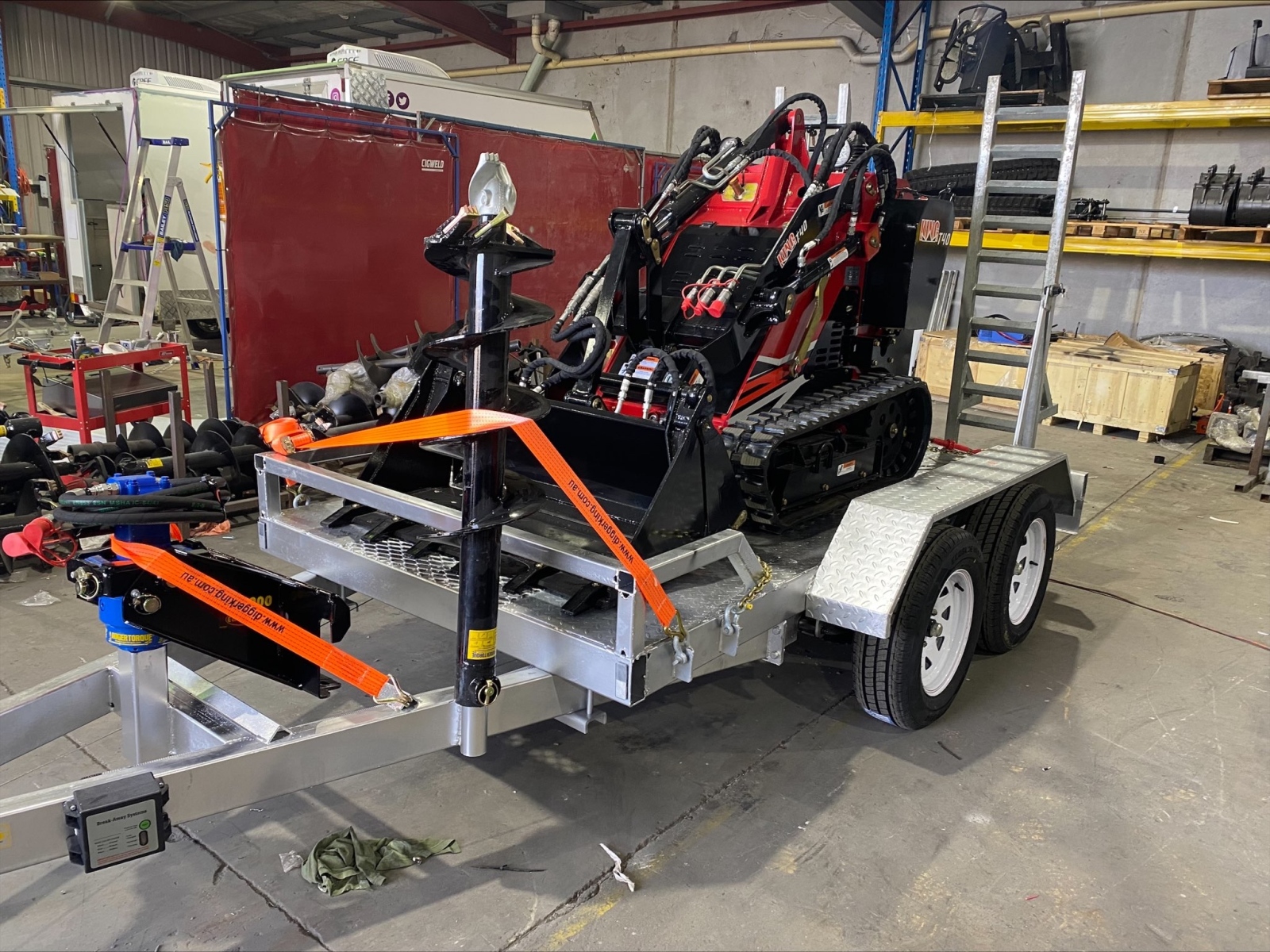

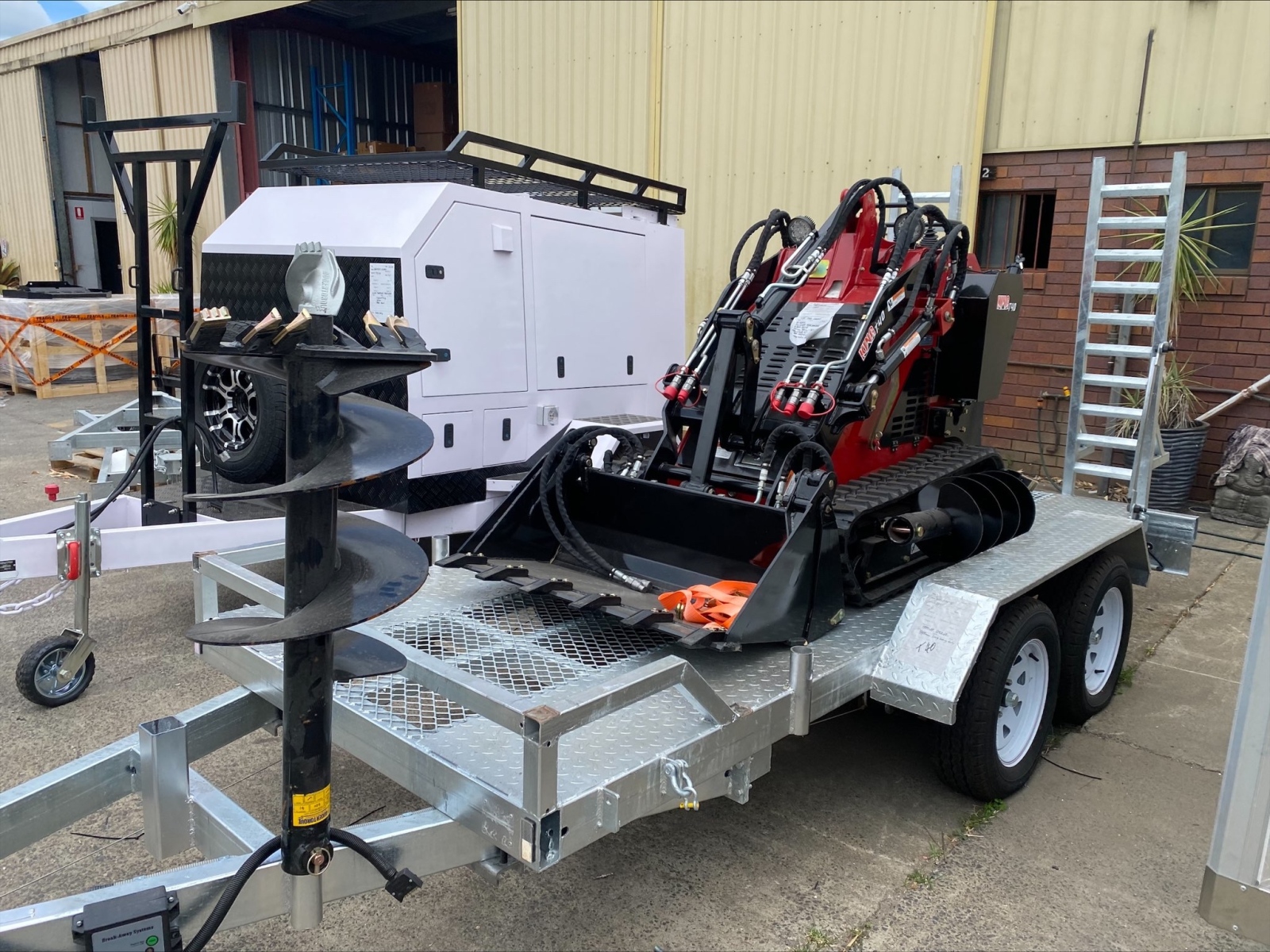

MOST POPULAR: Tracked 40 Mini Loader, Bucket and Trailer Premium Package Only $41,990+GST or around $209 per week on finance

Tracked 40 Mini Loader, Bucket and Trailer Premium Package Inclusions:

Everything in the standard Machine and Implements package, plus:

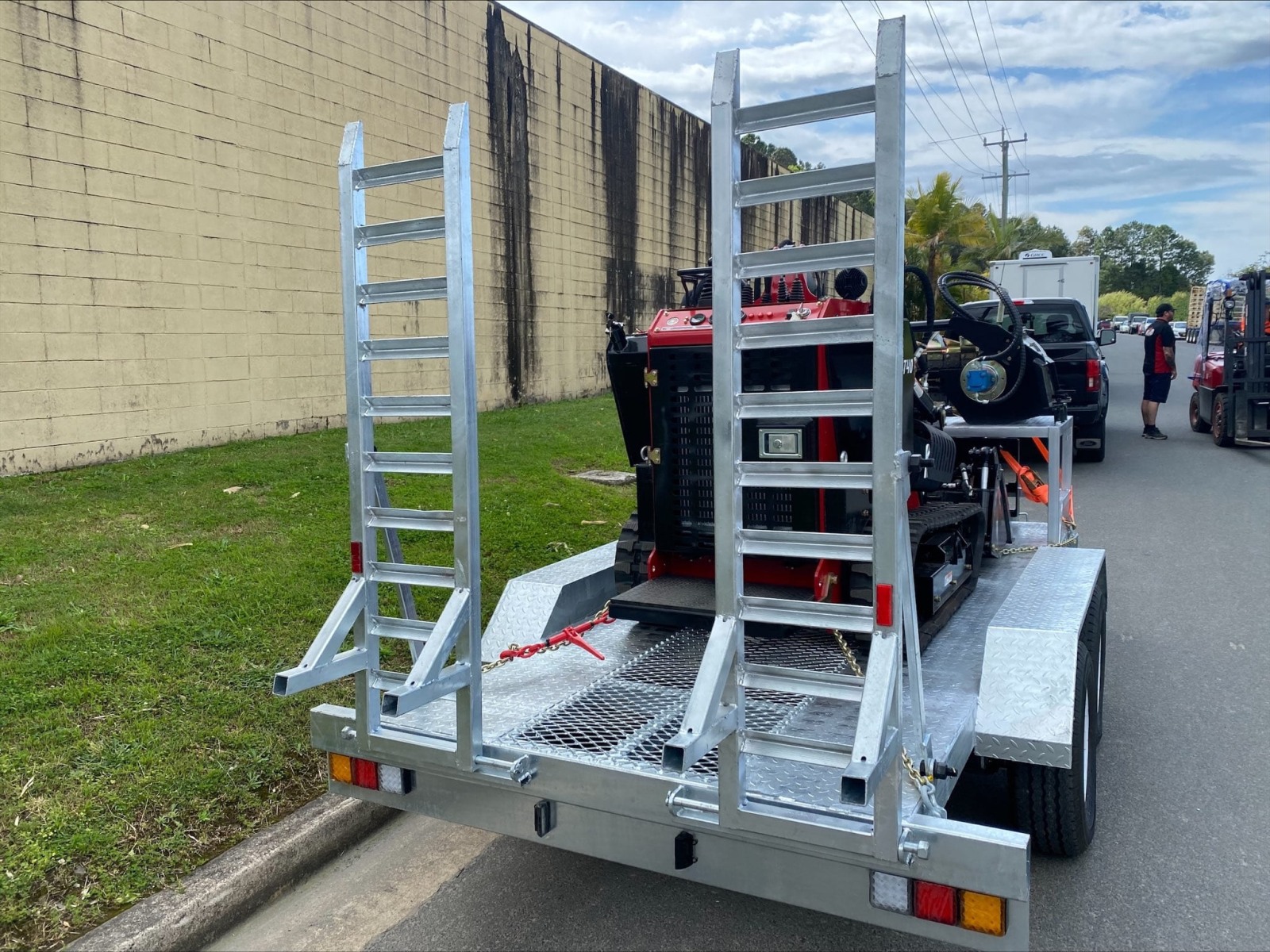

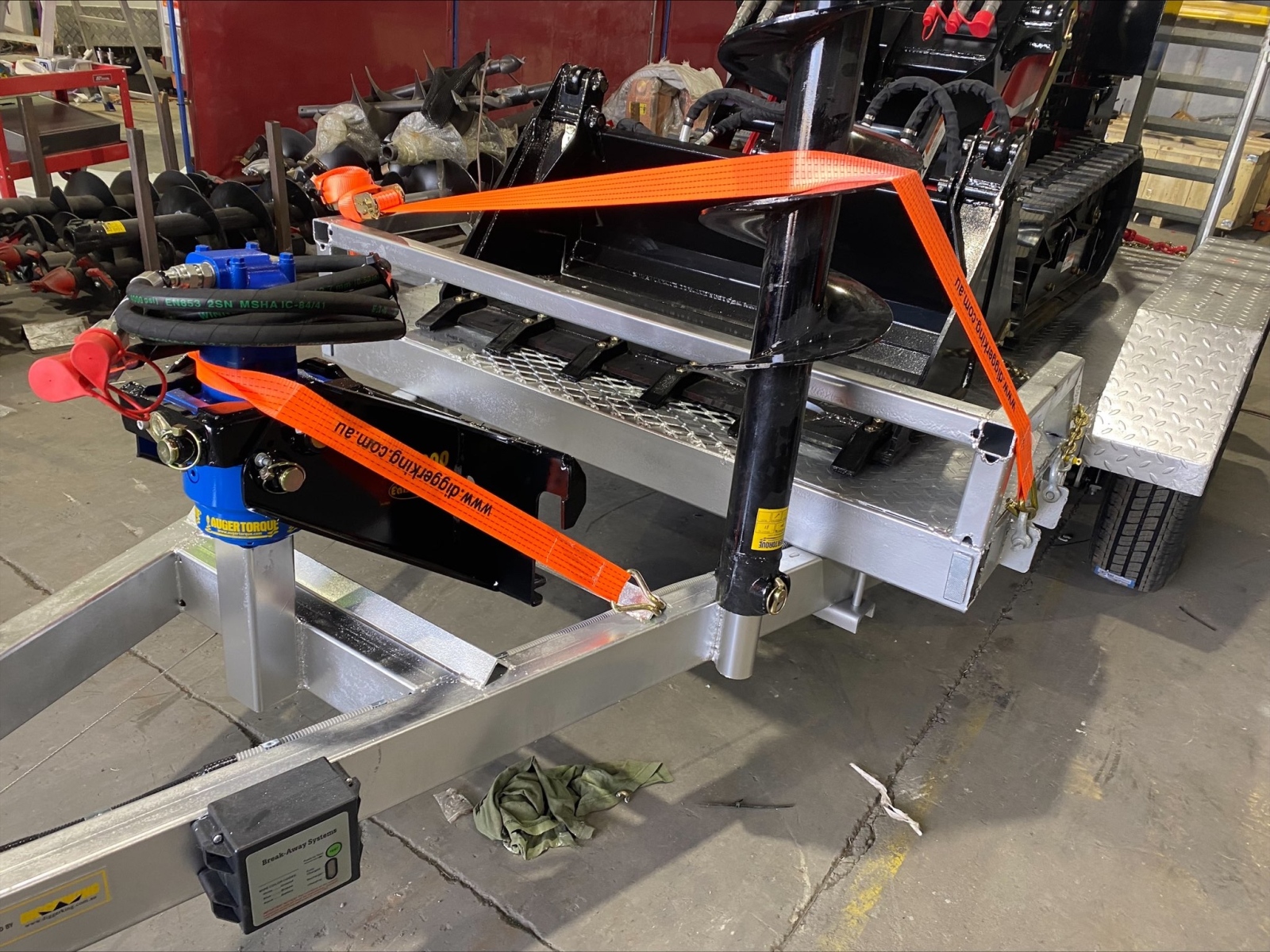

  • Super Duty Trailer with 4 wheel electric brakes and easy fold down ramps
  • Trailer dimensions – 2900 mm (L) plus 1400 for draw bar x 2025 wide x 505 mm (H)
  • Implement rack
  • Tie down straps
  • All set up for you turnkey

Tracked 40 Mini Loader, Bucket and Trailer Premium Package Only $41,990+GST or around $209 per week on finance

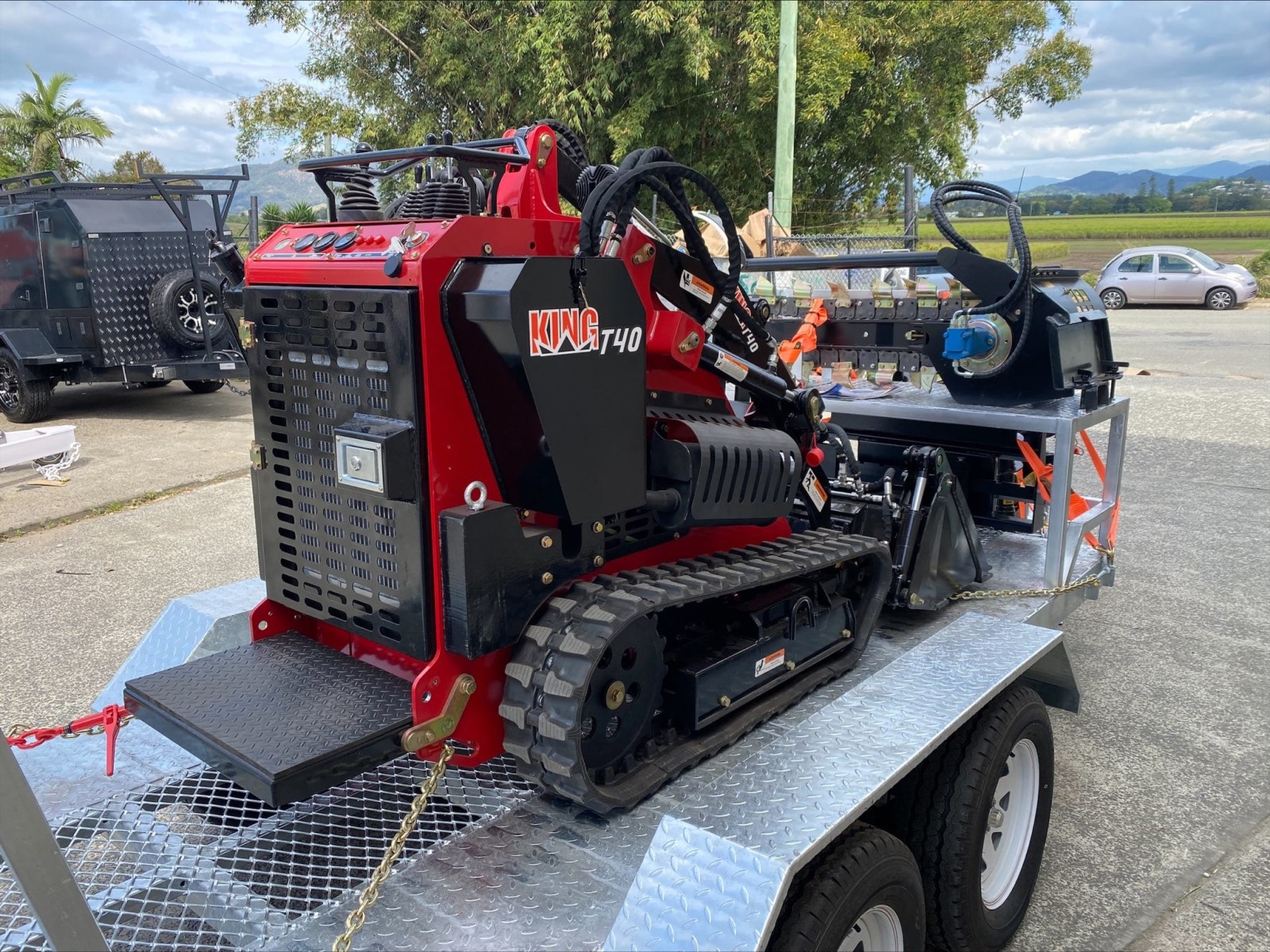

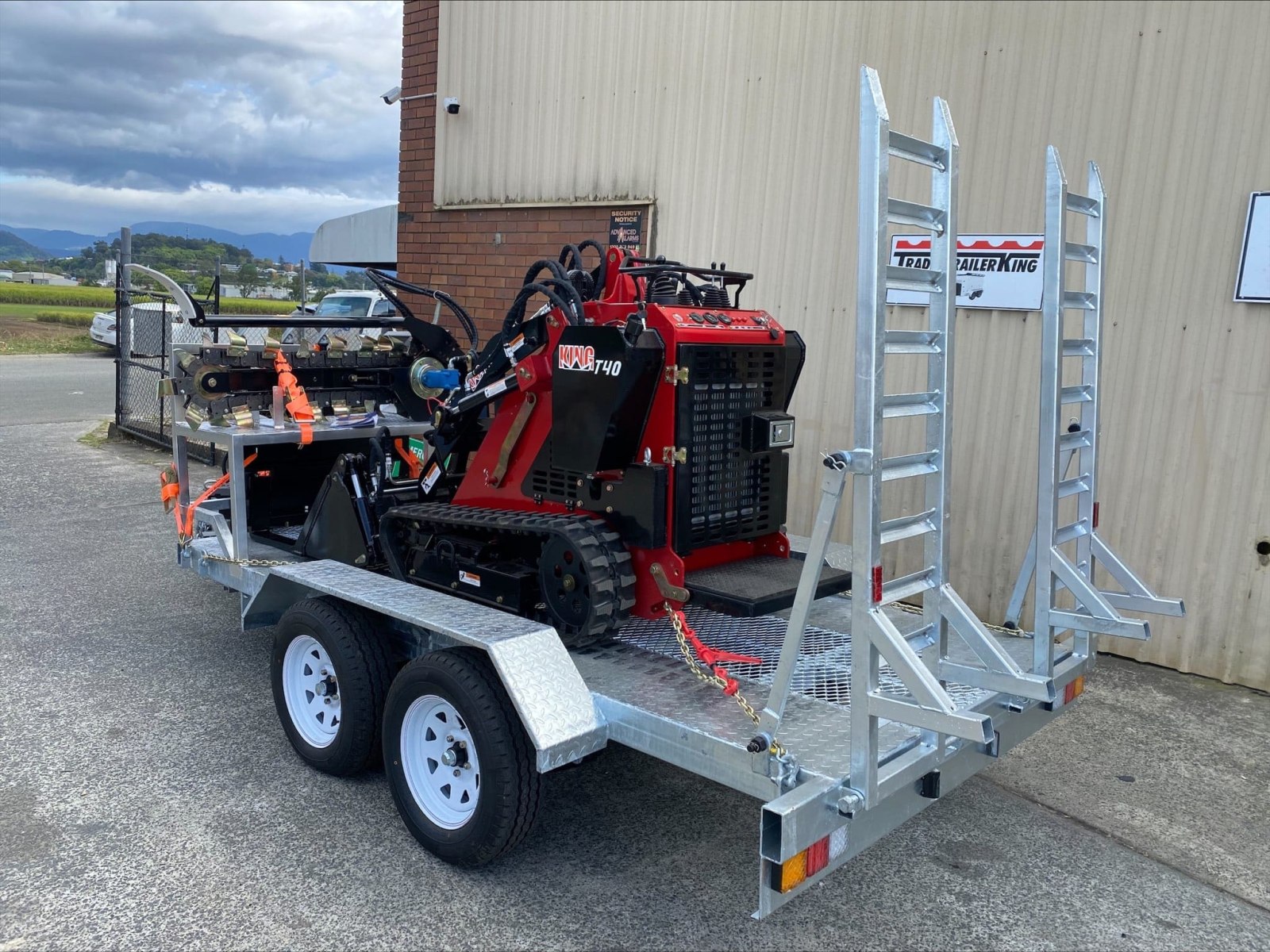

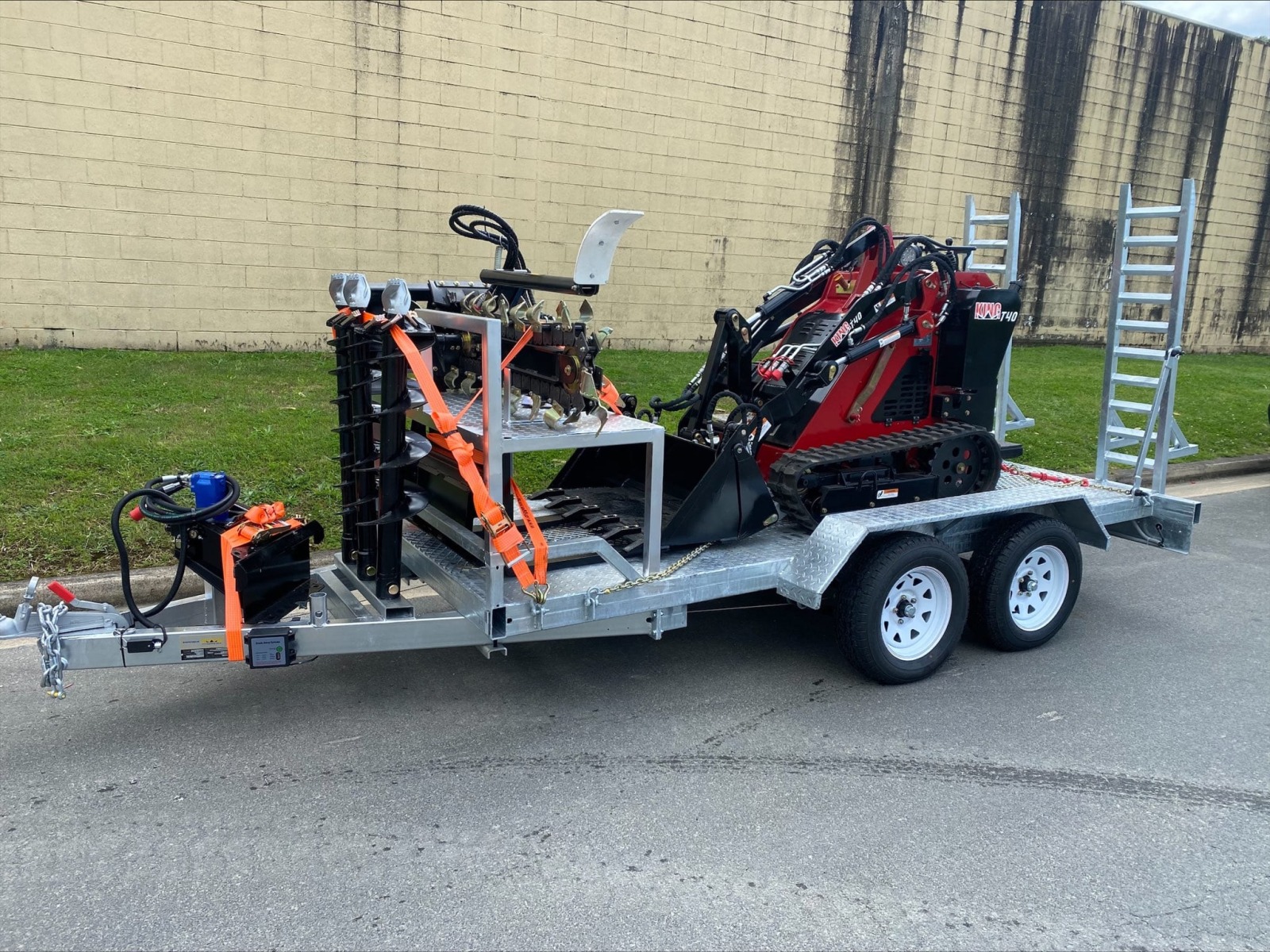

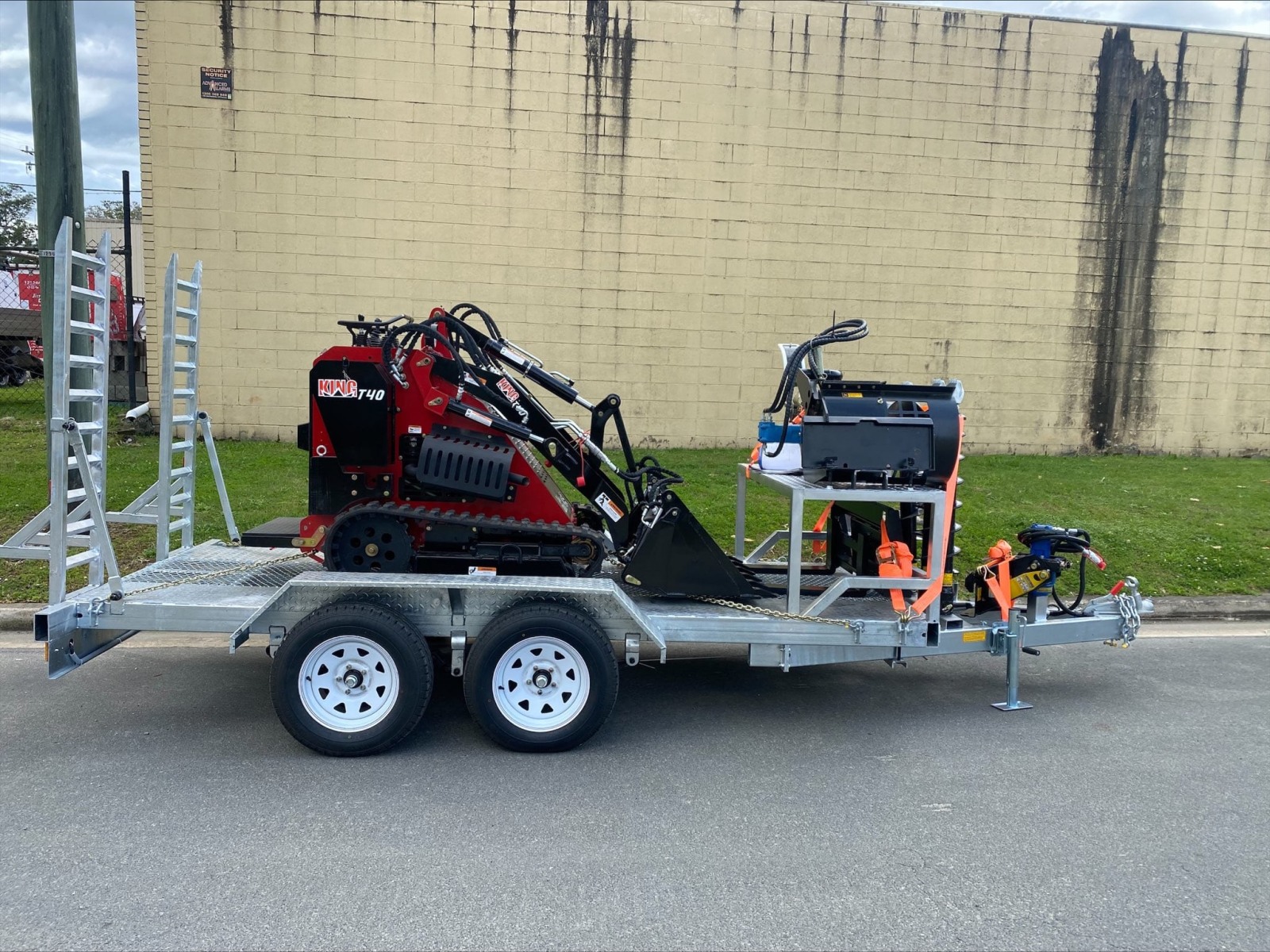

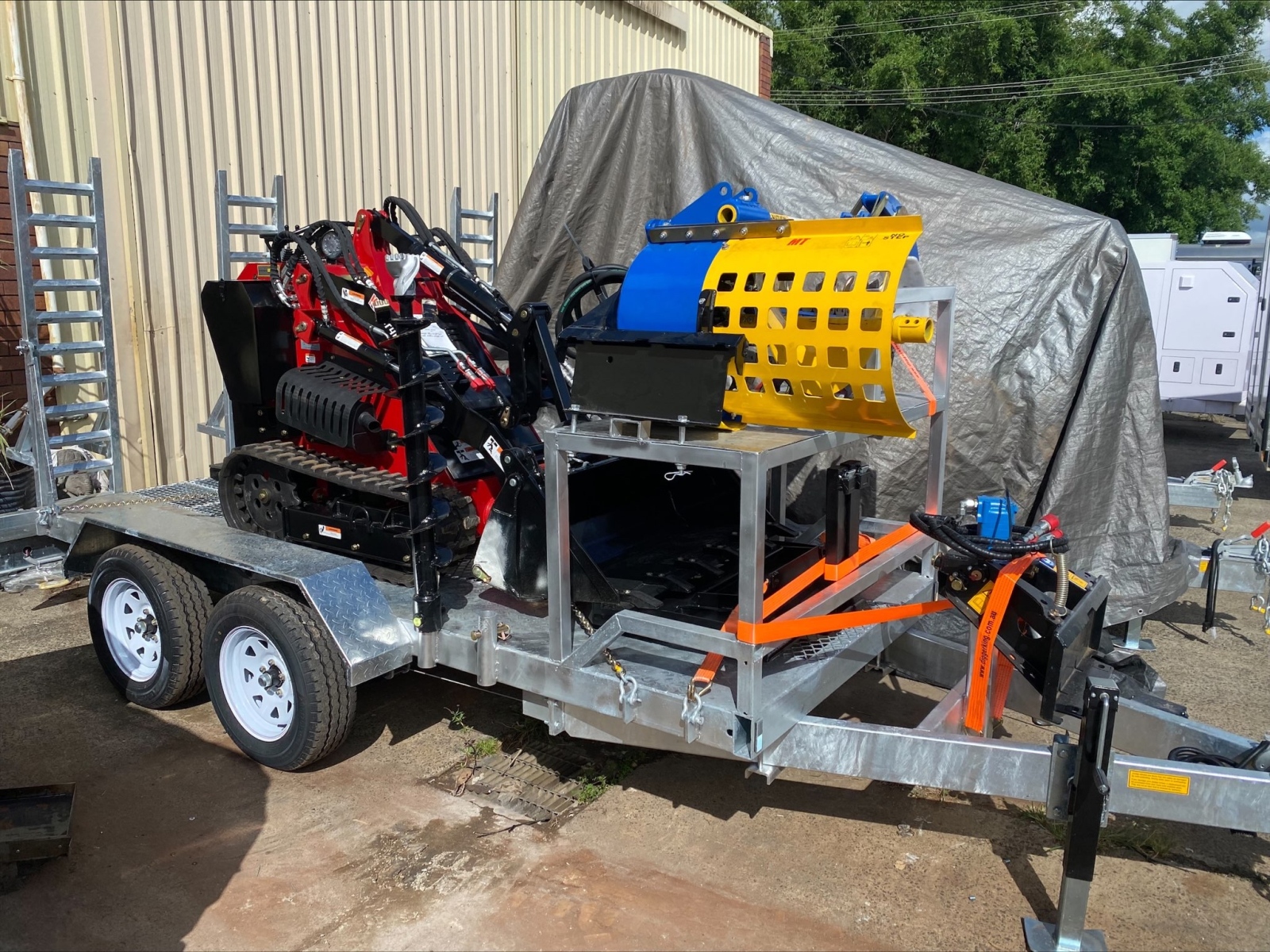

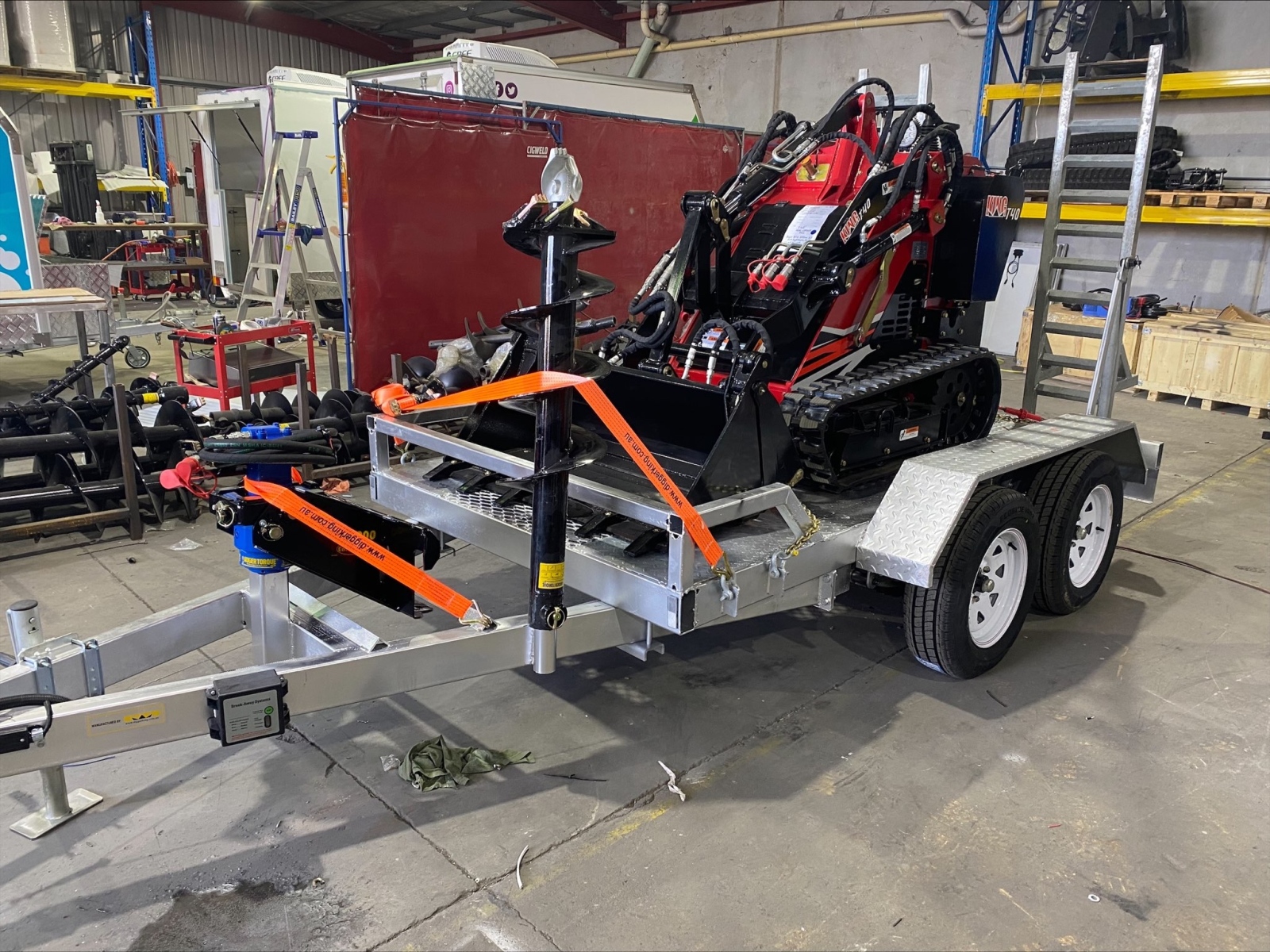

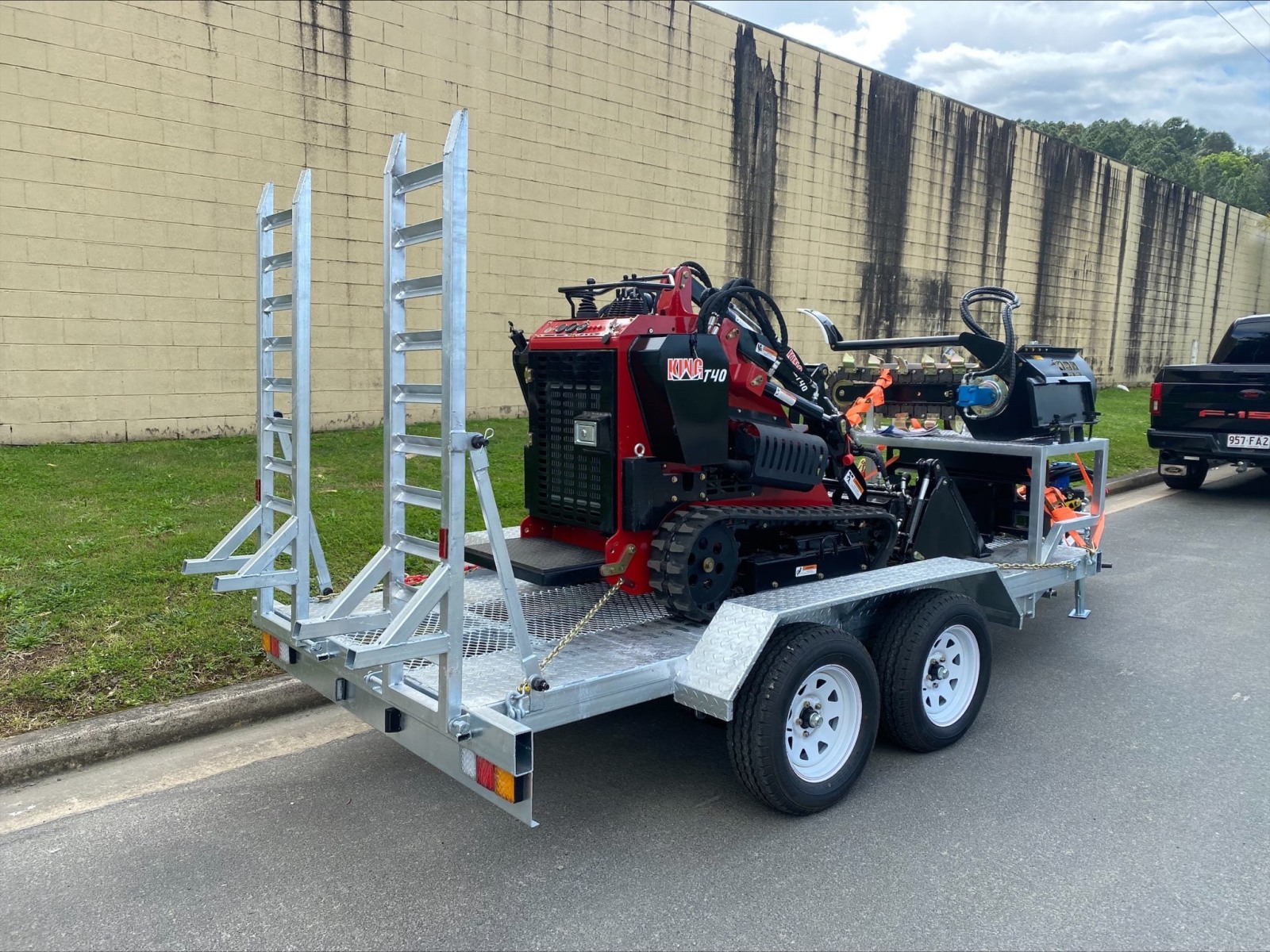

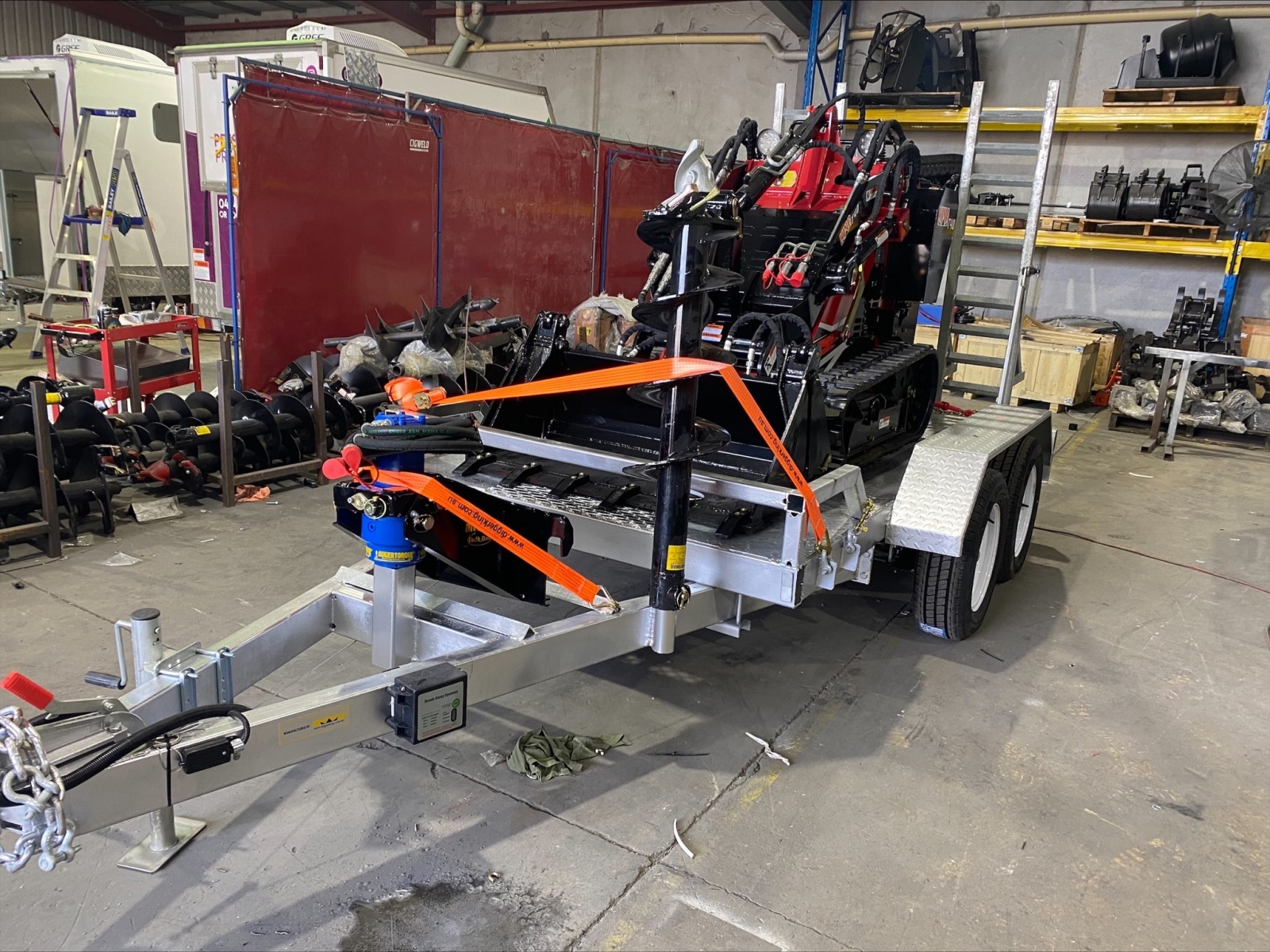

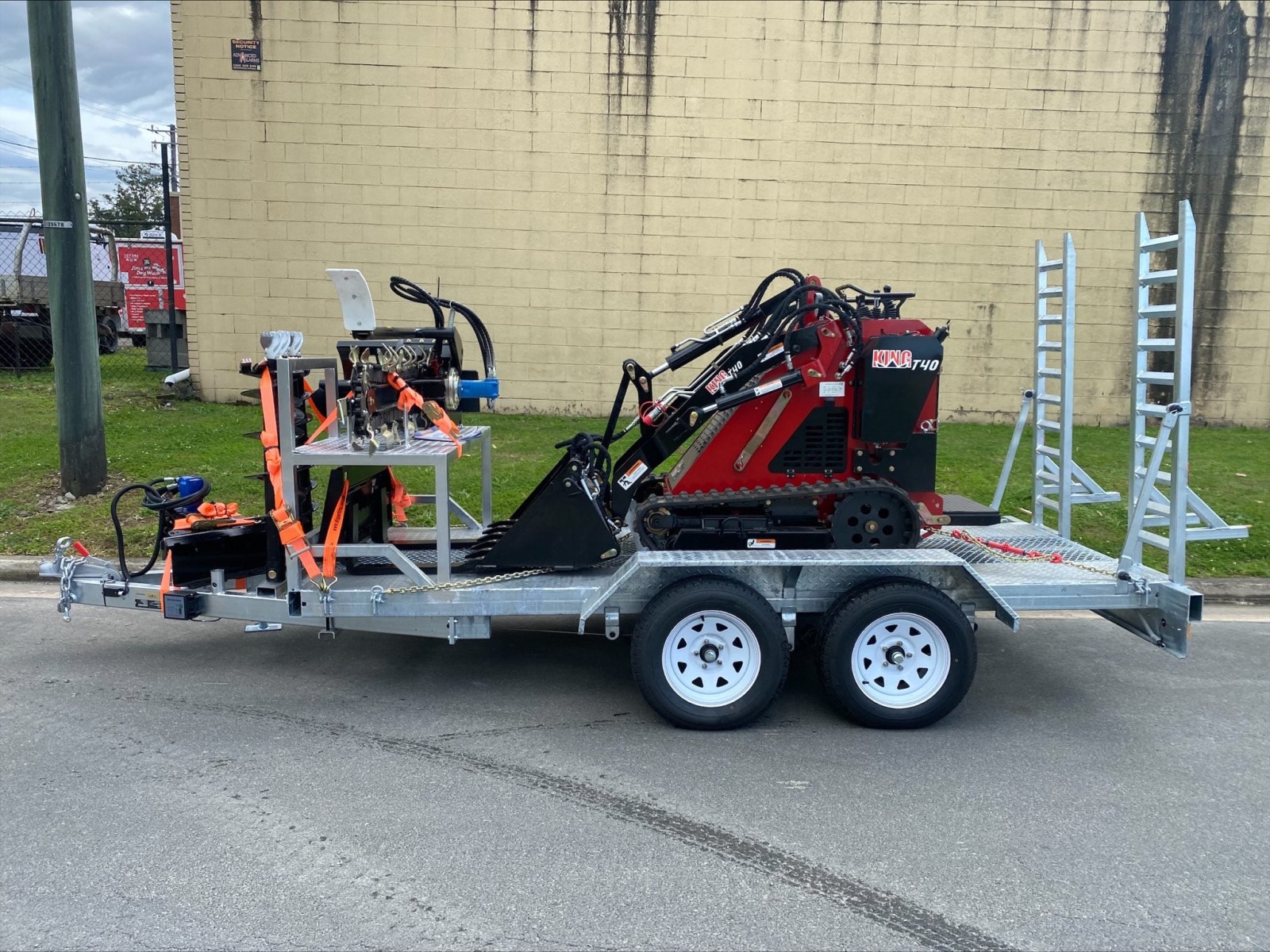

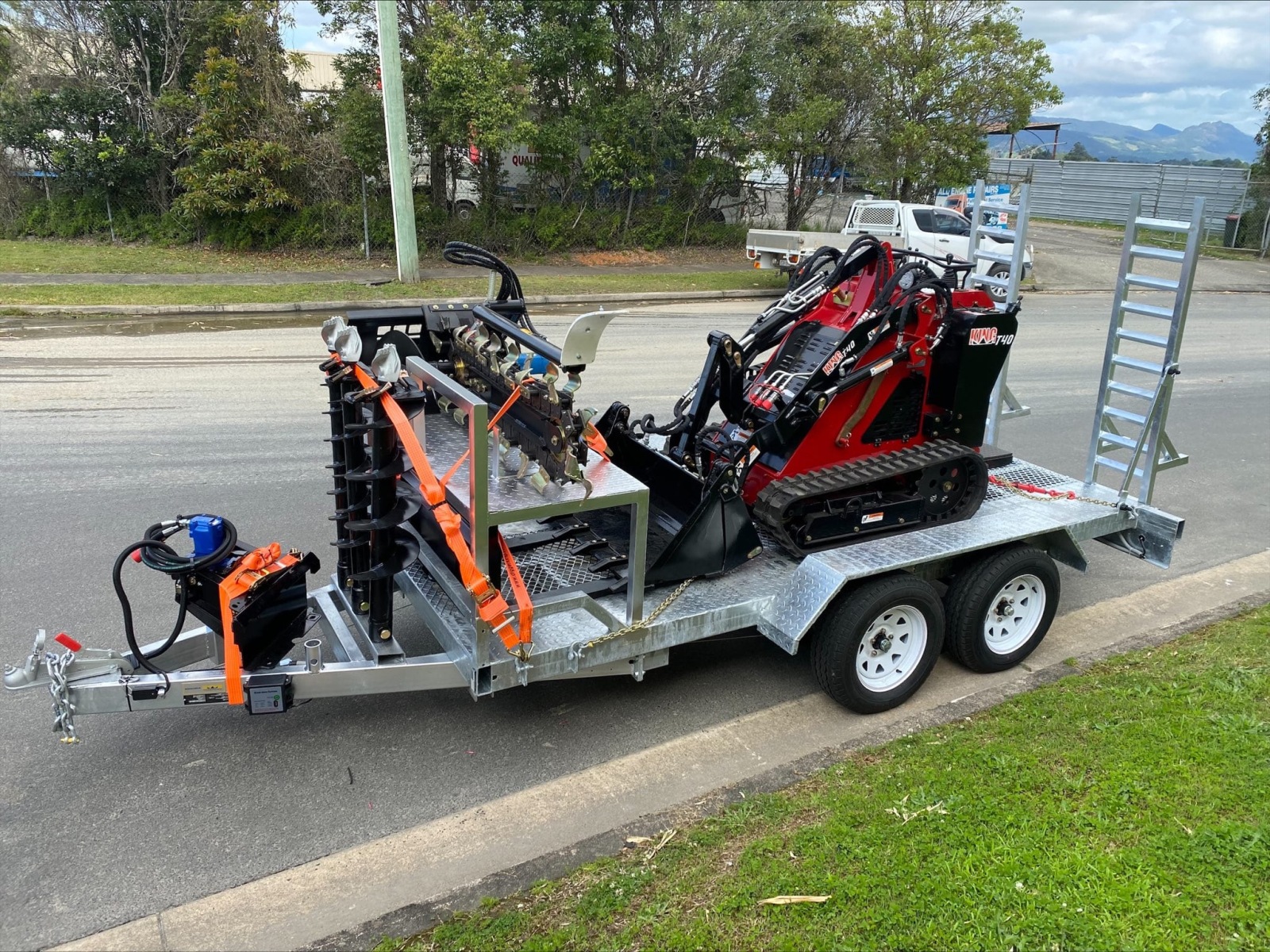

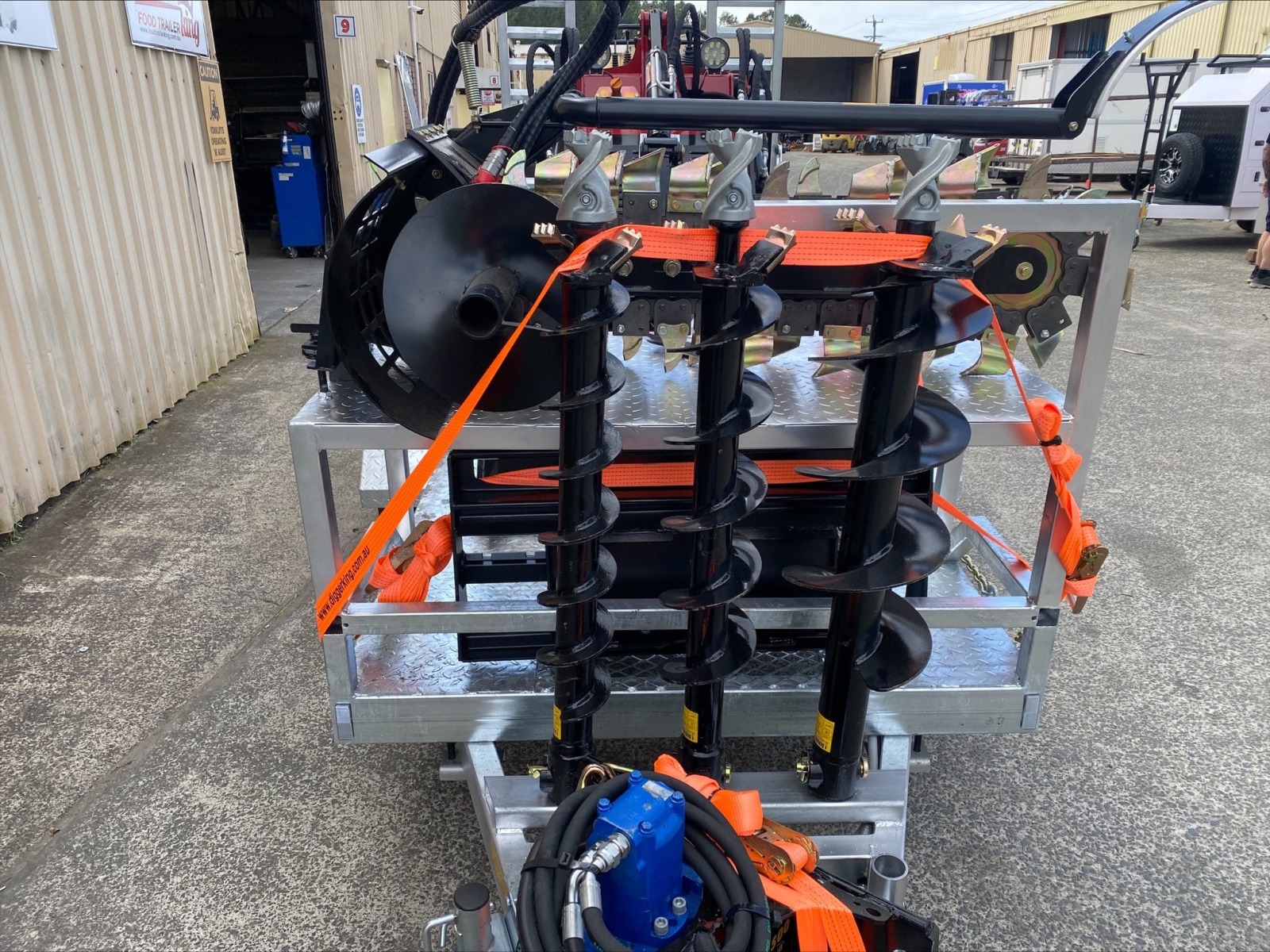

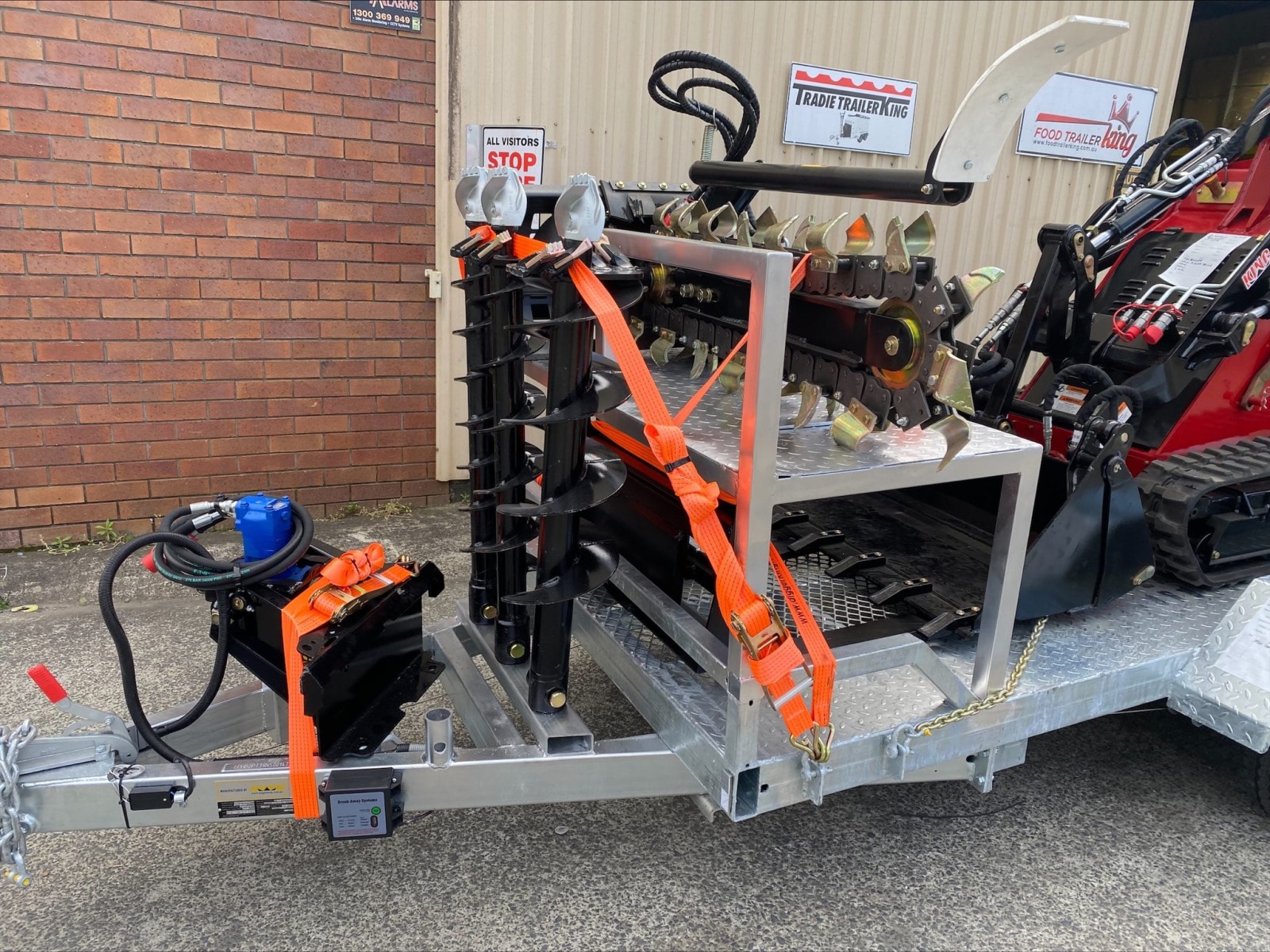

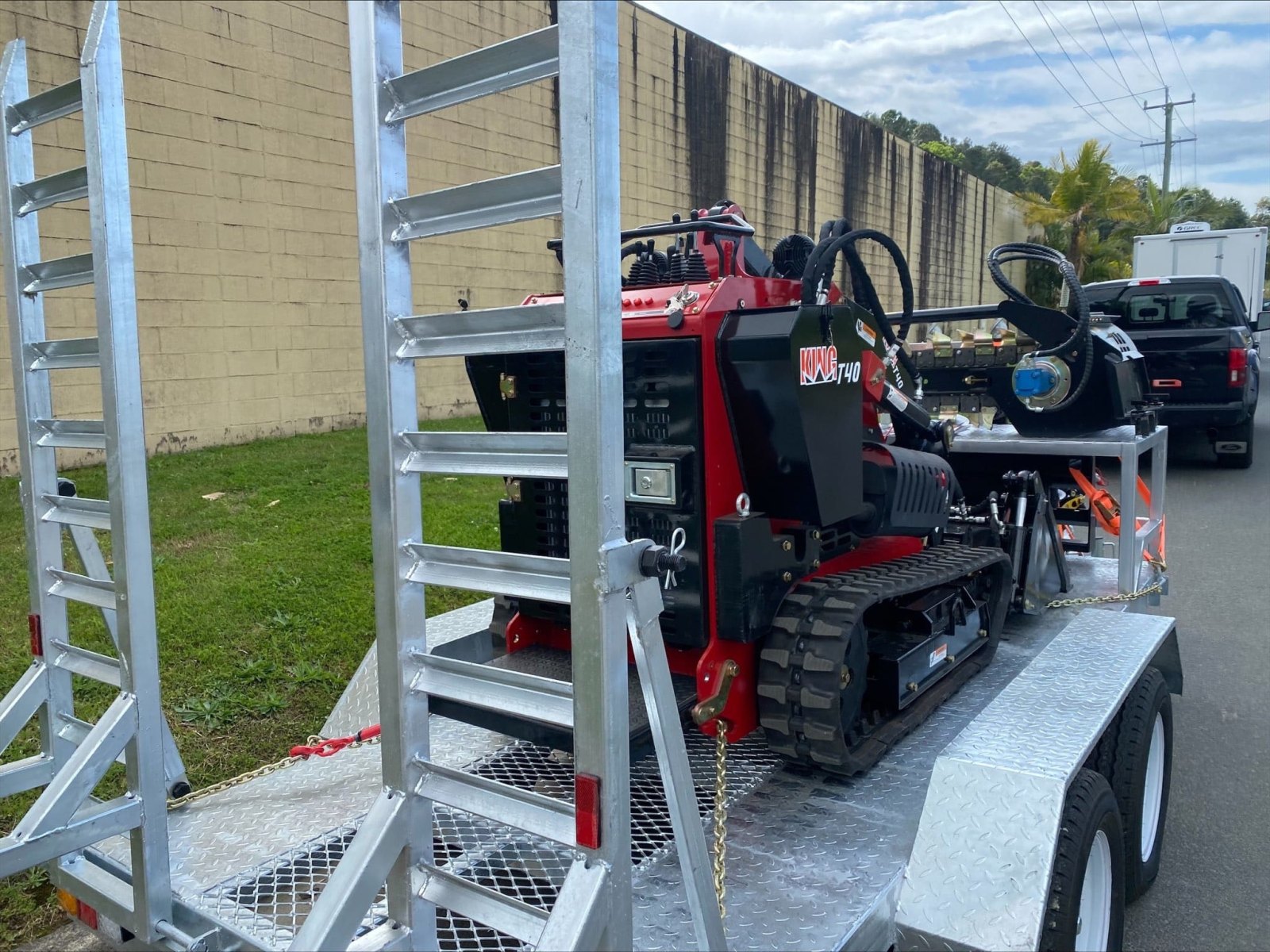

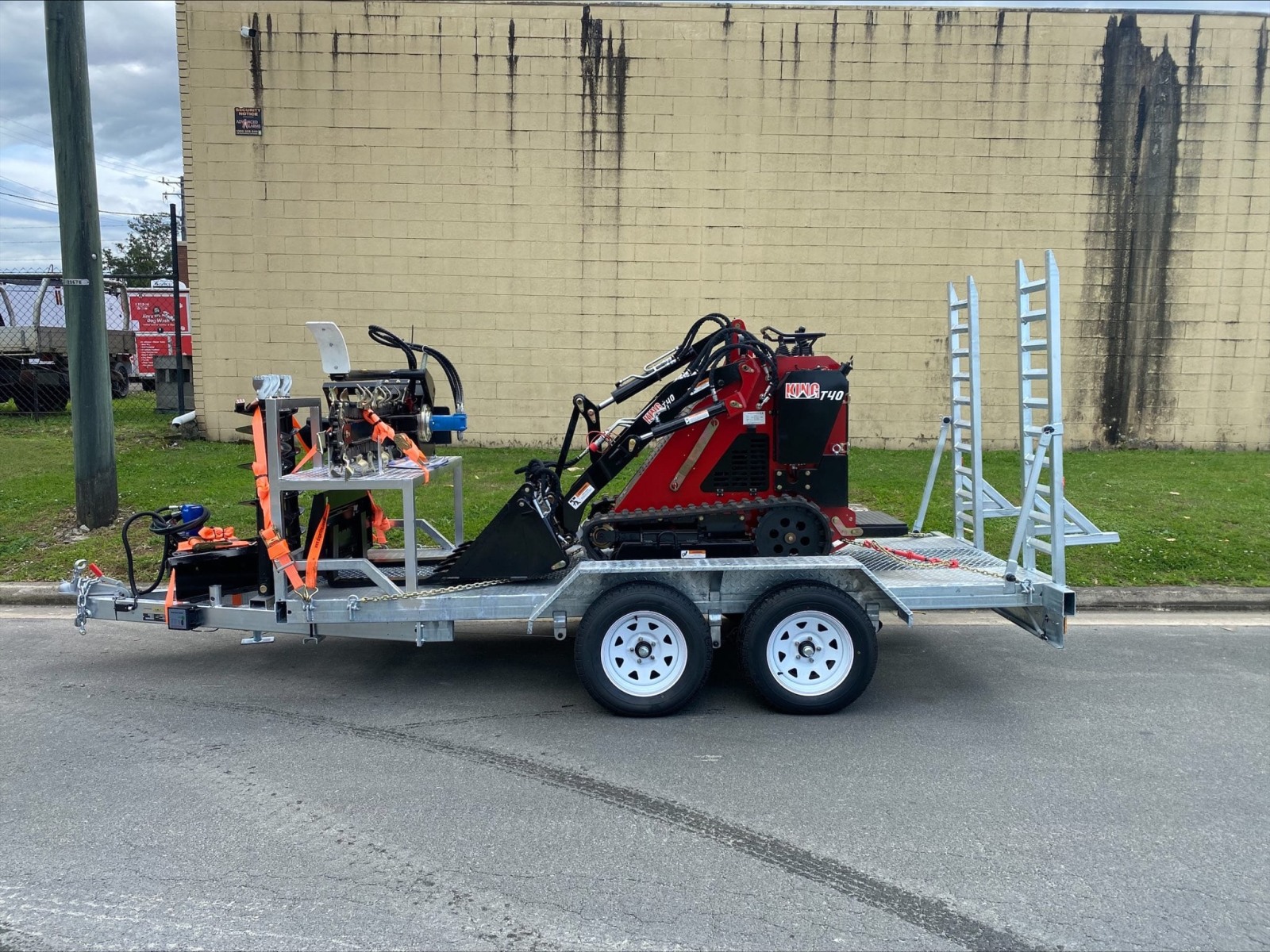

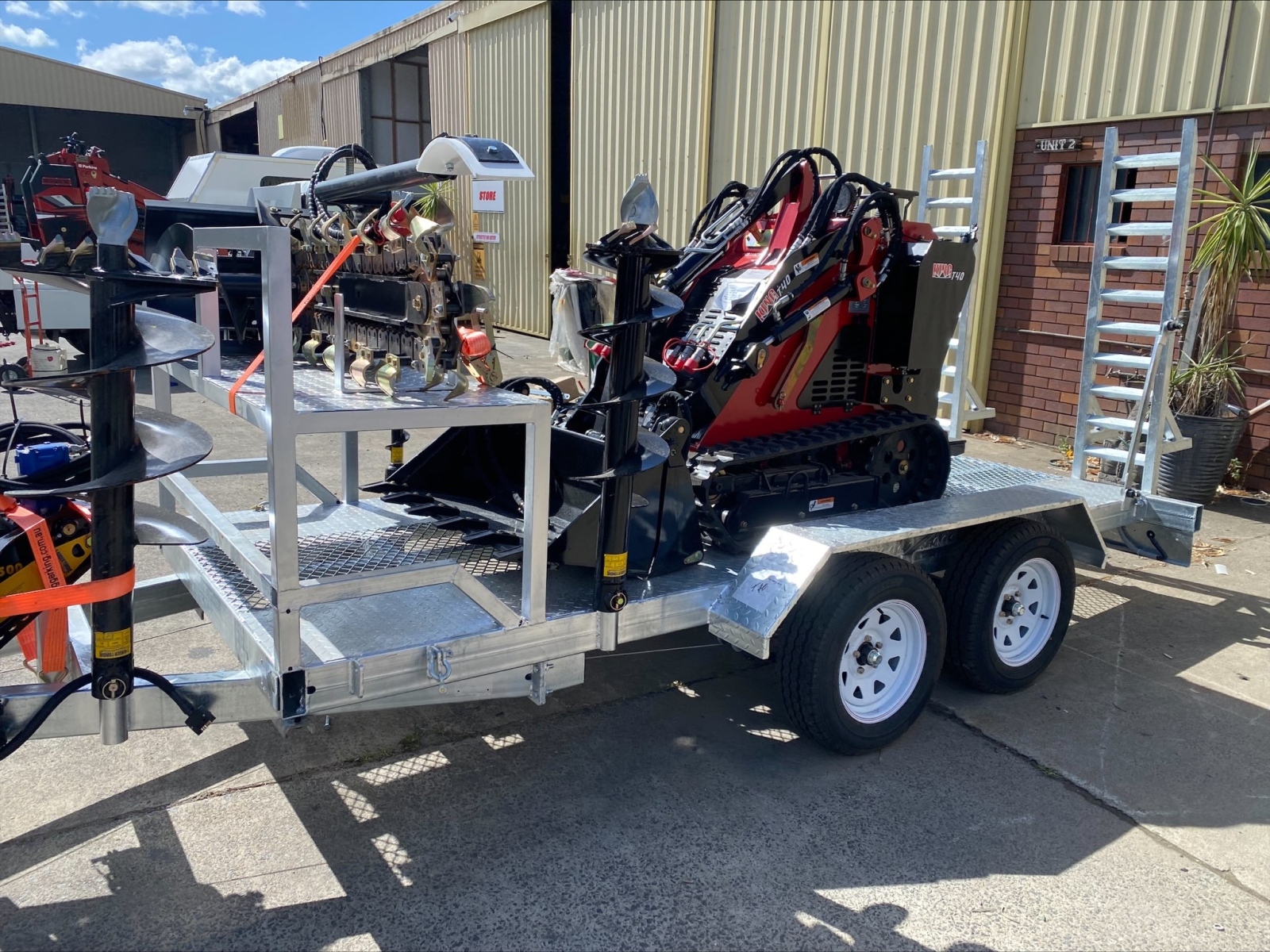

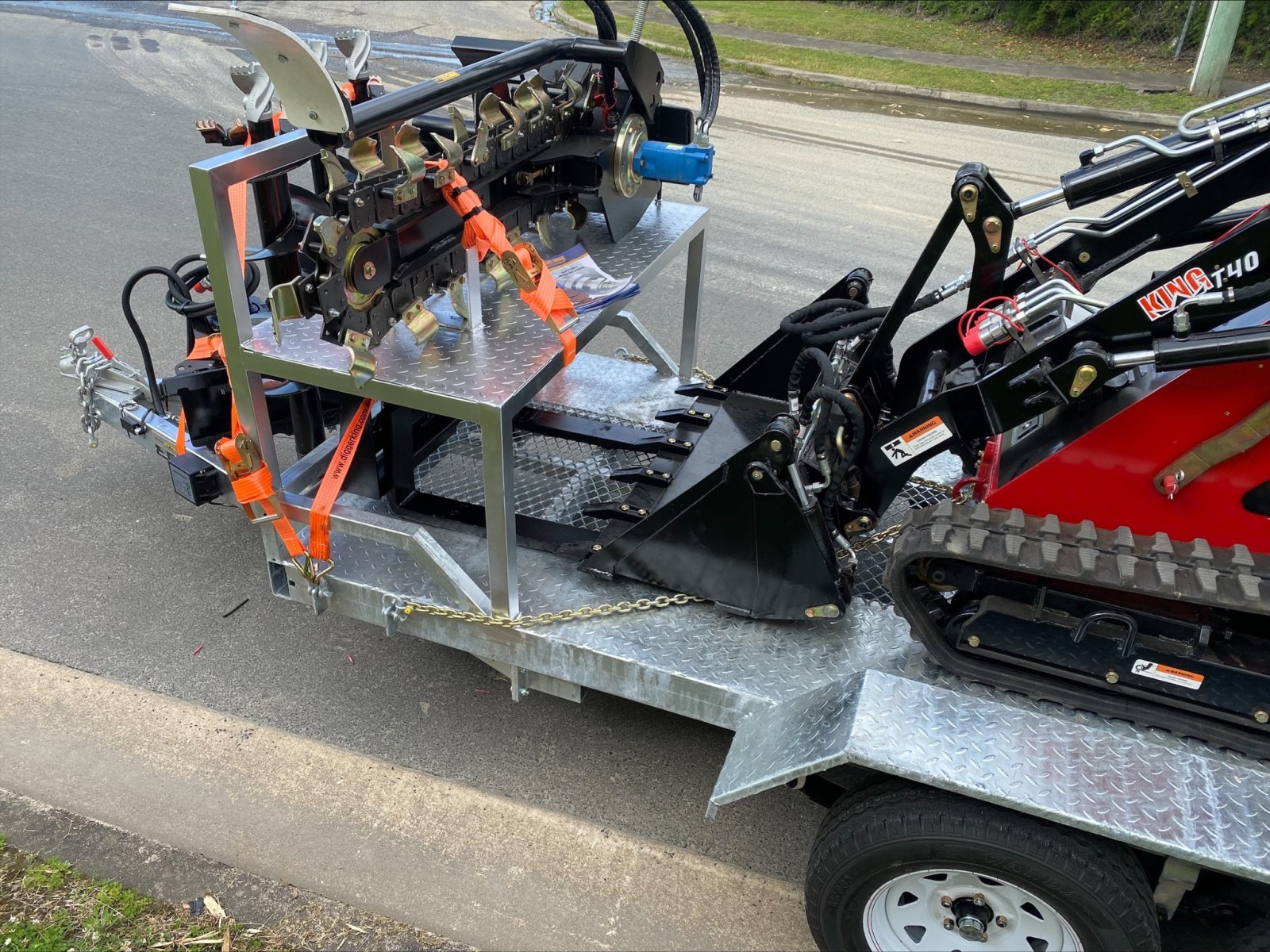

Tracked 40 Mini Loader 3900 Combo – Massive 3900mm Super Duty Trailer WITH Attachments Only $56,990+GST or around $279 per week on finance

  •  4 in 1 Bucket
  •  Heavy Duty Trailer – 3900mm
  •  Heavy Duty Set Of Forks
  •  Trencher Attachment
  •  Auger Driver With All 3 Auger Bits – 150mm, 200mm, 300mm
  •  Mounting Kit For Trencher
  •  Chain Down Kit
  •  Tool Box Kit
  •  Filter Kit
  •  Machine Load Capacity – 450 kg
  •  Machine Weight – 1600 kg
  •  Machine Dimensions – 2519 mm (L) x 1084 mm (W) x 1415 mm (H)

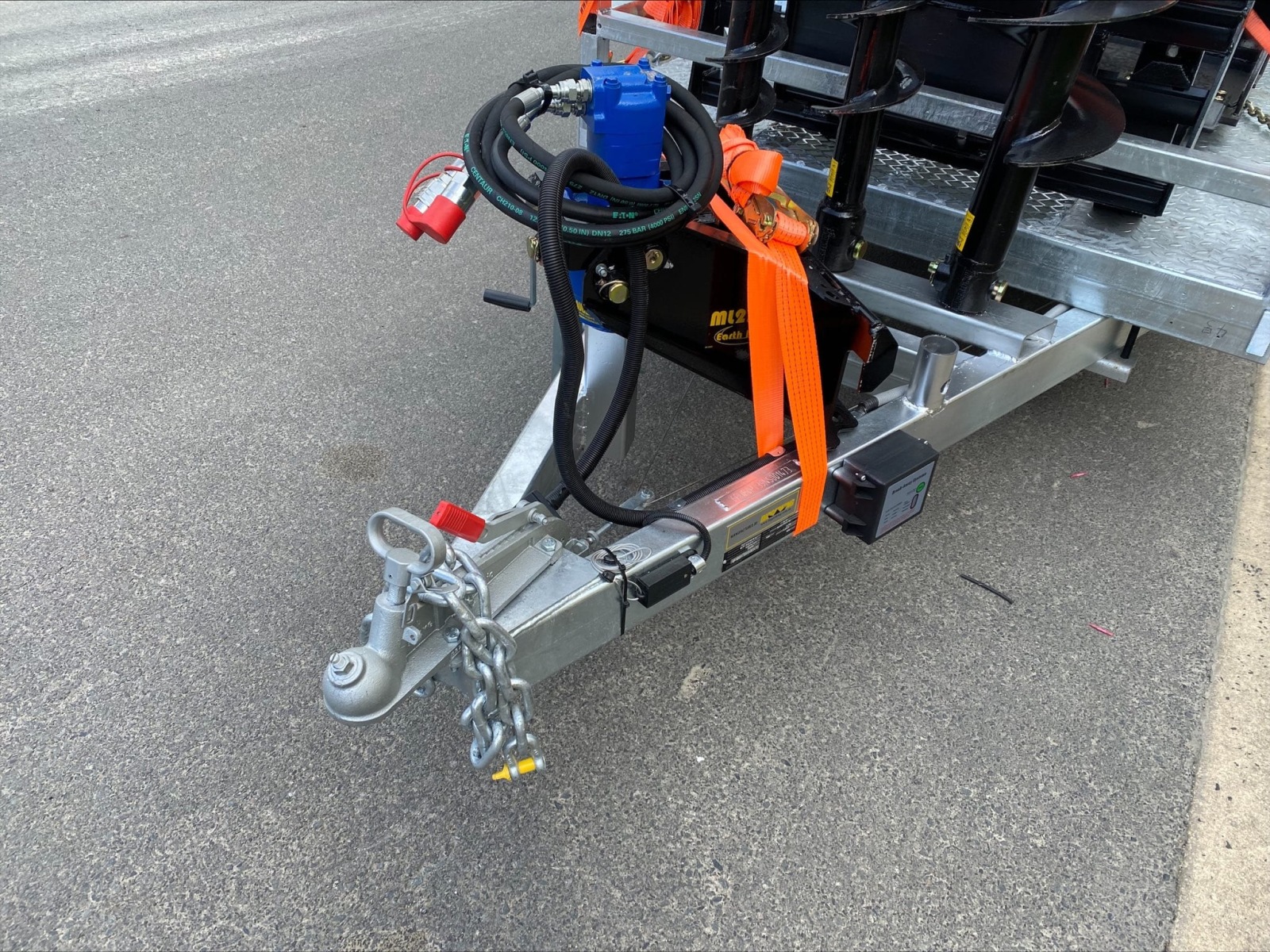

  •  Trailer Dimensions – 3900 mm (L) plus 1400 for draw bar x 2025 wide x 505 mm (H)
  •  Warranty – 12 months parts and labour, 36 month parts warranty

Tracked 40 Mini Loader 3900 Combo Only $56,990+GST or around $279 per week on finance



XL Digger Tipper Trailer Upgrade $6,990 + GST or around $35 per week on finance

Upgrade your standard trailer package to the XL digger tipper including:
  • Specialised removable implement rack – easy to lift out implement rack without having to reach over or remove the cage every time you need to change implement on site
  • Removeable cage – allows you to easily unbolt the steel cage so you can use your trailer at 2 different heights, depending on your job
  • Built in ramps – stored underneath the trailer for simple loading and unloading of your machine
  • Remote controlled hydraulic tipper with 5 stage ramp – heavy duty tipper with easy to access hydraulic lines, battery and remote so maintenance is as simple as possible
  • Extra heavy duty reinforced floor – allows you to tow your machine and implements safely and easily, or use the trailer for tipping dirt, timber, gravel etc
  • Hot dipped galvanised steel trailer – ensuring longer lifespan of your trailer as we only build premium hot dipped galvanised steel

Full specs and video tour of the XL Digger Tipper Trailer

XL Digger Tipper Trailer Upgrade $6,990 + GST or around $35 per week on finance


You can view all Digger King diggers online by registering to watch the video, or view them in person at our 800 sqm factory and showroom, located in South Murwillumbah, just 15 minutes south of the Gold Coast – but please call to book a time first. All diggers are on display

Delivery at cost or you can pick up.
We organise custom pricing including the attachments you require in your package, then raise your invoice so everything is clear for you. Once you are happy with everything, you either pay your deposit to go into production, with your balance due once production is complete and your digger is ready for delivery, or if you are applying for finance, you will deal with the finance broker directly to get your loan approved.

Please note: The finance is via a broker; the criteria for applicants is that you need to be a permanent resident or citizen, and either working PAYG, or have had income on an ABN either as a sole trader or through your company.  Unfortunately Centrelink and Disability Pension do not qualify for finance.

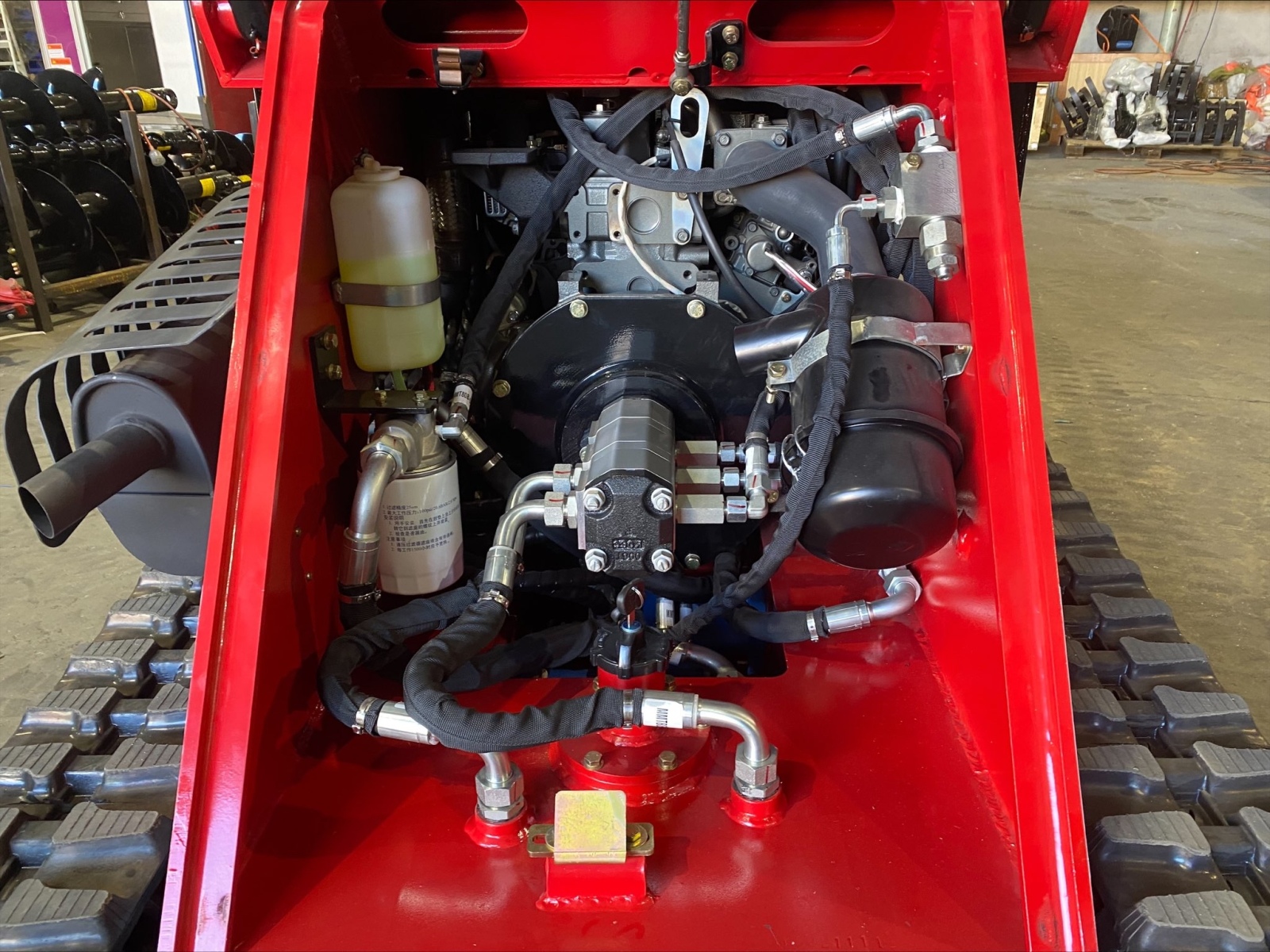

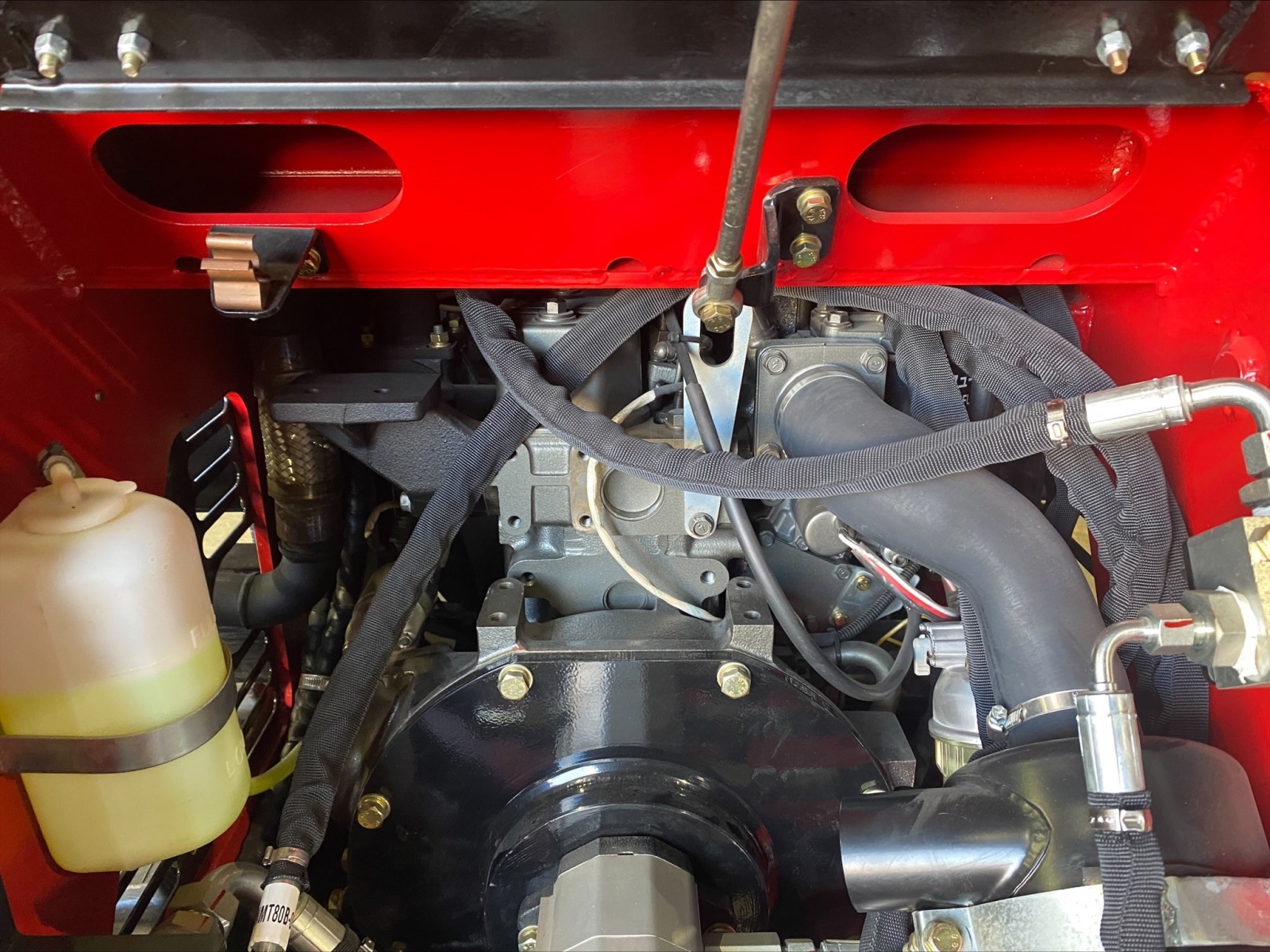

Engine

Engine Make Yanmar
Fuel Type Diesel
Rated Power 35 hp (26 kw)
Rated Speed 3000 RPM
Electrical 12V
Cylinder 3 Cylinder

Hydraulic System

Pump Brand Permco (USA) x 3
Valve brand Hydra Control (Italy)
Pressure 2610 PSI (180 Bar)
Flow 51 L/Min
Cooler Alloy Radiator
Motor Eaton (USA)

Driving System

Motor Brand Eaton (USA)
Pressure 2610 PSI (180 Bar)
Flow 24 L/Min
Speed 5 Km/h
Pump Brand Permco (USA)

Aux Circuit

Valve Brand Hydra Control (Italy)
Pressure 2610 PSI (180 Bar)
Flow 27 L/Min

Fluid Capacities

Fuel 30 L;
Hydraulic Oil 30 L
Engine Oil 5.5 L

Specifications

Load capacity – 450 kg
Weight – 1600 kg
Dimensions – 2519mm (L) x 1084mm (W) x 1415mm (H)
4 in 1 Bucket – 1110mm wide
Warranty – 12 month parts and labour, 36 month parts warranty

DIMENSIONS KING T40





T40 Mini Loader Package Only $34,990+GST or around $169 per week on finance

T40 Mini Loader and Trailer Premium Package $41,990+GST or around $209 per week on finance

T40 Mini Loader and 3900 Trailer Combo Package $56,990+GST or around $279 per week on finance
